Illumination system for reproducing the color temperature range of solar light for illuminating exhibits
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 13, 2019
Grant Date -
Jan 11, 2018
app pub date -
Sep 22, 2017
filing date -
Mar 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

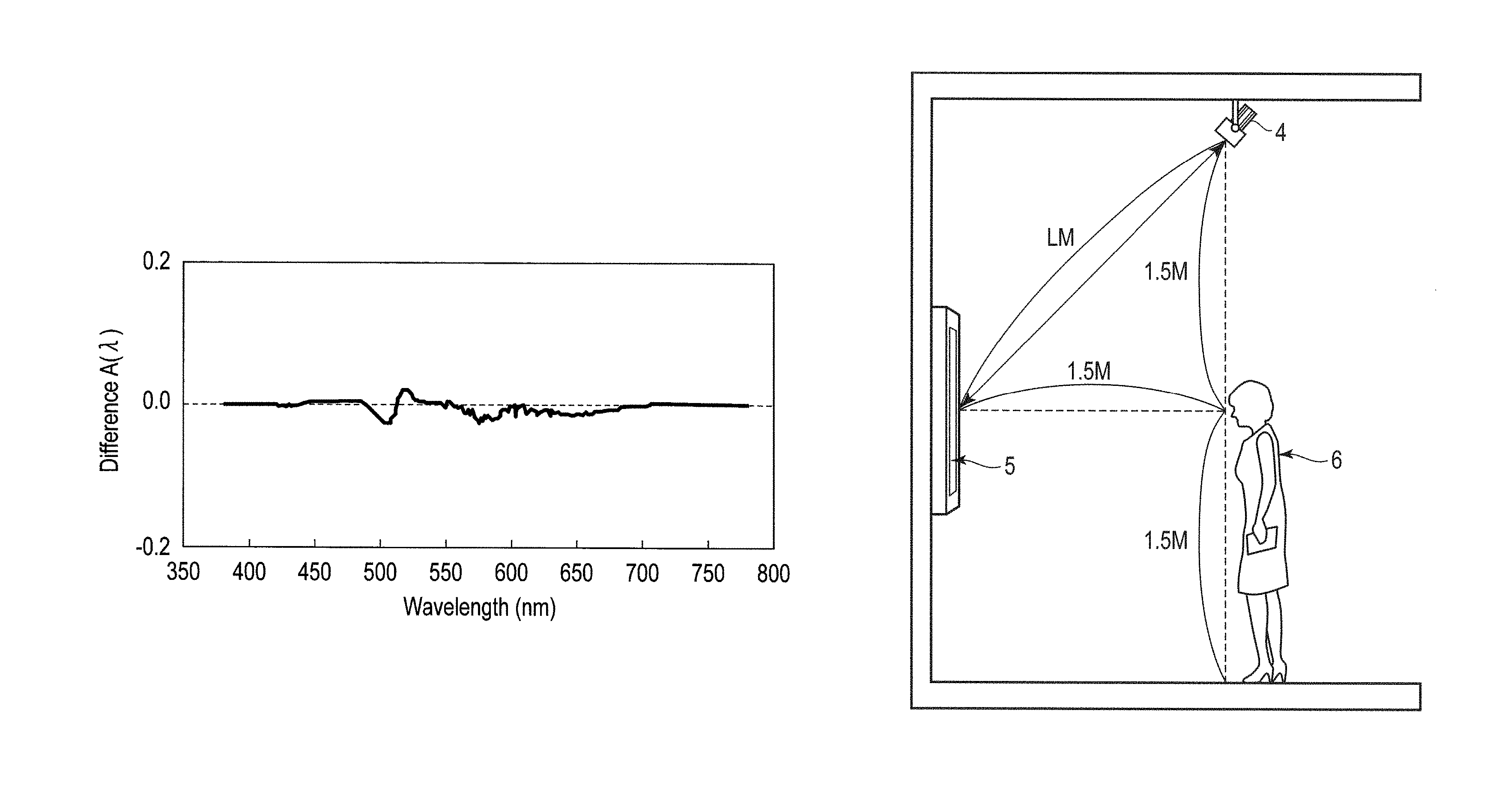

According to one embodiment, an illumination system includes a plurality of white light sources that satisfies −0.2≤[(P(λ)×V(λ))/(P(λ max 1)×V(λ max 1))−(B(λ)×V(λ))/(B(λ max 2)×V(λ max 2))]≤+0.2 where P(λ) is an emission spectrum of a white light source having a specific color temperature, B(λ) is an emission spectrum of black body radiation having a corresponding color temperature, V(λ) is a spectrum of spectral luminous efficiency, λ max 1 is a wavelength at which P(λ)×V(λ) becomes maximum, and λ max 2 is a wavelength at which B(λ)×V(λ) becomes maximum. The respective white light sources have different color temperatures, and light from the respective white light sources is irradiated from different directions to a target.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2016152913 | Mar 23, 2016 |
| EP | B1 | EP3276679 | Mar 23, 2016 |
| JP | B2 | JP6367471 | Mar 23, 2016 |
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 13, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 13, 2031 |
