THROTTLE DEVICE AND REFRIGERATING CYCLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 5, 2016
filing date -
Feb 2, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

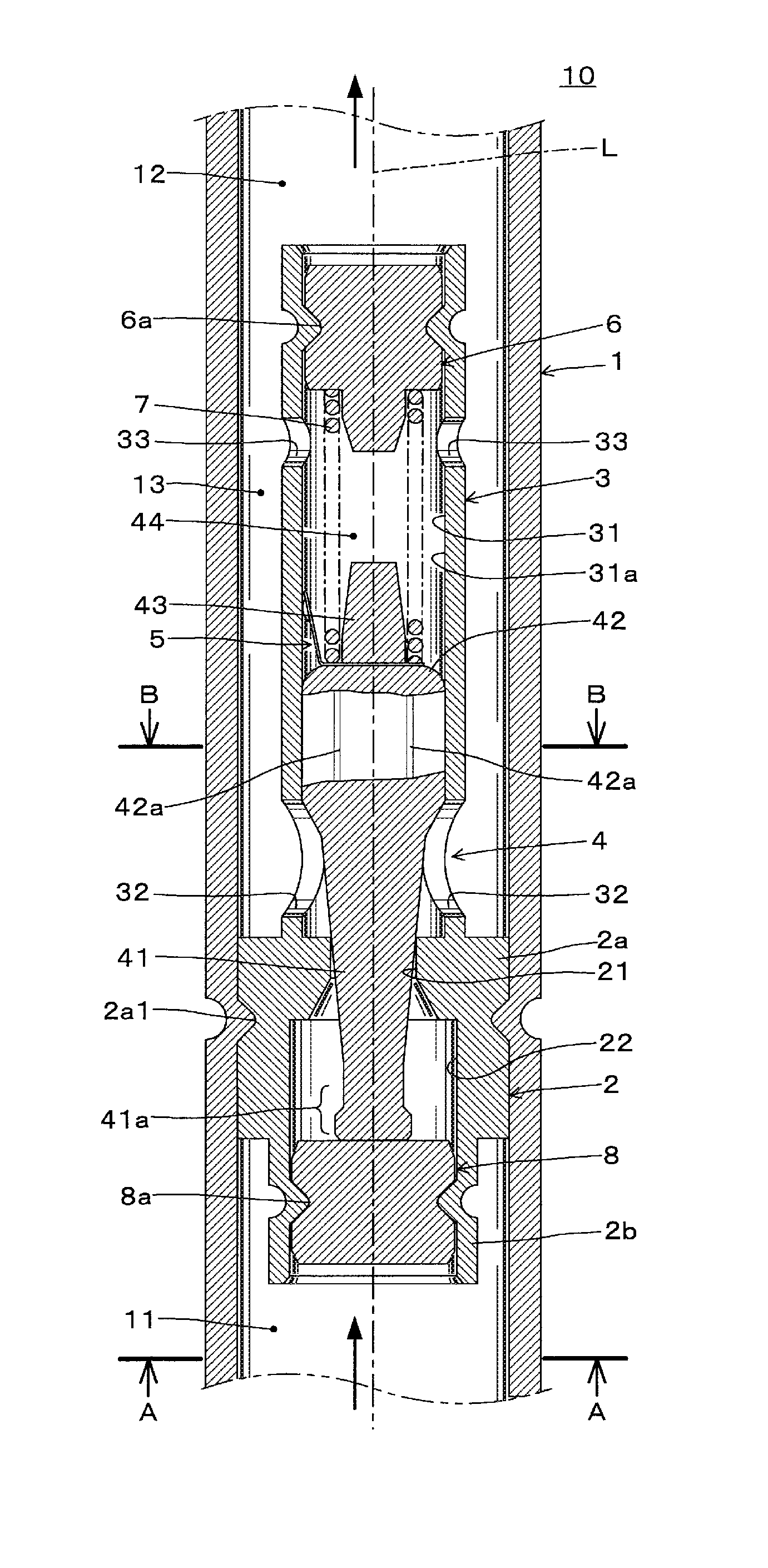

In a throttle device depressurizing and sending a refrigerant condensed by the condenser to the evaporator, hunting of a needle valve is prevented and hysteresis in differential pressure-flow rate characteristics in a high-pressure region is reduced. A valve seat member, in which a valve port is formed, and a cylindrical guide member, which is integral with the valve seat member, are provided in a cylindrical main body case configuring a primary chamber connected to the condenser and a secondary chamber connected to the evaporator. The needle valve and a coil spring energizing toward the valve port are provided in the guide member. A blade member is provided on a boss portion of the needle valve. A blade of the blade member abuts on a cylindrical guide surface of the guide member to apply sliding resistance.
First Claim
Other Claims data not available
