Gas turbine engine starter reduction gear train with geared rotary actuator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 12, 2019
Grant Date -
Jan 11, 2018
app pub date -
Jul 5, 2016
filing date -
Jul 5, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

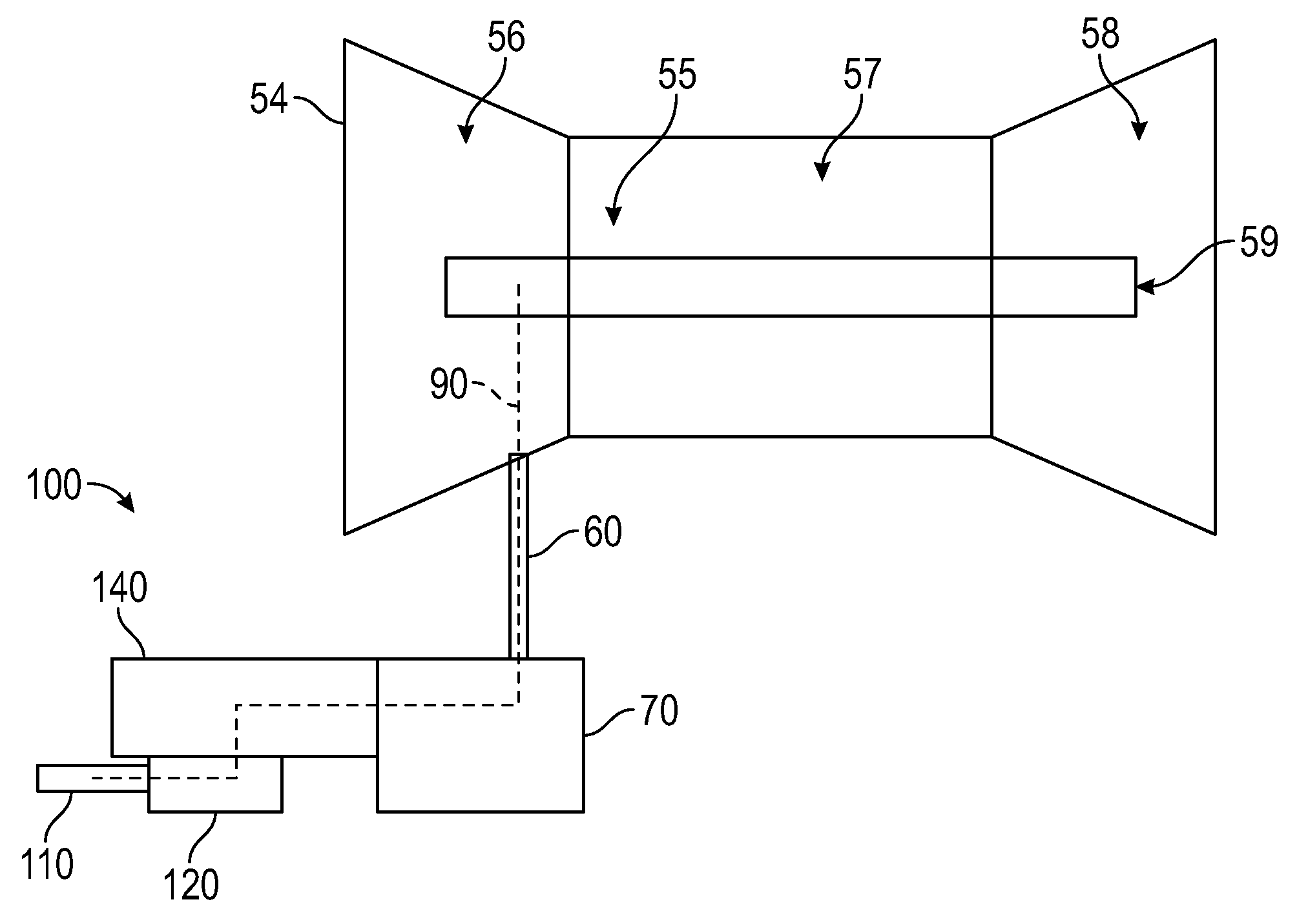

According to an aspect, a system for a gas turbine engine includes a reduction gear train operable to drive rotation of a starter gear train that interfaces to an accessory gearbox of the gas turbine engine. The reduction gear train includes a starter interface gear that engages the starter gear train and a core-turning clutch operably connected to the starter interface gear. The reduction gear train also includes a geared rotary actuator including a primary planetary gear system, where the geared rotary actuator is operably connected to the core-turning clutch. The reduction gear train further includes a secondary planetary gear system operably connected to the primary planetary gear system and a core-turning input. The system also includes a mounting pad with an interface to couple a core-turning motor to the core-turning input of the reduction gear train.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- F02C Class
- 1716 Applications Filed
- 1148 Patents Issued To-Date
- 66.90 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02C Class
- 29.20 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 12, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 12, 2031 |
