Sewing machine and non-transitory computer-readable medium
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 9, 2019
Grant Date -
Jan 11, 2018
app pub date -
Sep 25, 2017
filing date -
Jul 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

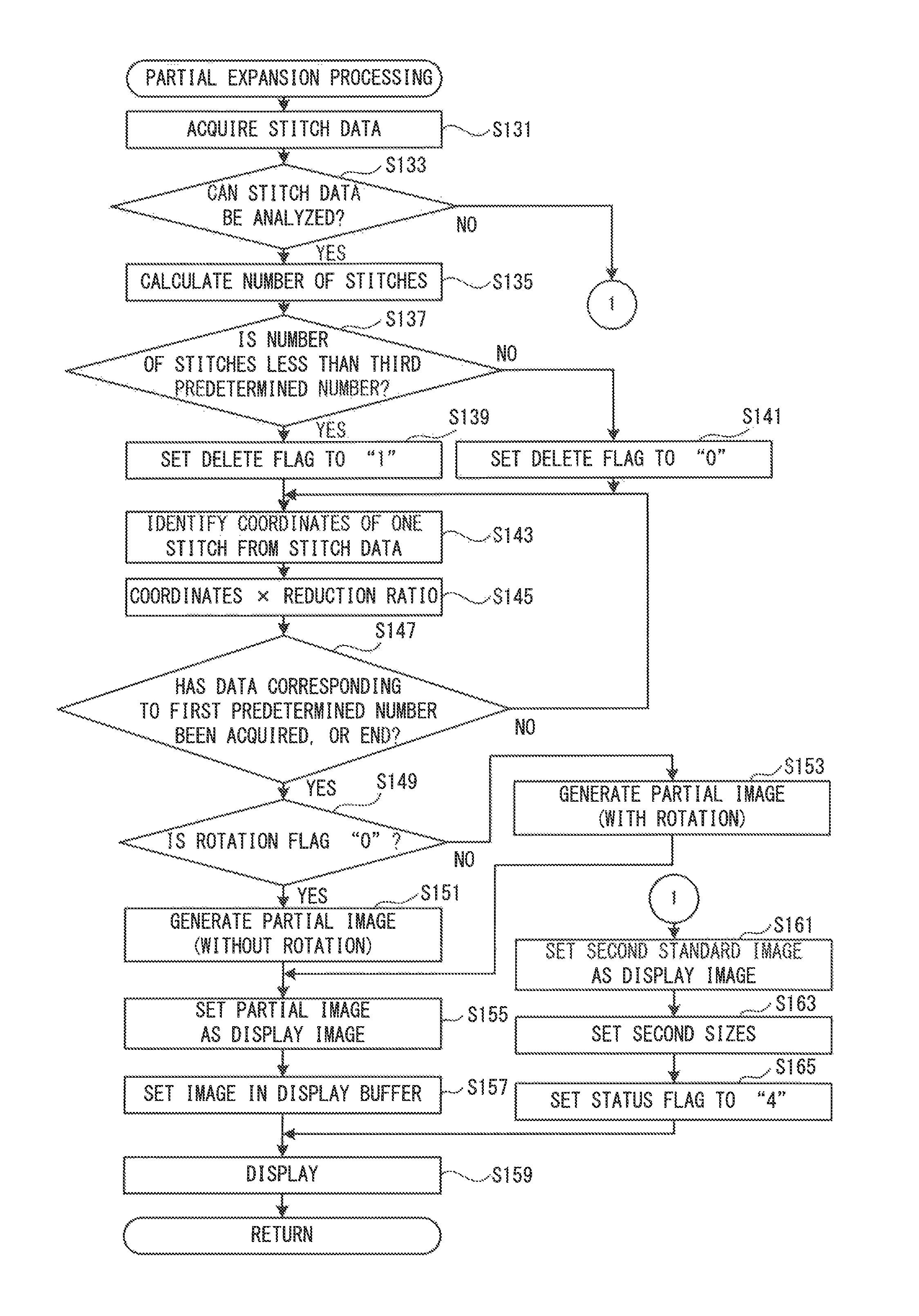

A sewing machine includes a sewing portion sewing an embroidery pattern on a cloth, a first storage portion storing the stitch data and pattern data, a display portion, a processor, and a memory storing computer-readable instructions. The computer-readable instructions, executed by the processor, includes first acquiring the stitch data and the pattern data, and first displaying, based on the pattern data, the pattern image on the display portion. The computer-readable instructions also includes, first generating a plurality of partial images representing a number of stitches corresponding to a first predetermined number, based on the stitch data, after the first displaying of the pattern image on the display portion, and second displaying, each time each of the plurality of partial images is generated by the first generating, the generated partial image on a portion of the pattern image displayed by the first displaying that corresponds to the generated partial image.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- D05C Class
- 77 Applications Filed
- 58 Patents Issued To-Date
- 75.33 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- D05C Class
- 30.43 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 9, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 9, 2031 |
