Aircraft installation arrangement and installation system for mounting an overhead luggage compartment
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 21, 2020
Grant Date -
Jan 11, 2018
app pub date -
Jun 30, 2017
filing date -
Jul 5, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

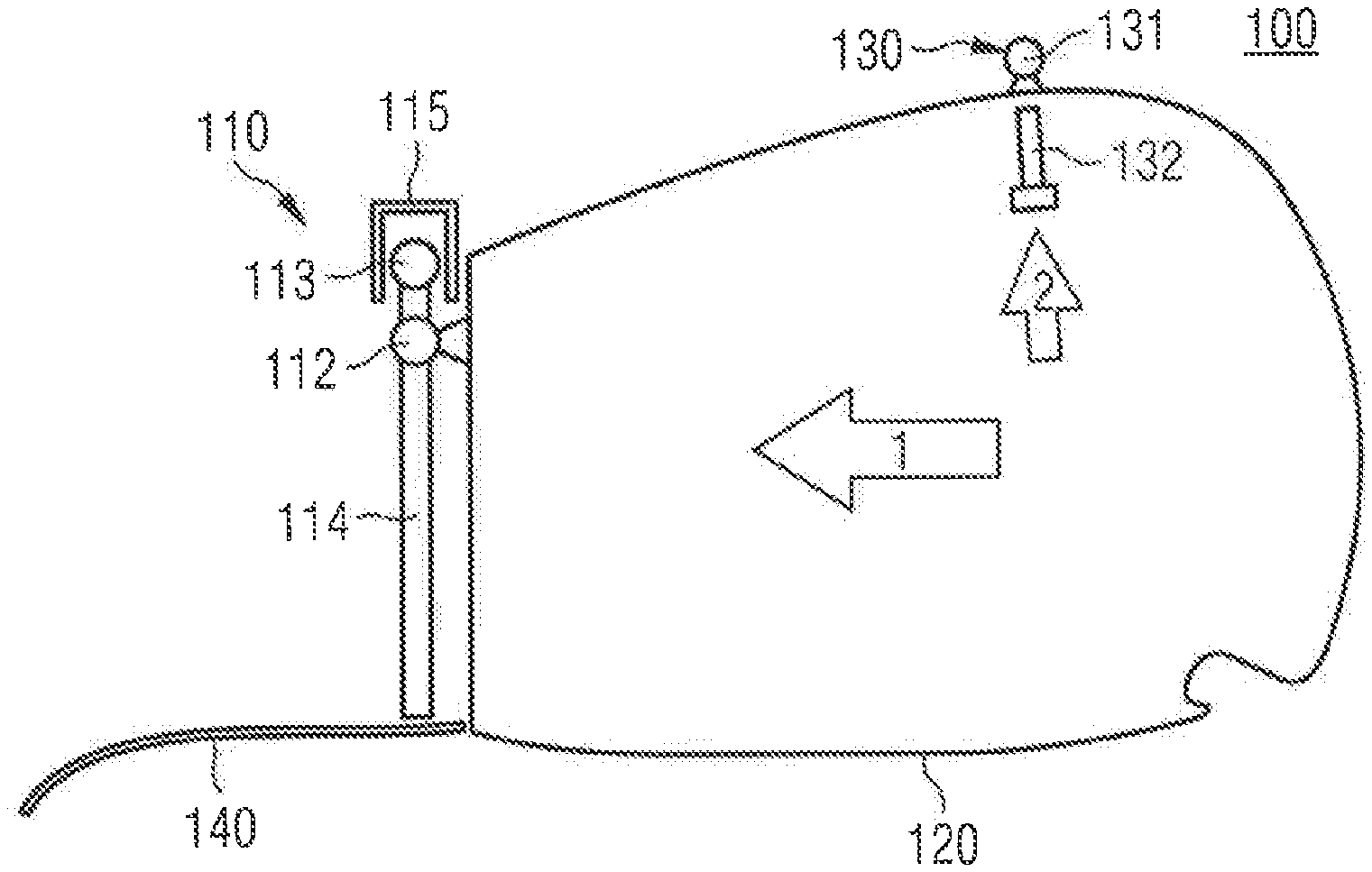

An installation arrangement comprising a first carrier element configured to fasten an overhead luggage compartment thereto. The first element includes a main body comprising a tubular opening, a barrel-shaped component arranged inside the tubular opening, the component comprising a through hole extending substantially perpendicular to a component longitudinal axis, and a fastener to fasten a portion of the overhead luggage compartment to the main body of the first carrier element. A second carrier element of the arrangement is a rotary joint connectable to an installation rail, the rotary joint being movable around a longitudinal axis of the installation rail and an axis perpendicular to that longitudinal axis. The installation arrangement also comprises a rod configured to be coupled with the second carrier element and to fit inside the through hole, wherein the rod is connectable to the first carrier element when the rod is arranged inside the through hole.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B64D Class
- 2578 Applications Filed
- 1850 Patents Issued To-Date
- 71.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B64D Class
- 38.38 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 21, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 21, 2031 |
