Medical device having capacitive coupling communication and energy harvesting
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 6, 2021
Grant Date -
Jan 11, 2018
app pub date -
Aug 25, 2017
filing date -
Jul 23, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

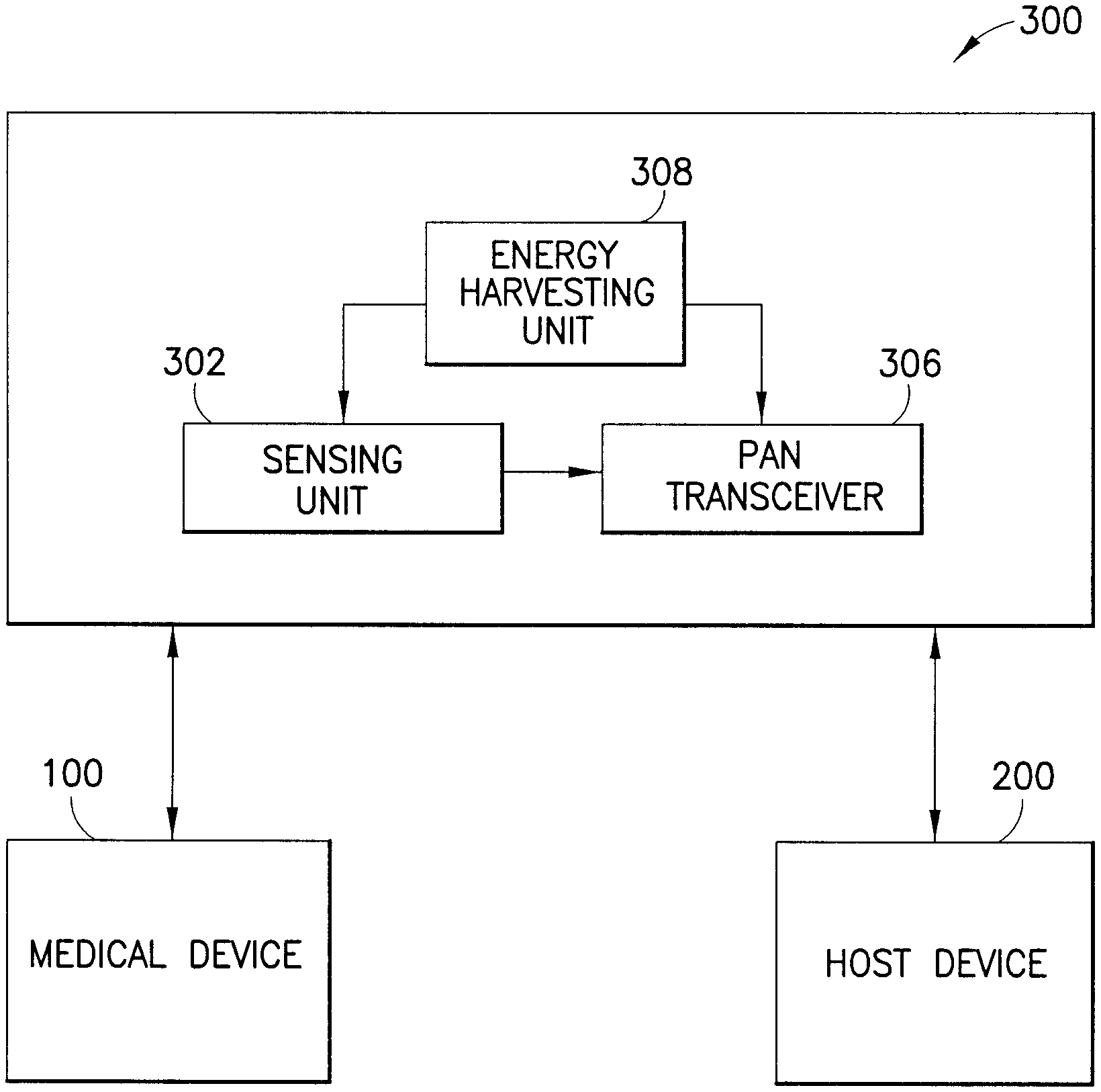

Provided is a wearable, self-contained drug infusion or medical device capable of communicating with a host controller or other external devices via a personal area network (PAN). The medical device utilizes a PAN transceiver for communication with other devices in contact with a user's body, such as a physiological sensor or host controller, by propagating a current across the user's body via capacitive coupling. The wearable nature of the medical device and the low power requirements of the PAN communication system enable the medical device to utilize alternative energy harvesting techniques for powering the device. The medical device preferably utilizes thermal, kinetic and other energy harvesting techniques for capturing energy from the user and the environment during normal use of the medical device. A system power distribution unit is provided for managing the harvested energy and selectively supplying power to the medical device during system operation.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2017 Application Filing Year
- H04B Class
- 10342 Applications Filed
- 8280 Patents Issued To-Date
- 80.07 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04B Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 6, 2029 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 6, 2033 |
