Abstract

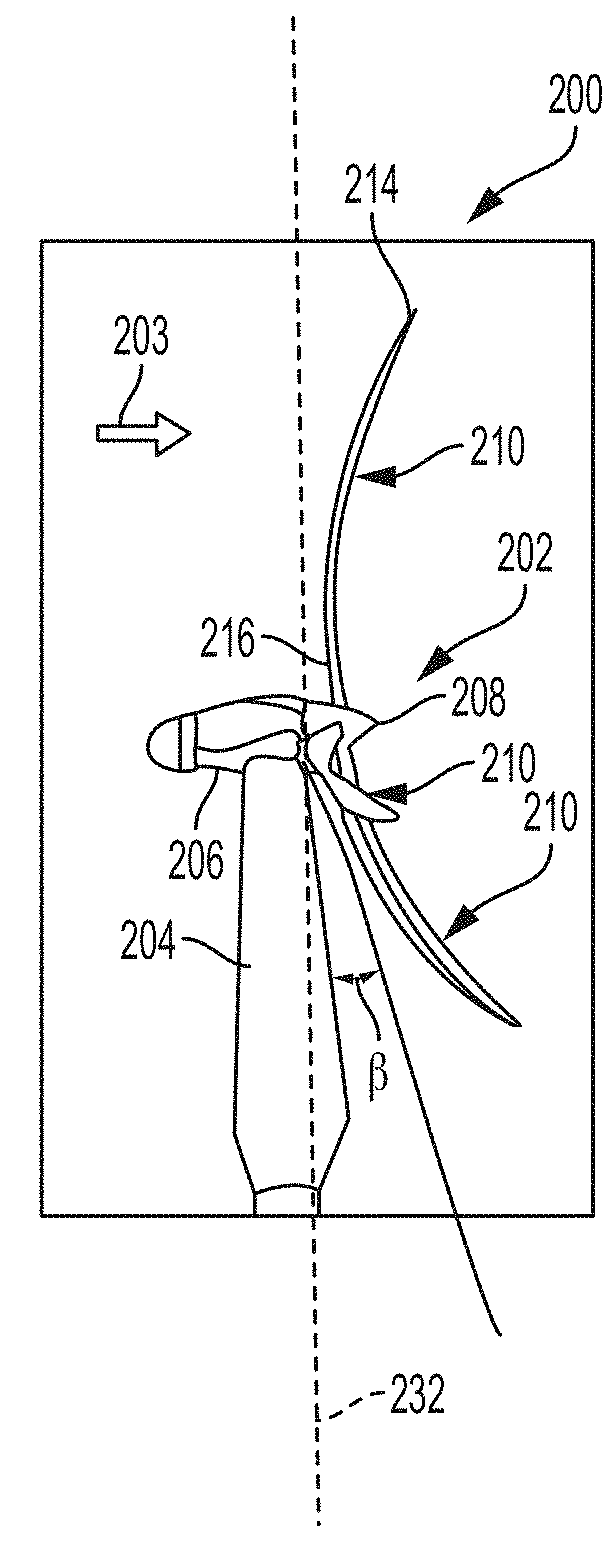

A downwind morphing rotor that exhibits bending loads that will be reduced by aligning the rotor blades with the composite forces. This reduces the net loads on the blades which therefore allow for a reduced blade mass for a given maximum stress. The downwind morphing varies the amount of downstream deflection as a function of wind speed, where the rotor blades are generally fully-aligned to non-azimuthal forces for wind speeds between rated and cut-out conditions, while only the outer segments of the blades are generally aligned between cut-in and rated wind speeds. This alignment for large (MW-scale) rated turbines results in much larger downstream deflections of the blades at high wind speeds as compared to that of a conventional rigid single-piece upwind turbine blade. Also provided is a pre-aligned configuration rotor whereby the rotor geometry and orientation does not change with wind speed, and instead is fixed at a constant downwind deflection consistent with alignment at or near the rated wind speed conditions. Also provided is a twist morphing rotor where the airfoil-shapes around the spars twist relative to the wind due to aerodynamic forces so as to unload the rotors when there is a gust. This can help reduce unsteady stresses on the blade and therefore may allow for reduced blade mass and cost. The twist morphing rotor may be combined with either downwind morphing rotor or pre-alignment rotor.
