Oil cooling structure of engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 2, 2020
Grant Date -
Jan 4, 2018
app pub date -
Jun 9, 2017
filing date -
Jun 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

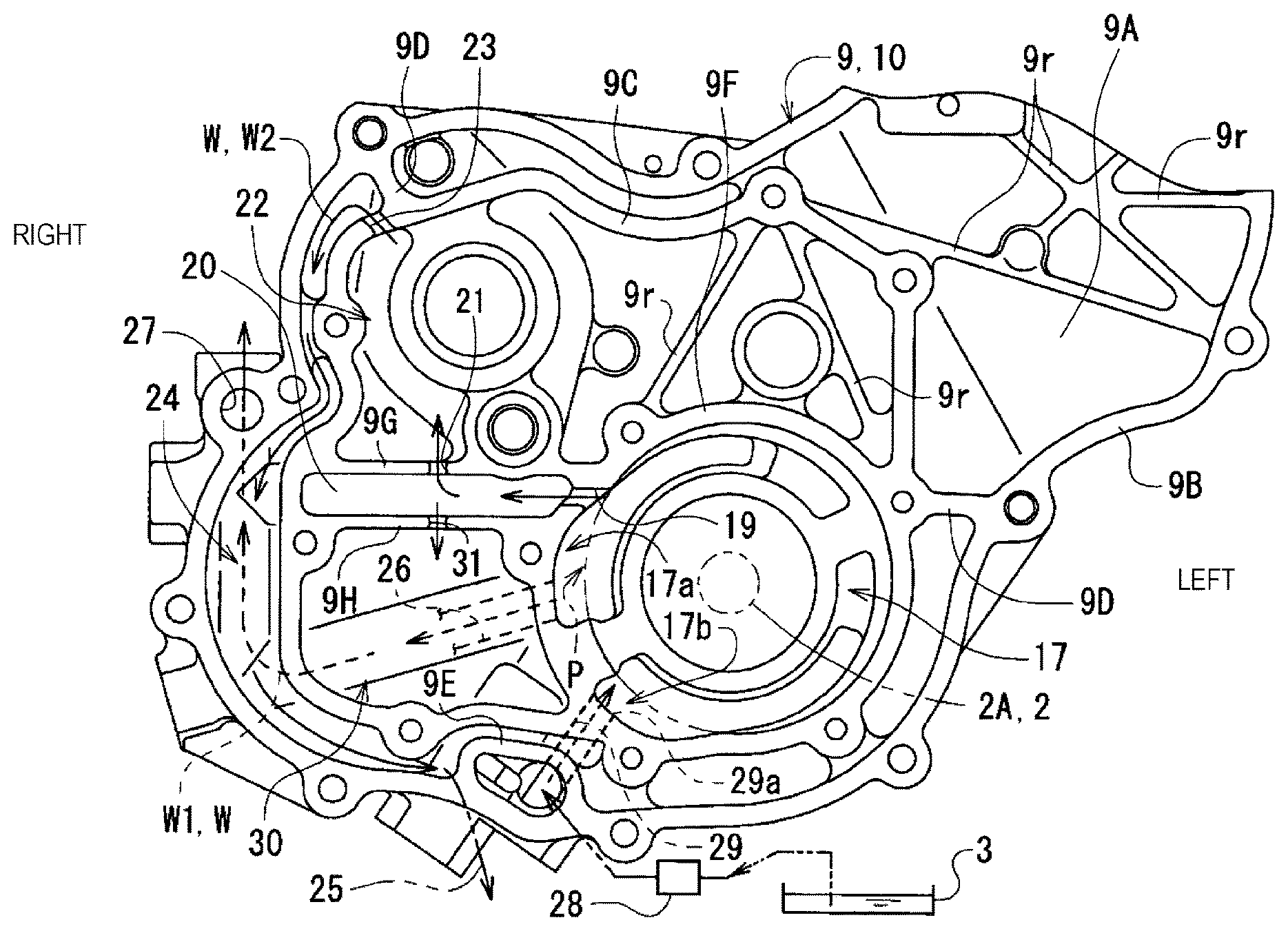

An oil cooling structure of an engine is provided that is capable of enhancing cooling performance of oil while preventing an increase in number of components or an increase in required space from being involved as much as possible. In an oil cooling structure of an engine in which a transmission case is attached to one end wall of an engine body, and a transmission mechanism for an accessory drive is provided in the transmission case, the transmission case is formed into a potlid-shaped body having a plurality of rib walls along a front-rear direction, and is attached to an engine front wall with an engine cooling fan, and case inner chamber portions partitioned by the rib walls in the transmission case are configured as a transporting passage of oil circulated by an oil pump.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F01M Class
- 386 Applications Filed
- 305 Patents Issued To-Date
- 79.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F01M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 2, 2031 |
