An Impact Compactor, Compaction System and a Method of Obtaining Soil Strength
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 21, 2016
filing date -
Jan 21, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

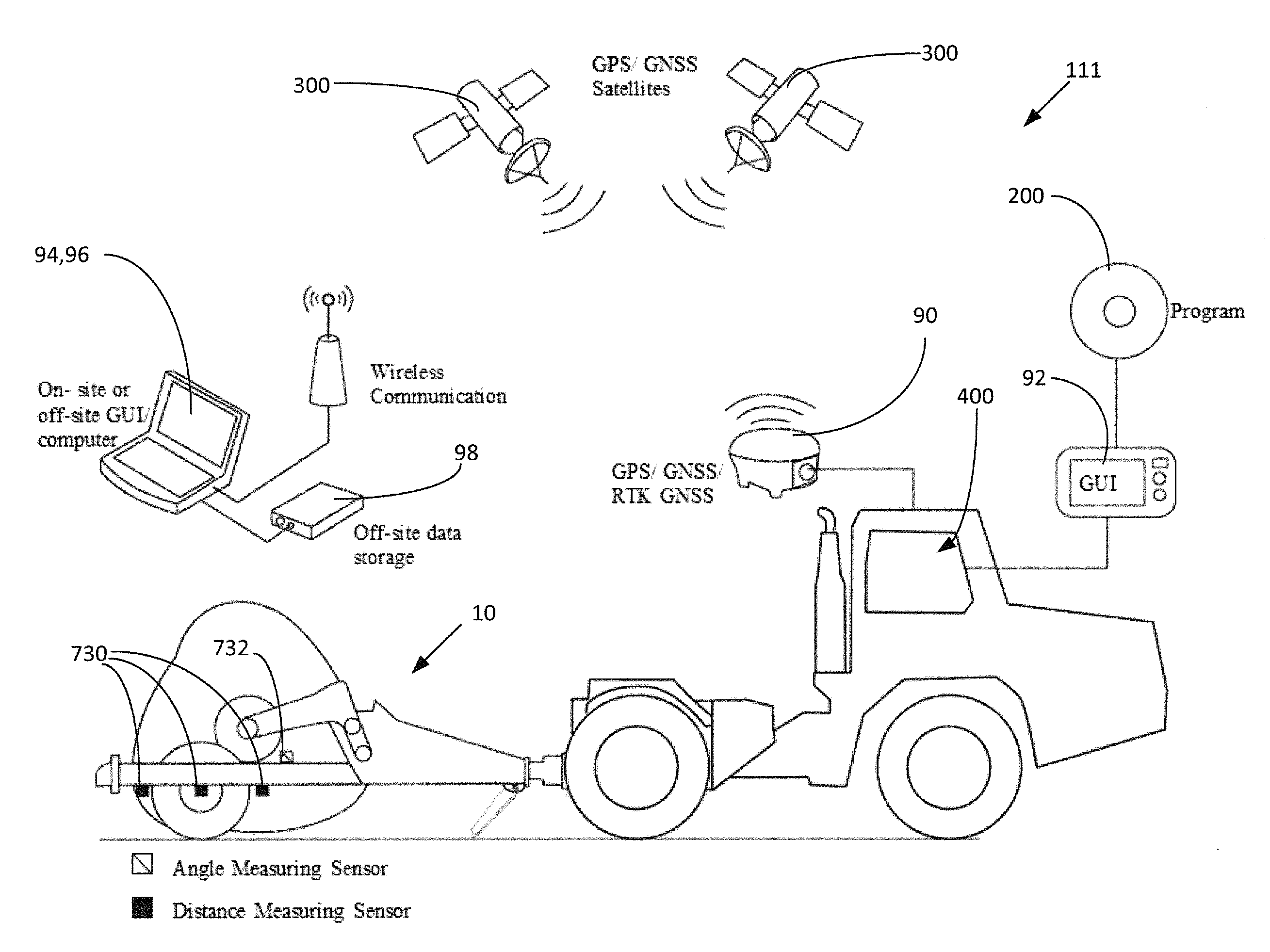

The invention relates to an impact compactor (10) and to a method and system of obtaining an indication of the soil strength of soil (100) by using an impact compactor (10). The impact compactor (10) includes a chassis 5 structure (12), at least one wheel (14) supportively mounted on the chassis structure (12), and at least one impact drum (16) which is displaceable relative to the chassis structure (12). The method includes travelling with the impact compactor (10) over a soil surface (100) while the drum (16) is in a raised position in which it is spaced from the soil surface (100) and 10 measuring, by using a measuring arrangement (20) which is connected to or forms part of the impact compactor (10), a rut depth (54) of a rut in the soil surface (100) which is formed by the wheel (14) as the impact compactor (10) travels over the soil surface (100).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G01N Class
- 40.30 % this patent is cited more than
- 7 Age
