Separator Having Excellent Heat Resistance and Electrolyte Wetting Properties
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 21, 2017
filing date -
Jun 23, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

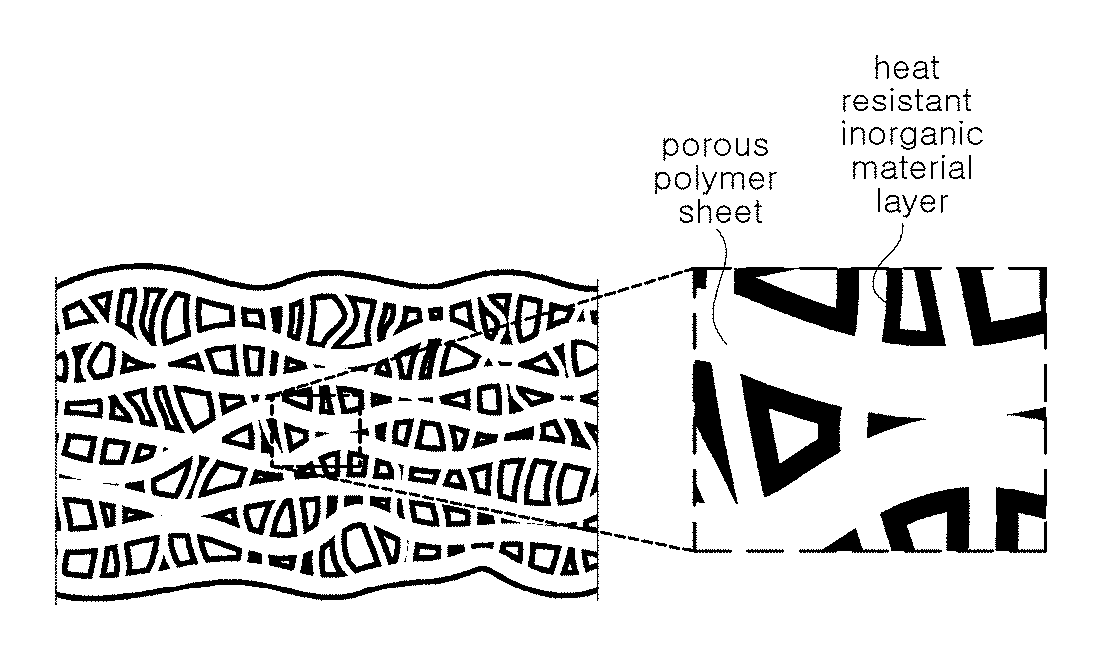

A separator for a battery interposed between a cathode and an anode, and a method of manufacturing the same are provided, the separator for a lithium ion secondary battery including a porous polymer sheet having a first surface and a second surface opposing the first surface, and in which a pore communicating the first surface and the second surface is formed, and a heat resistant inorganic material layer coating at least the first surface and a surface of the pore, and formed in an atomic layer deposition method, wherein the heat resistant inorganic material layer formed on the first surface or the second surface has a thickness of 20 nm to 100 nm, porosity of the separator after the heat resistant inorganic material layer is formed is 30% to 70%, and a gurley value is 100 s/100 ml to 1000 s/100 ml.
First Claim
Other Claims data not available
