2D Material Super Capacitors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 28, 2017
app pub date -
Aug 10, 2017
filing date -
Aug 3, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

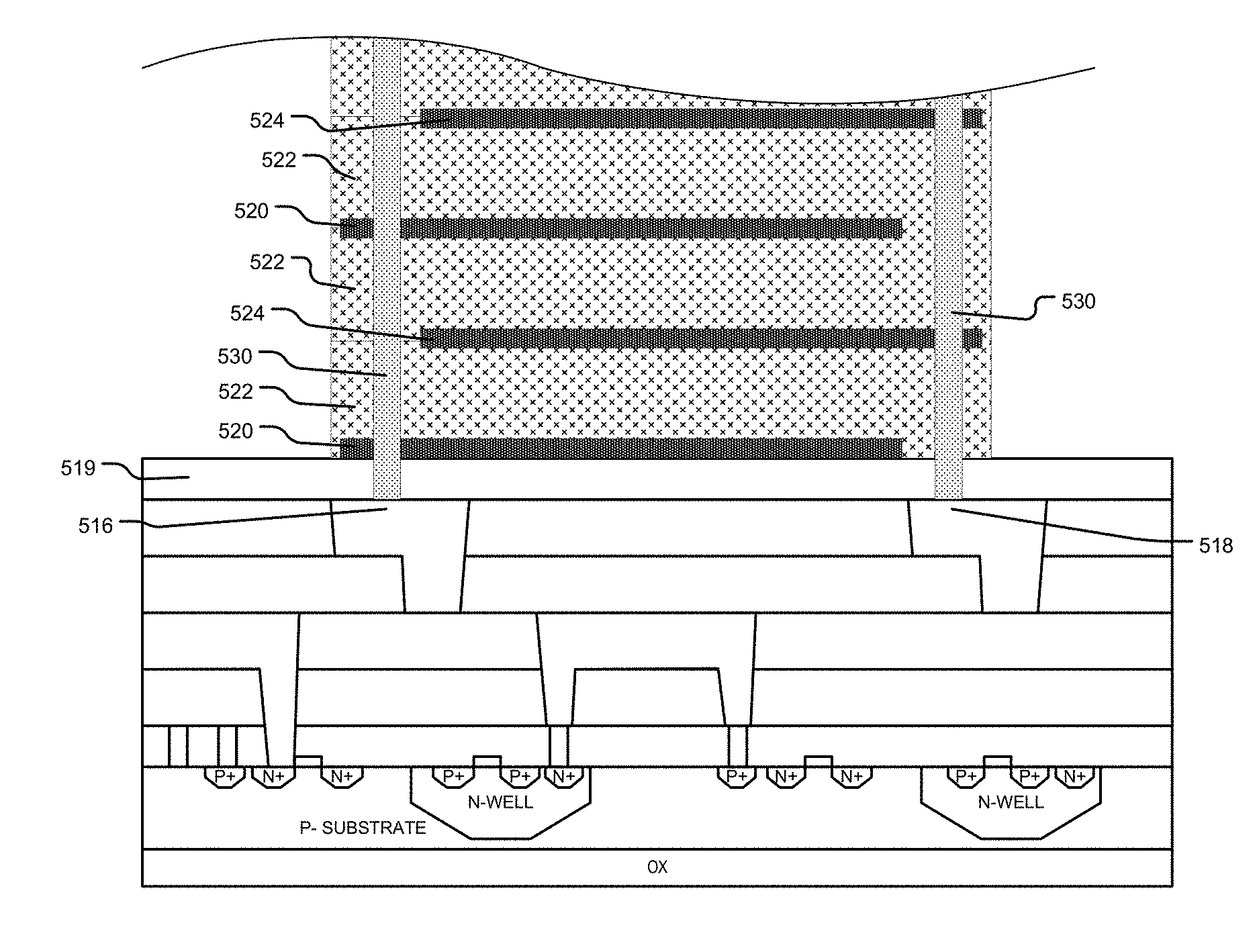

Devices and methods are described relating to capacitor energy storage devices that are small in size and have a high energy stored to volume ratio. The capacitor devices include 2D material electrodes. The capacitor devices offer very fine granularity with high stacking possibilities which may be used in super capacitors and capacitor arrays. The devices include interleaved laminations 2D material electrode layers, for example graphene, and dielectric layers, for example Hafnium Oxide. In an embodiment a capacitor device includes 10,000 layers of interleaved graphene separated by 9,999 layers of HfO. Odd layers of the graphene are electrically connected to a first terminal and even layers of graphene are electrically connected to a second terminal of the capacitor device.
