ARRAY SUBSTRATE, MANUFACTURING METHOD THEREOF AND DISPLAY DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 4, 2016
filing date -
Jan 4, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

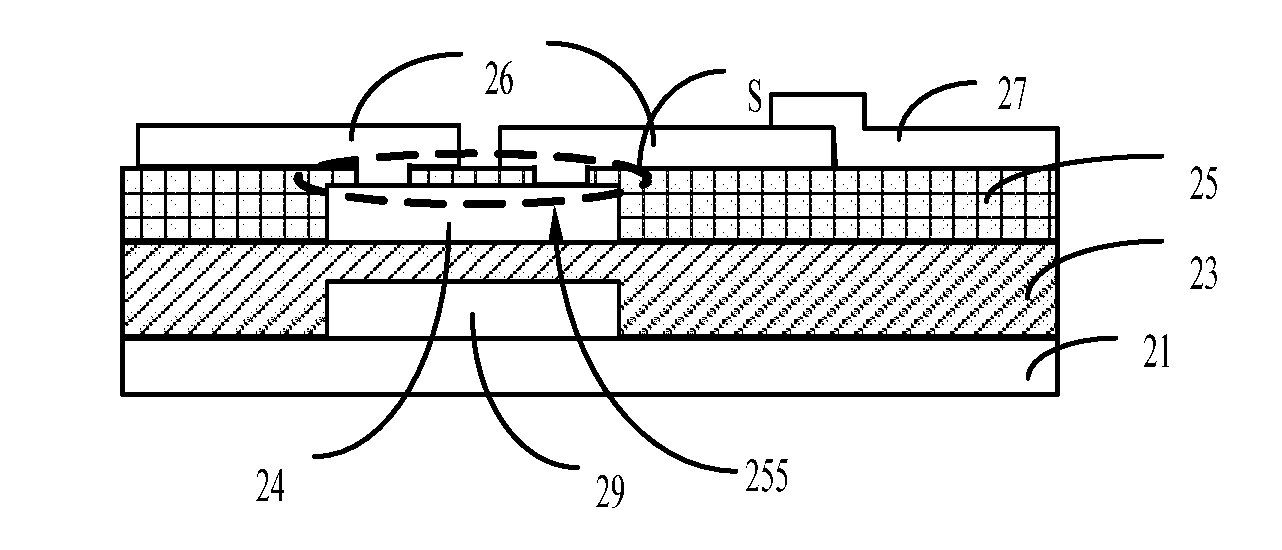

Disclosed are an array substrate, a manufacturing method thereof, and a display device. The array substrate includes a gate insulating layer, an active layer, source-drain electrodes, a first conductive layer and an isolation insulating layer), the source-drain electrodes are in contact with the active layer, the gate insulating layer is located on a surface of the active layer, the isolation insulating layer) is located on another surface of the active layer, and the isolation insulating layer at least includes a first hollow structure in a contacting region of the active layer and the source-drain electrodes; the isolation insulating layer is configured to isolate residue of the active layer located outside a region where the first hollow structure is located from contacting the first conductive layer.
