Binocular device comprising a monocular display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 15, 2020
Grant Date -
Dec 28, 2017
app pub date -
Dec 30, 2015
filing date -
Dec 31, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

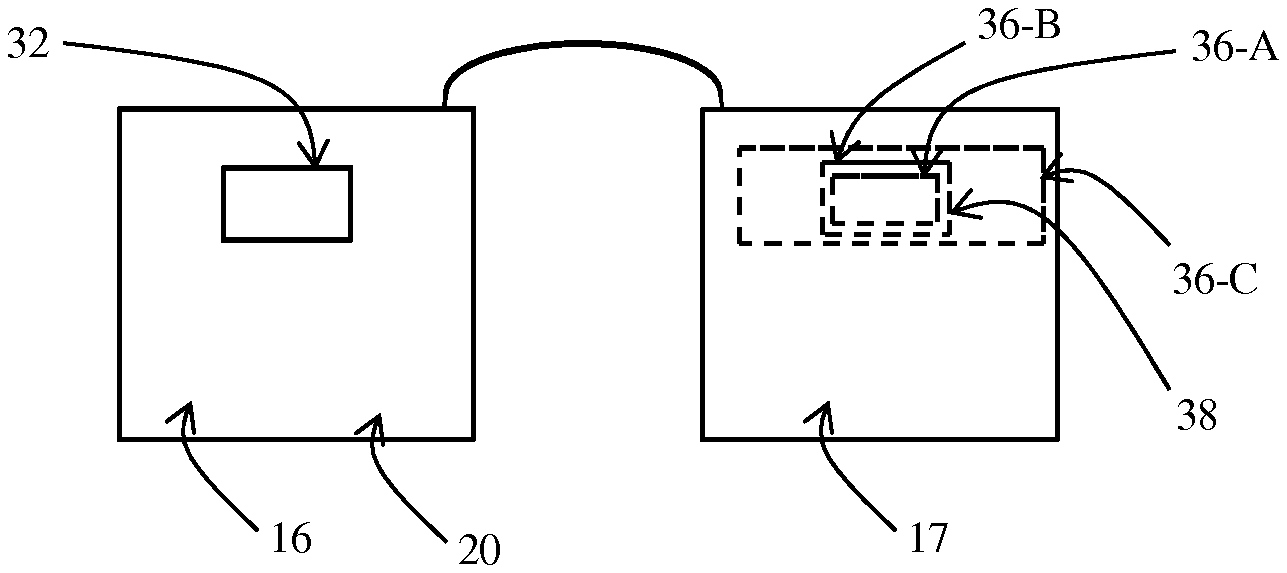

A binocular device adapted to a wearer comprising: a first lens and a second lens, respectively designed to be placed in front of first and second eyes of the wearer, the first lens comprising at least a back face, a monocular display device designed and arranged to display a virtual picture towards the first eye of the wearer, the virtual picture being transmitted through the back face of the first lens defining a display area on the back face, wherein: the second lens comprises an adapted area and a corresponding area, the corresponding area is the area scanned by the second eye of the wearer when the first eye scans the virtual picture through the display area, and the adapted area is arranged so that the adapted area overlaps at least a part of the corresponding area, and the adapted area is configured to be obscured.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G02B Class
- 9095 Applications Filed
- 7457 Patents Issued To-Date
- 82 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 15, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 15, 2032 |
