PRESENTING OBJECTS IN A SONAR IMAGE OF AN UNDERWATER ENVIRONMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 18, 2017
filing date -
Apr 20, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

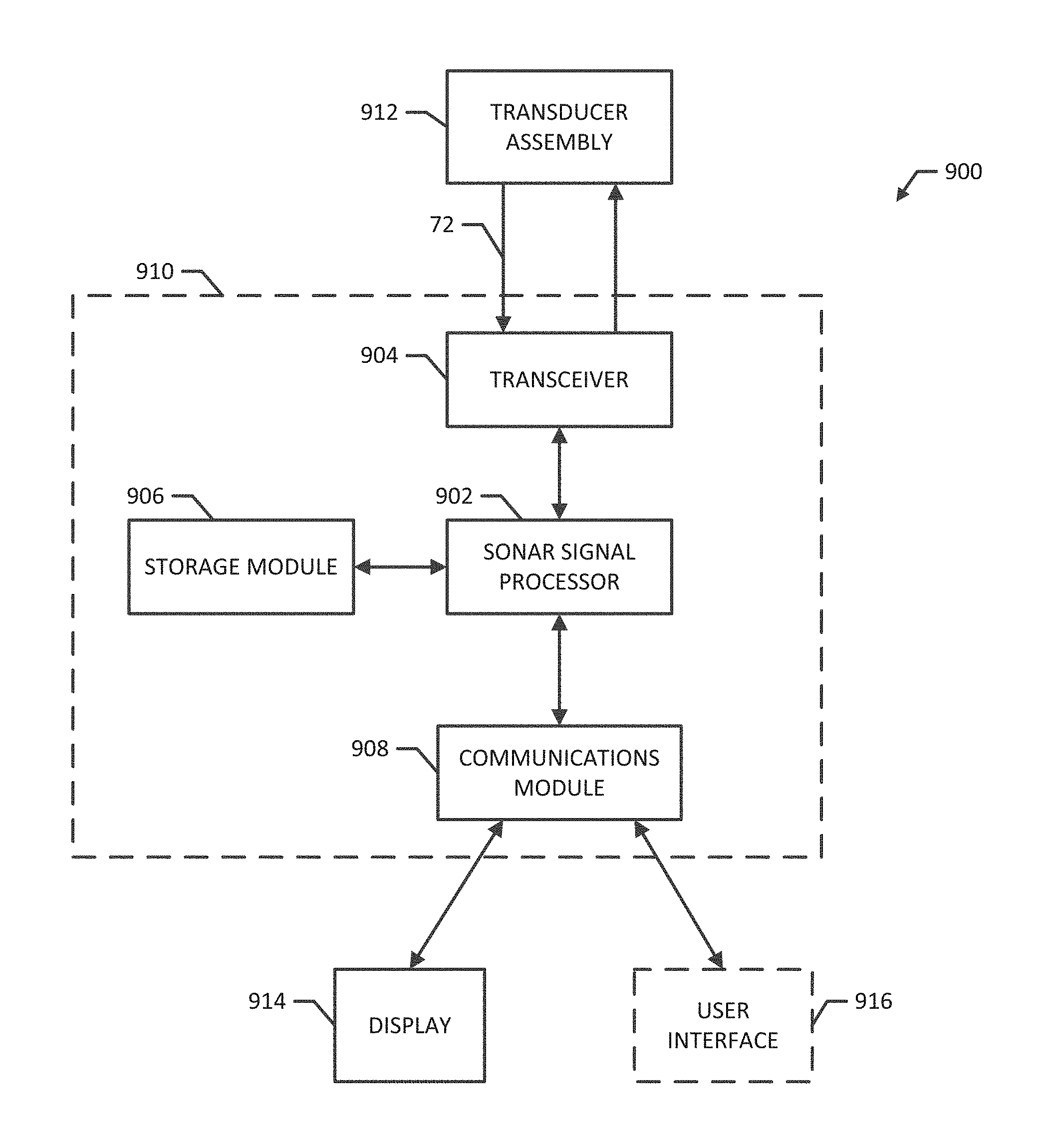

A sonar system is provided including a display screen, a transducer assembly including at least one transducer that is configured to emit one or more sonar signals into an underwater environment and receive sonar return data reflected from one or more objects, and a sonar module configured to generate a 3D matrix based on the sonar return data including a plurality of sonar returns that are each defined by a 3D positional value, determine a group of the plurality of sonar returns associated with an object, assign a predetermined icon to the determined group, and generate and display 3D image of the sonar return data. The predetermined icon is positioned within the 3D image at a position that corresponds to the position of the determined group such that the position of the predetermined icon corresponds to the position of the object.
