Torsional Measurements Using an Optical non Contact Method

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20170370787A1
SERIAL NO

15194838

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

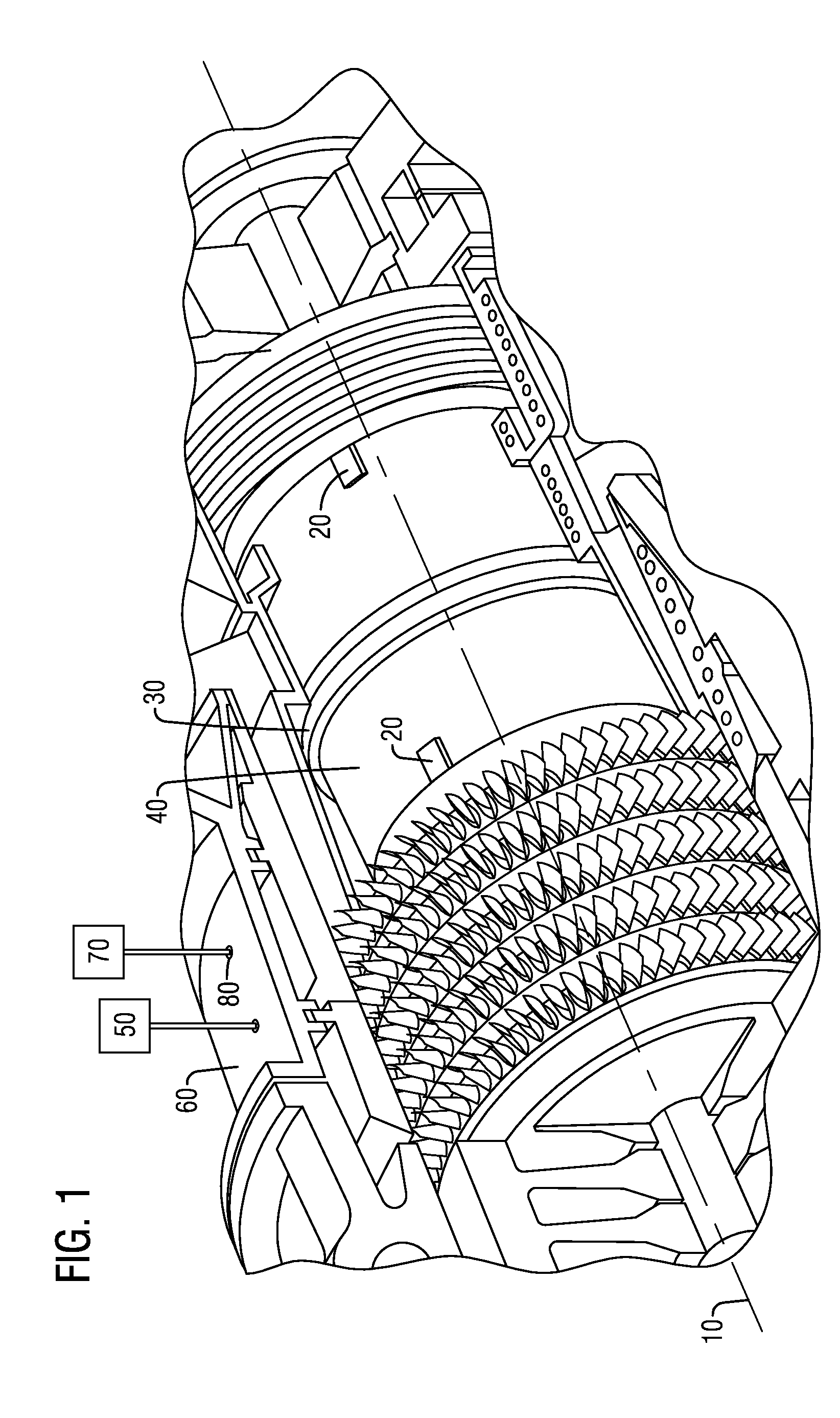

A method to determine a characteristic on a turbine shaft is provided. The method includes disposing a reflective/absorptive target comprising a plurality of markings in a geometric pattern on the component. A light emitting source will then be focused onto a predetermined starting position on the target. The plurality of markings will linearly traverse across the light emitting source from the predetermined starting position. The reflected/absorbed light pulses from the plurality of markings will be detected and recorded. From the timing of the recorded light pulses, the characteristic of the component is determined. The geometric pattern comprises at least two non-parallel lines and a third line including the predetermined position. A system to determine a characteristic on a turbine shaft as well as a method to determine the torsional deflection of a turbine shaft are also provided.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
SIEMENS ENERGY INC4400 ALAFAYA TRAIL ORLANDO FL 32826
