Vehicle door mirror including vibration suppressing support
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2020
Grant Date -
Dec 28, 2017
app pub date -
Jan 8, 2016
filing date -
Jan 23, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

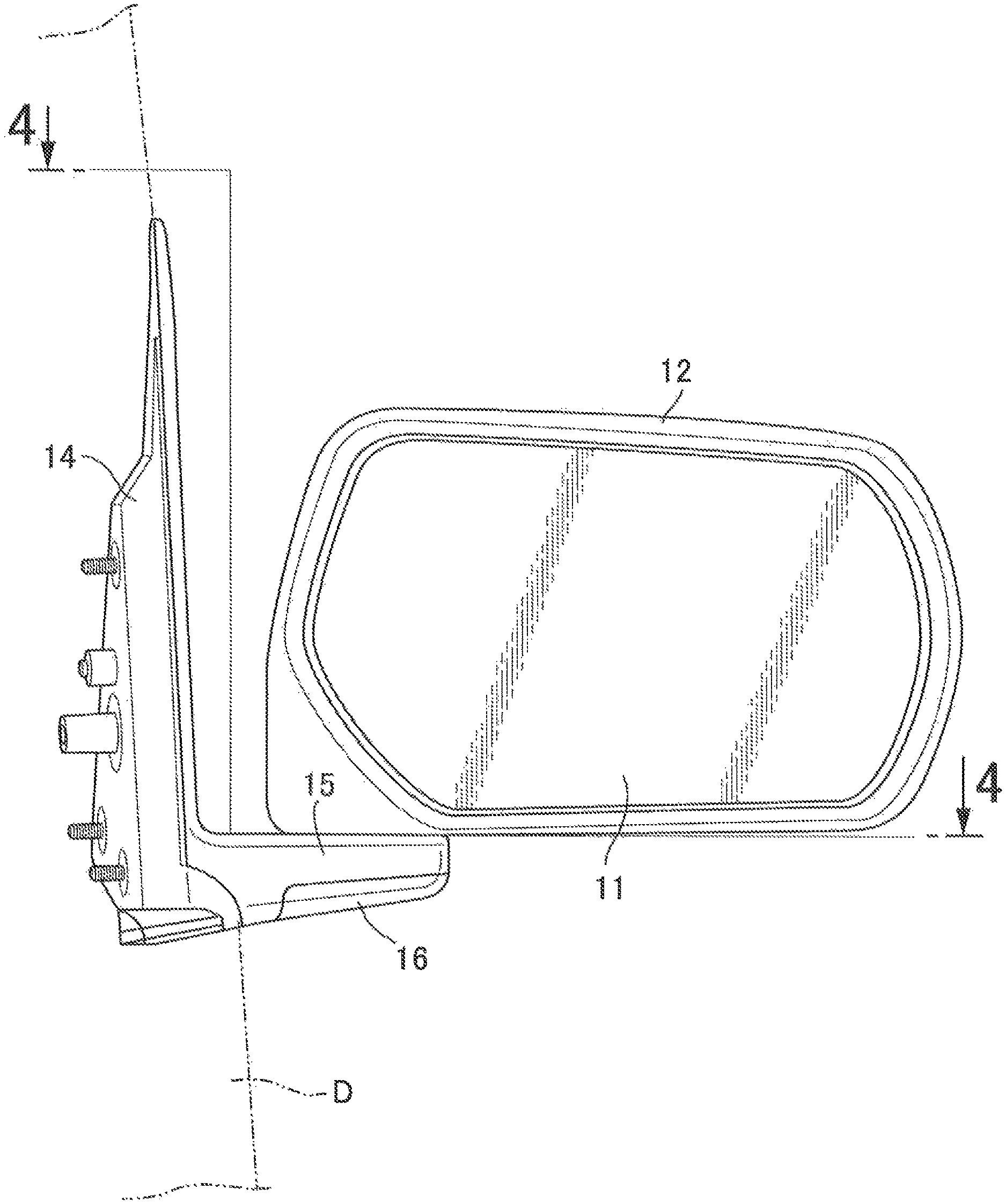

A vehicle door mirror includes a base member mounted on a side door while having plural mounting holes and plural insertion holes coaxially communicating with the mounting holes, and a mirror housing pivotably supported on a support shaft which has a plurality of bosses, each boss having a tubular portion and ribs extending along an axial direction of the tubular portion. Screw members are inserted through respective ones of the insertion holes and screwed into the tubular portions of the bosses respectively inserted into the mounting holes so that the ribs of each boss abut against an inner peripheral face of the corresponding mounting hole. The ribs are projectingly provided on the outer peripheral face, at least on a base part side, of the corresponding tubular portion. Such arrangement suppresses vibration of the mirror even when the support shaft is made of a synthetic resin.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 4, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 4, 2032 |
