Apparatus for preparing a coffee beverage, a system comprising such an apparatus, use of a coffee container in such a system or in such an apparatus and a method for preparing a coffee beverage using such an apparatus or using such a system

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10667646
APP PUB NO 20170367524A1
SERIAL NO

15600436

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

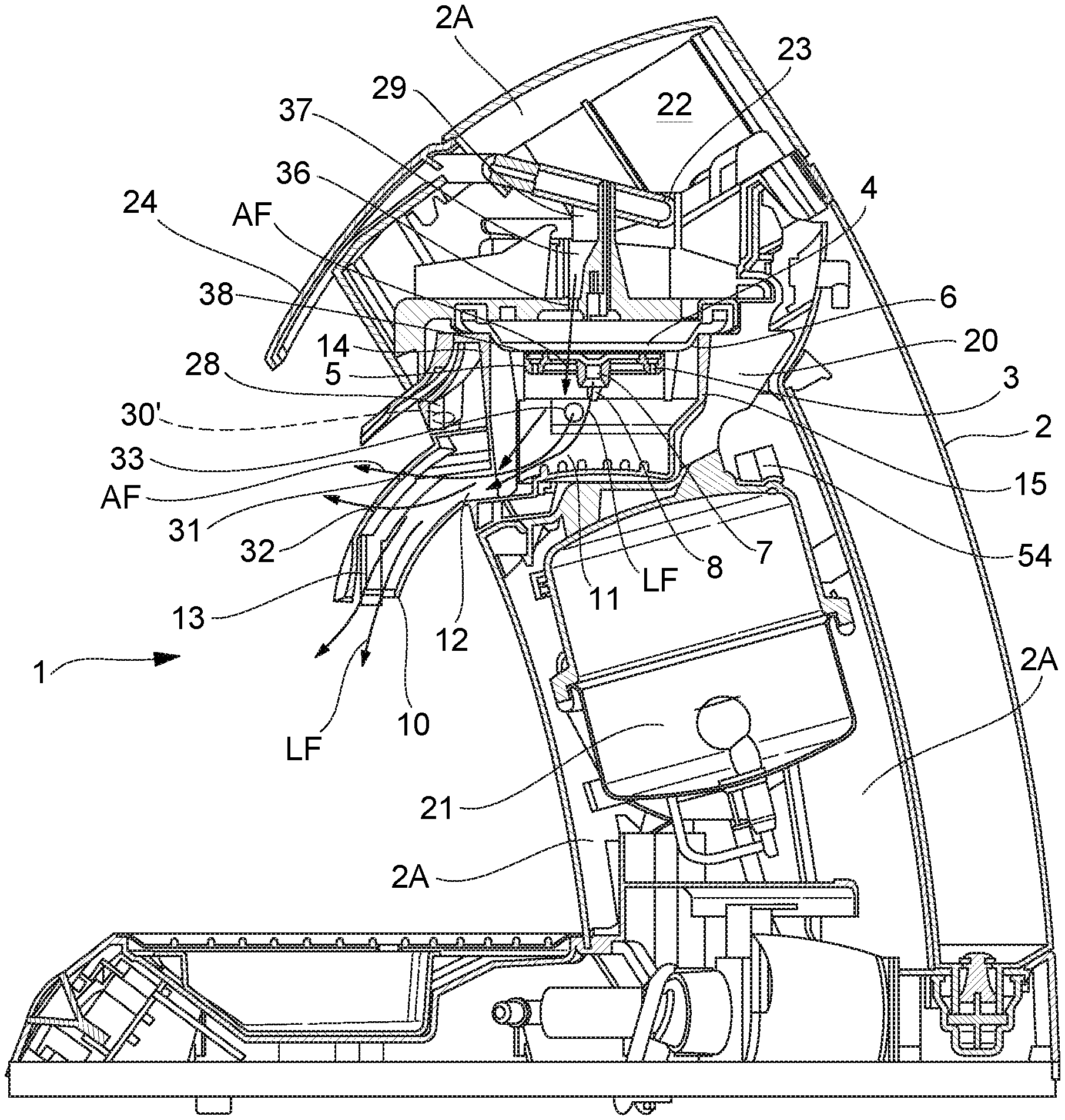

An apparatus for preparing a coffee beverage. The apparatus comprises a holder for receiving a coffee container. The holder comprising at least one outlet opening having at least one orifice for generating a coffee beverage flow when coffee beverage is fed to the outlet opening. A liquid flow path extends between the orifice and at least one outflow opening for discharging coffee beverage from the apparatus, a coffee outlet chamber being included in the liquid flow path. The apparatus further comprises an air flow generator for during operation- generating a flow of air in the coffee outlet chamber for entraining in the flow of air an aroma of the coffee beverage; said coffee outlet chamber comprising at least one dispenser opening for dispensing coffee beverage aroma in a direction away from the apparatus, in particular into the direction of the user. The at least one dispenser opening is separate from the at least one outflow opening. A method for preparing coffee beverage comprises the step of generating a flow of air in the coffee outlet chamber.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
KONINKLIJKE DOUWE EGBERTS B VVLEUTENSEVAART 35 UTRECHT 3532 AD

International Classification(s)

loading....
  • 2017 Application Filing Year
  • A47J Class
  • 1535 Applications Filed
  • 931 Patents Issued To-Date
  • 60.66 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Brouwer, Gustaaf Frans Utrecht, NL 38 331
de, Graaff Gerbrand Kristiaan Utrecht, NL 46 556
Nieuwlaat, Johannes Cornelis Utrecht, NL 2 6

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 2 Citation Count
  • A47J Class
  • 62.64 % this patent is cited more than
  • 5 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges488287401 - 1011 - 200255075100125150175200225250275300325350375400425450475500525

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Dec 2, 2027
11.5 Year Payment $7400.00 $3700.00 $1850.00 Dec 2, 2031
