DIVERSITY ANTENNA FOR BODYPACK TRANSMITTER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 21, 2017
app pub date -
Jun 20, 2016
filing date -
Jun 20, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

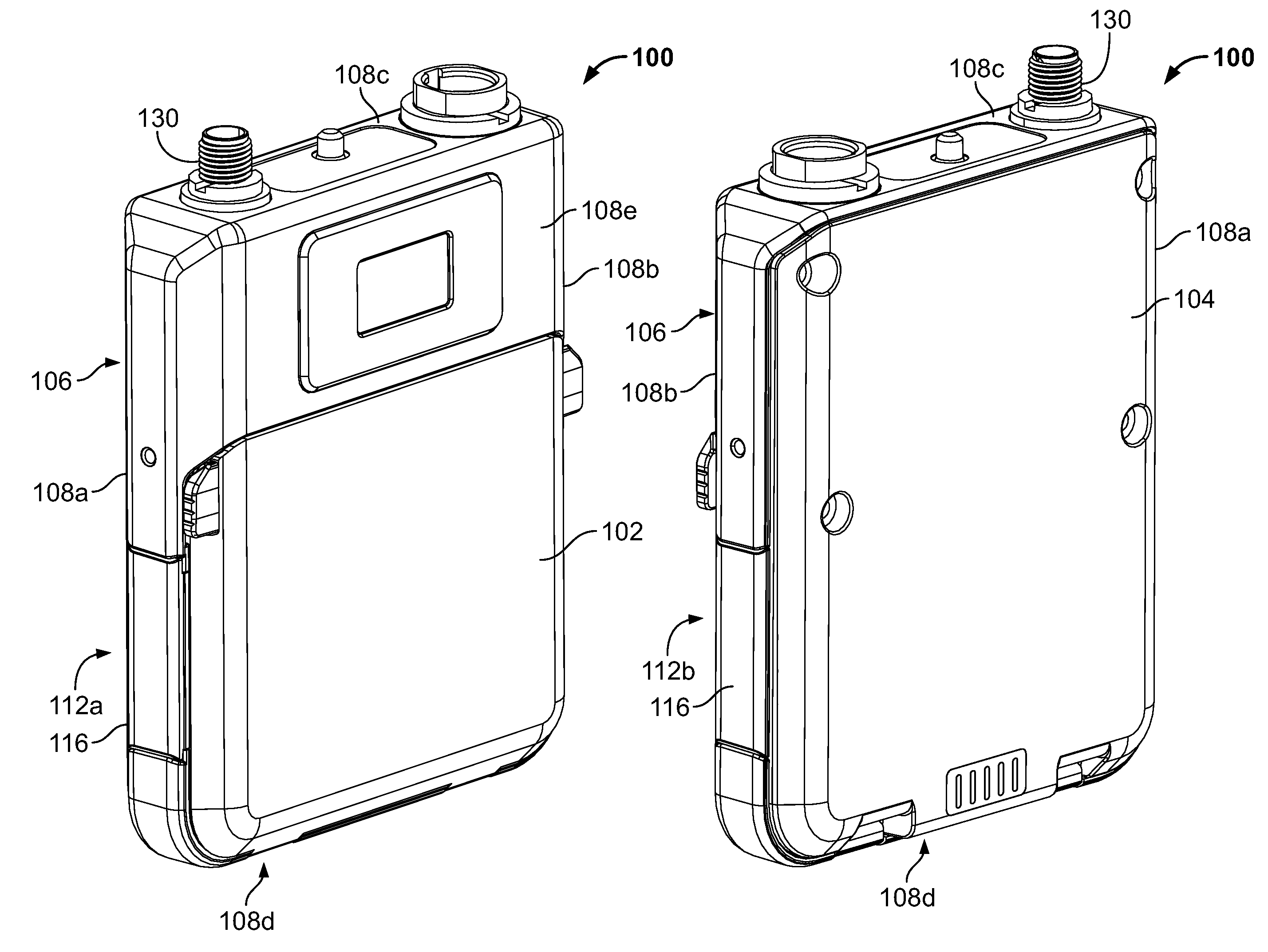

Embodiments include an antenna assembly comprising a non-conductive housing having an open end; an antenna element positioned inside the non-conductive housing; an electrical cable having a first end electrically coupled to the antenna element and a second end extending out from the open end; one or more dielectric materials positioned inside the non-conductive housing; and a conductive gasket coupled to a portion of the electrical cable positioned adjacent to the open end and outside the non-conductive housing. One embodiment includes a portable wireless bodypack device comprising a frame having a first external sidewall opposite a second external sidewall; a first antenna housing forming a portion of the first sidewall and including a first diversity antenna; and a second antenna housing forming a portion of the second sidewall and including a second diversity antenna. Embodiments also include a method of manufacturing an antenna assembly for a portable wireless bodypack device.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- H01Q Class
- 13.07 % this patent is cited more than
- 8 Age
