TRANSFORMER HAVING NOISE REDUCTION STRUCTURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 30, 2015
filing date -
Dec 31, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

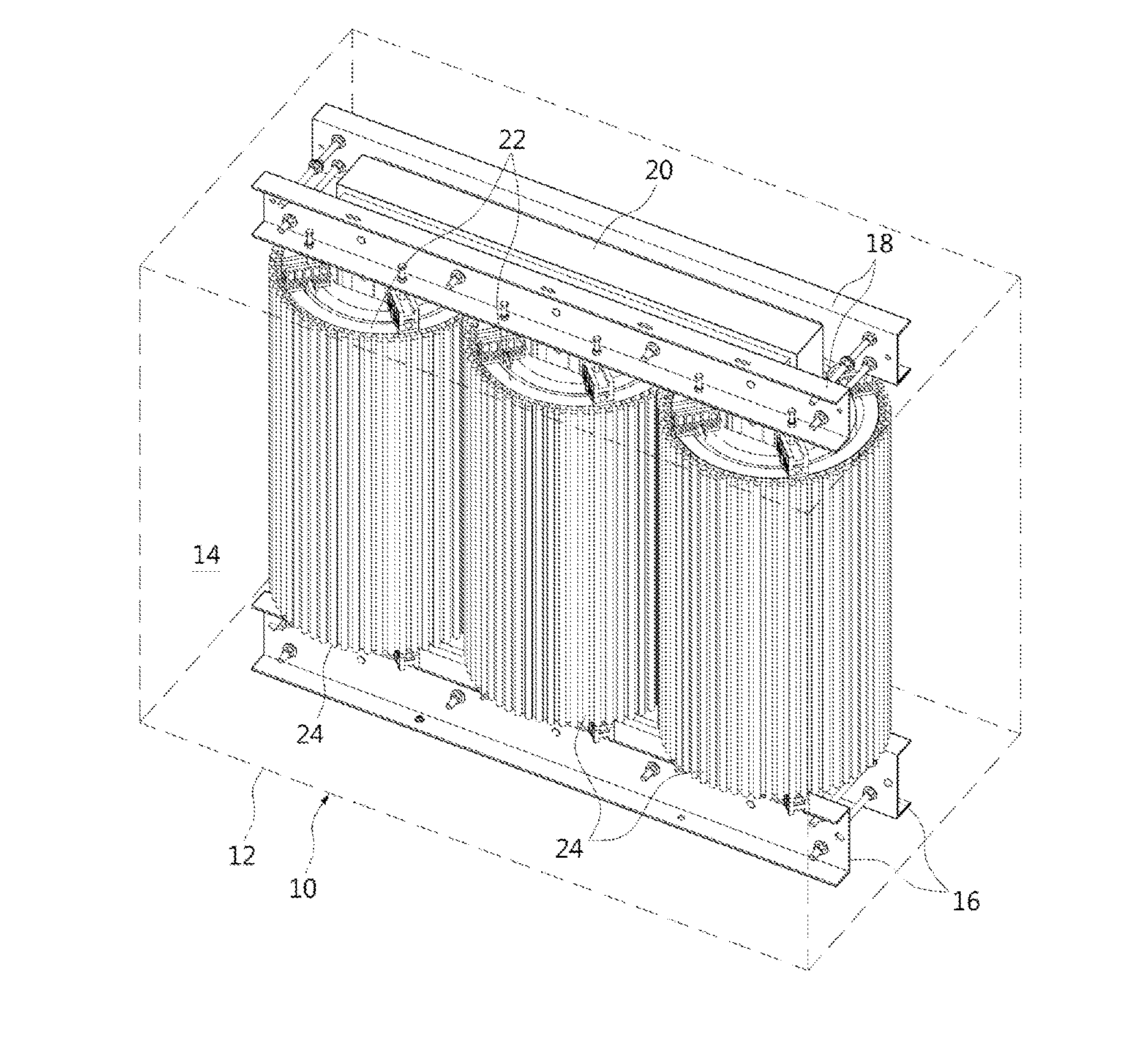

The present invention relates to a transformer having a noise reduction structure. A tank (12) forms the exterior of the transformer (10). An inner space (14) filled with insulating oil is formed inside the tank (12). An iron core (20) is provided inside the tank (12) by a lower frame (16) and an upper frame (18), and coils (22) are wound around parts of the iron core (20) extending in the direction of gravity. An insulating sheet (24) is provided to encompass the surface of each of the coils (22), and has ridge portions (26) and groove portions (28), which are formed to extend in the height direction of the iron core (20). It is preferable that the side surfaces of the groove portions (28) are formed in parallel so as to face each other. The present invention as above minimizes the transfer of vibrations, generated from the coils (22), to the insulating sheets (24) provided on the surfaces of the coils (22) and removes a part of the vibrations since the vibrations coming out after having passed through the insulating sheets (24) are transferred to the insulating oil so as to cancel each other out. Therefore, the present invention can relatively reduce vibration and noise, which are generated from the transformer.
First Claim
Other Claims data not available
