Optical sensor and manufacturing method for the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 12, 2019
Grant Date -
Dec 21, 2017
app pub date -
Jan 28, 2016
filing date -
Feb 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

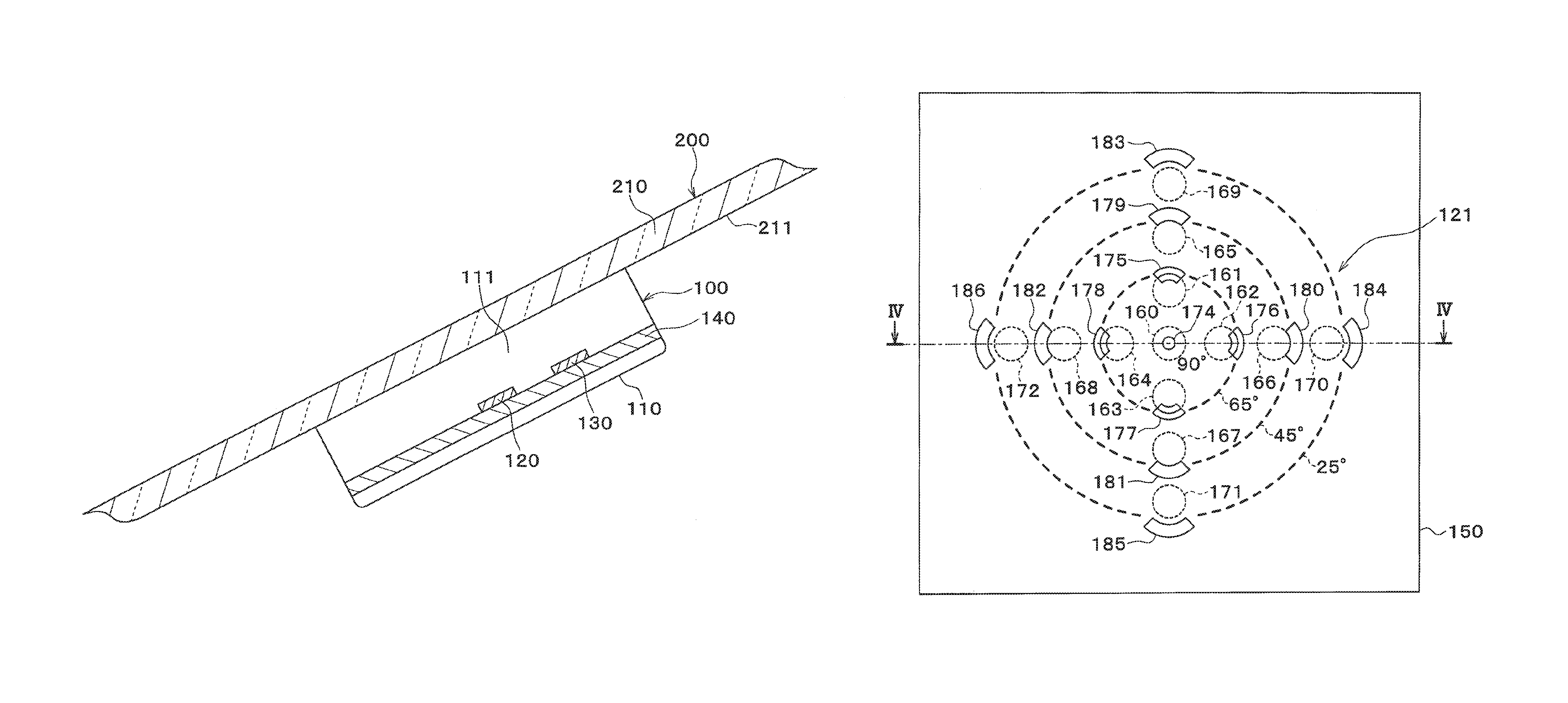

In an optical sensor, a detecting part includes detecting elements, and a light-shielding portion providing directional characteristics of light to the detecting elements such that the detecting elements indicate different intensities of light received in a specified direction. A signal processing part has an adjustment value for processing detection signals. The adjustment value is set as follows. Based on information of an inclination angle of a window glass of a vehicle to which the detecting part is attached, from the detecting elements, a detecting element having a directional characteristic of light suitable for the inclination angle is selected. The adjustment value is then set so as to coincide a signal value of a detection signal of the selected detecting element with a target value, when the detecting part is irradiated with light in a predetermined direction in a state where the detecting part is inclined at the inclination angle.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6390455 | Feb 04, 2015 |
| CN | A | CN107209058 | Jan 28, 2016 |
| KR | A | KR20170101987 | Jan 28, 2016 |
| WO | A1 | WO2016125470 | Jan 28, 2016 |
| EP | A1 | EP3255396 | Jan 28, 2016 |
International Classification(s)
- 2016 Application Filing Year
- G01J Class
- 1559 Applications Filed
- 1274 Patents Issued To-Date
- 81.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01J Class
- 32.83 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 12, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 12, 2030 |
