Tension release system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 4, 2020
Grant Date -
Dec 21, 2017
app pub date -
Sep 7, 2017
filing date -
Mar 31, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

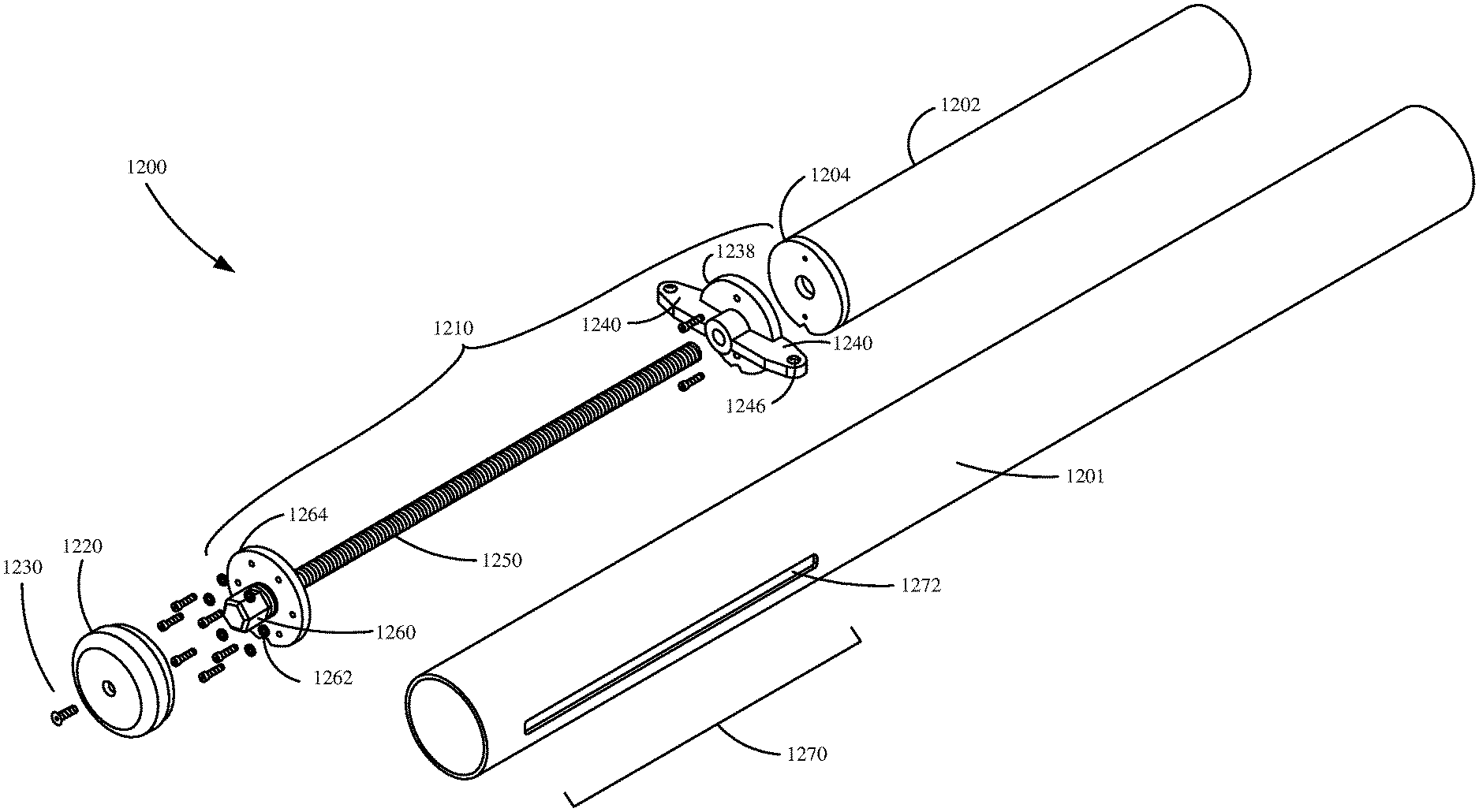

A method of installing a releasable shade membrane to a shade system is presented. The method comprises installing a tension release system within a structural component of the shade system. The tension release system comprises a threaded member configured to, when actuated, cause a coupling mechanism to move along an axis defined by the threaded member. The method also comprises coupling a shade membrane to the coupling mechanism. The method also comprises actuating the threaded member in a first direction, such that the coupling mechanism moves along the axis in a tensioning direction. The tension release system is configured to release applied tension upon actuation of the threaded member in a second direction, causing the coupling mechanism to move along the axis in a release direction. The release direction is substantially the reverse direction of the tensioning direction.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| US | B2 | US10731376 | Mar 24, 2017 |
International Classification(s)
- 2017 Application Filing Year
- F16B Class
- 1909 Applications Filed
- 1291 Patents Issued To-Date
- 67.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16B Class
- 59.84 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 4, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 4, 2032 |
