SLIDING GUIDE SHOE FOR AN ELEVATOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 21, 2017
app pub date -
Jan 11, 2016
filing date -
Jan 20, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

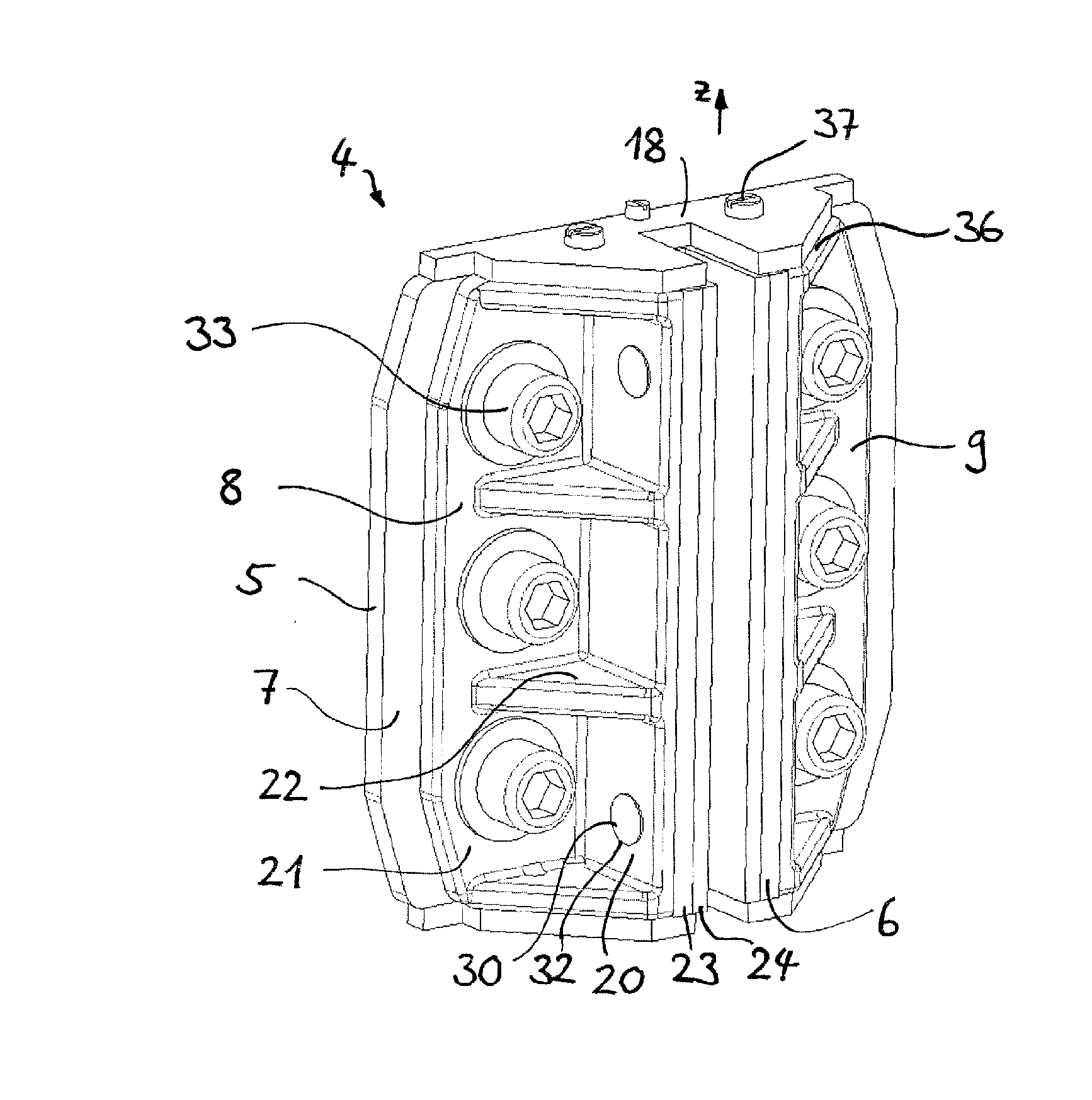

A sliding guide shoe for an elevator for conveying persons or goods includes a guide shoe housing with a channel-like rail receptacle in which an inlay for guidance of an elevator car along a guide rail extending in longitudinal direction is inserted. The guide shoe housing is constructed substantially from the three following housing parts: a base plate and two side parts that are fastened to the base plate by screw connections. The guide shoe housing enables the channel width of the rail receptacle to be varied for adaptation to different guide rails.
