SHUTTER WITH TRACK-GUIDED LOUVERS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 21, 2017
app pub date -
Jun 21, 2016
filing date -
Jun 21, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

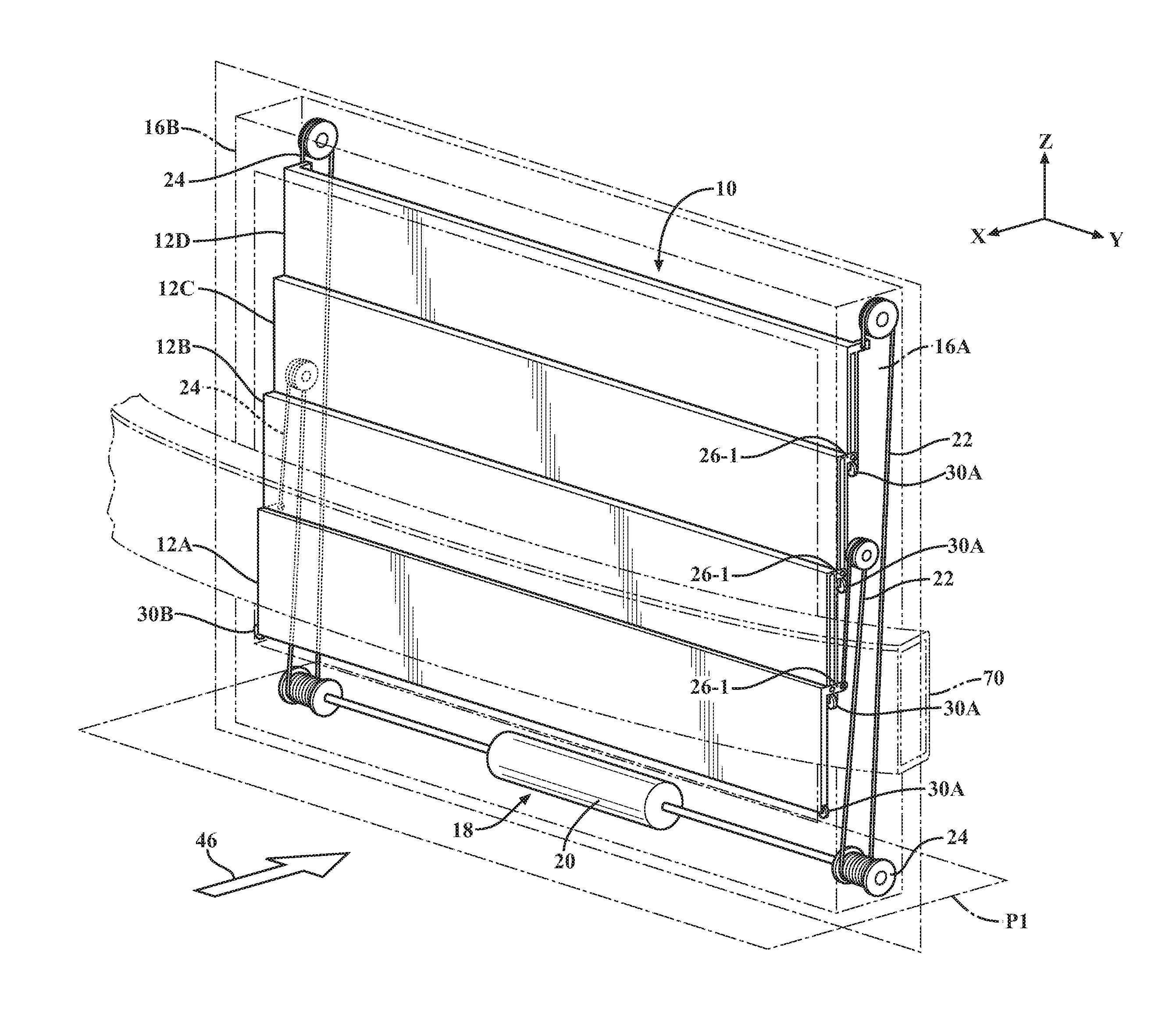

A shutter system for controlling a flow of an incident airstream through a grille opening in a vehicle includes a track arranged transverse to the airstream. The shutter system also includes a plurality of louvers configured to shift along the track and be guided thereby. The shutter system additionally includes a mechanism configured to select a position for the shutter system between and inclusive of fully-opened and fully-closed to regulate the flow of the incident airstream through the grille opening by shifting the plurality of louvers along the track. Each of the plurality of louvers is arranged along a plane transverse to the incident airstream and remains therein as the position of the shutter system is selected between and inclusive of fully-opened and fully-closed.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B60K Class
- 15.87 % this patent is cited more than
- 8 Age
