Workpiece clamp device capable for changing clamp angle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Jun 21, 2016
filing date -
Jun 21, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

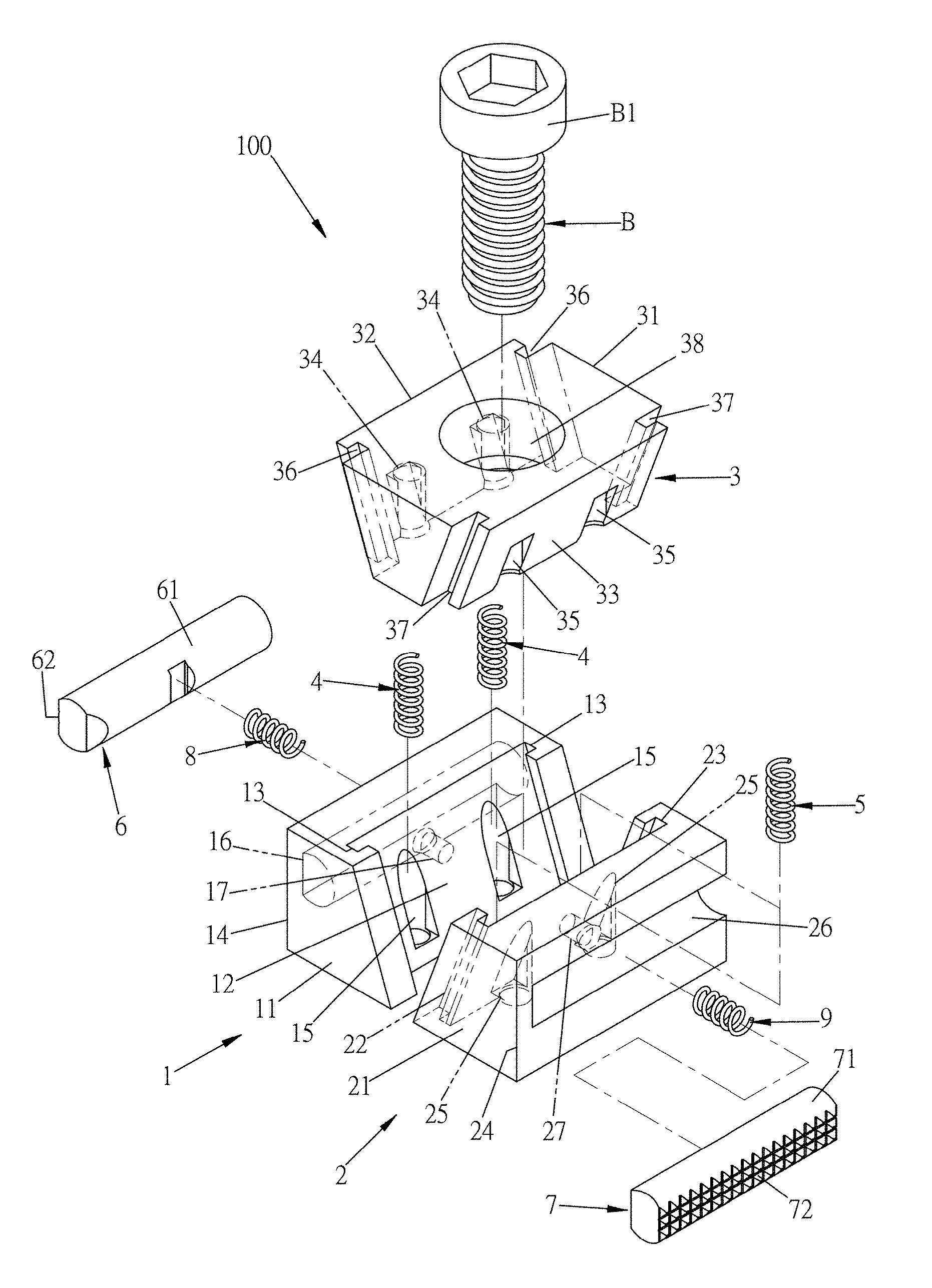

A workpiece clamp device capable for changing clamp angle is arranged on a base plane and comprises a first and a second movable blocks, a driving block, at least one first and at least one second elastic members, at least one first and at least one second cylinders, and at least one third and at least one fourth elastic members. Since the first and the second cylinders are slightly rotatably and detachably respectively embedded in the first and the second embedding grooves to make the first and the second rough surfaces be exposed and the elasticity of the third and the fourth elastic members is cooperated therewith, the first and the second rough surfaces are slightly fine-tuned based on the shapes and sizes of the workpieces so as to be suitable for clamping and fastening the workpieces with different shapes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B25B Class
- 791 Applications Filed
- 523 Patents Issued To-Date
- 66.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B25B Class
- 34.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
