Ultrasonic nebulizer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 13, 2020
Grant Date -
Dec 21, 2017
app pub date -
Sep 7, 2017
filing date -
Mar 25, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

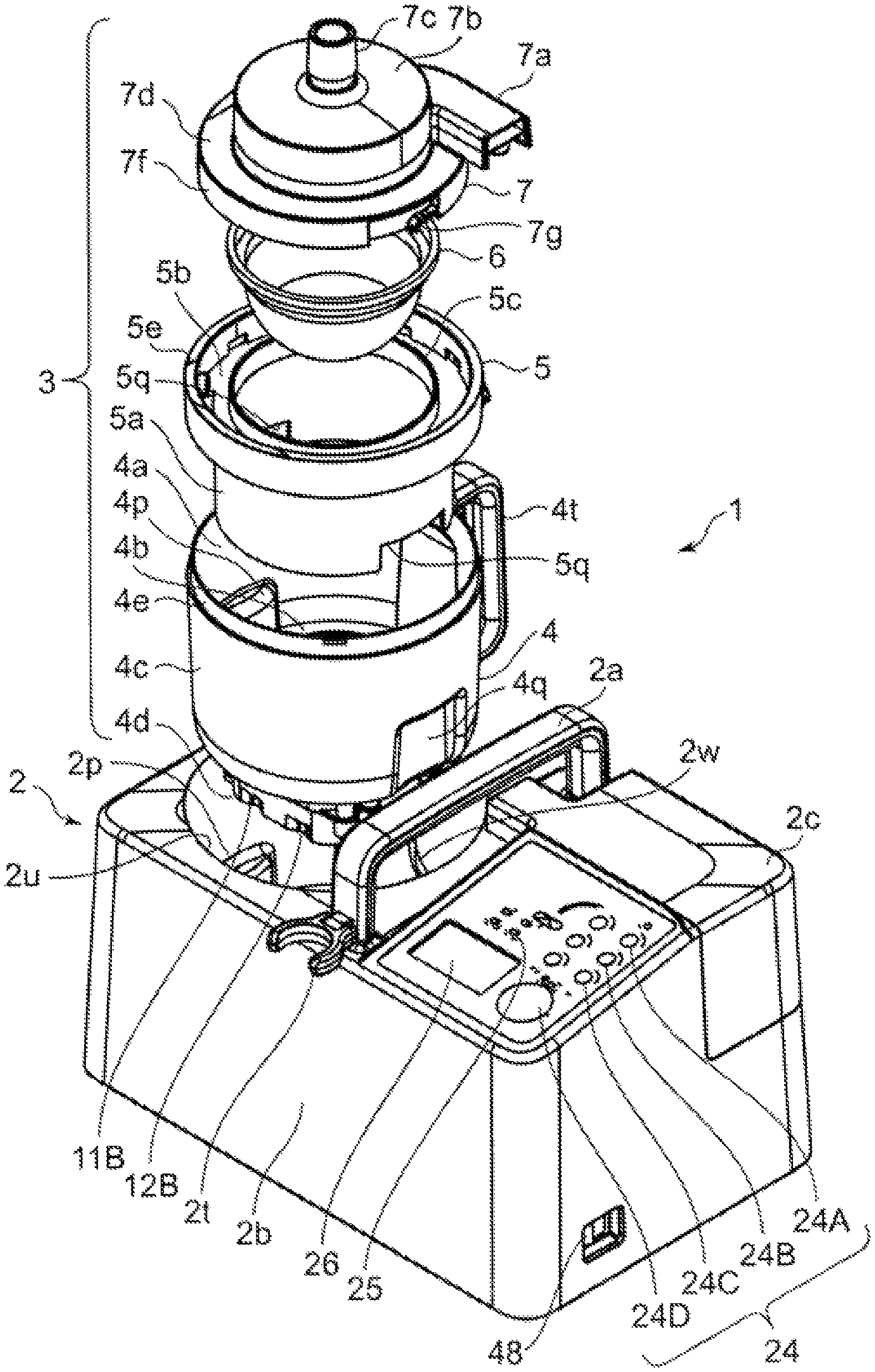

An ultrasonic nebulizer includes a tank unit configured to be detachable with respect to a main body. The tank unit includes a working tank in which an ultrasonic vibrator is incorporated, a medicine tank, and a medicine tank cover, which are arranged overlaid in the stated order. The output of an oscillation circuit in the main body is applied to the ultrasonic vibrator through a main body-side contact electrode and a tank-side contact electrode when the tank unit is mounted on the main body. The main body includes an air fan that blows air into the medicine tank through an air duct of the medicine tank cover, and a medicine tank cover detection unit that detects whether or not the air duct of the medicine tank cover is adjacent to the main body so as to detect whether or not the tank unit is mounted on the main body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B05B Class
- 1599 Applications Filed
- 1073 Patents Issued To-Date
- 67.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B05B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 13, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 13, 2032 |
