Universal ultrasound device and related apparatus and methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2020
Grant Date -
Dec 21, 2017
app pub date -
Jan 25, 2017
filing date -
Jun 20, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

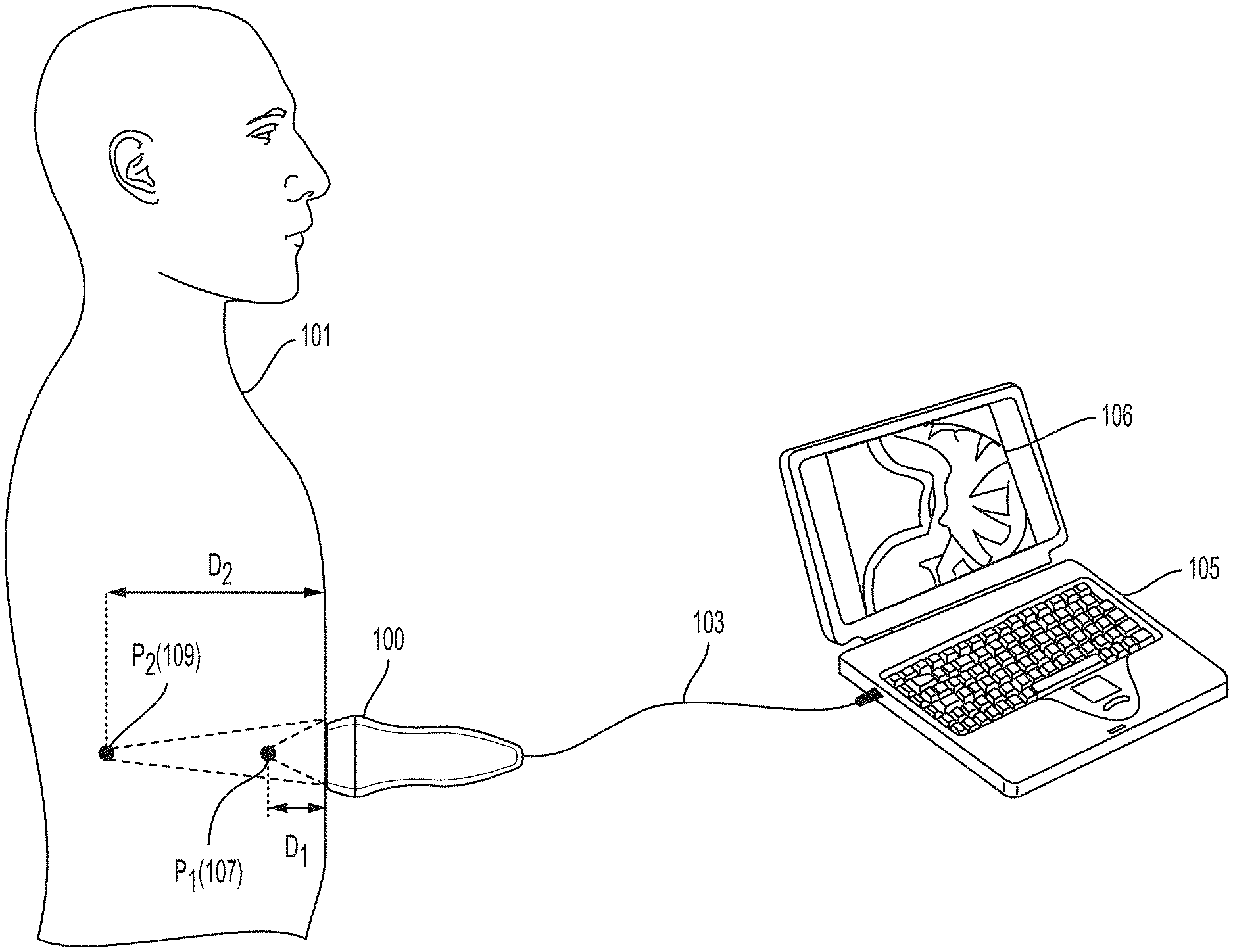

A universal ultrasound device having an ultrasound includes a semiconductor die; a plurality of ultrasonic transducers integrated on the semiconductor die, the plurality of ultrasonic transducers configured to operate a first mode associated with a first frequency range and a second mode associated with a second frequency range, wherein the first frequency range is at least partially non-overlapping with the second frequency range; and control circuitry configured to: control the plurality of ultrasonic transducers to generate and/or detect ultrasound signals having frequencies in the first frequency range, in response to receiving an indication to operate the ultrasound probe in the first mode; and control the plurality of ultrasonic transducers to generate and/or detect ultrasound signals having frequencies in the second frequency range, in response to receiving an indication to operate the ultrasound probe in the second mode.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B06B Class
- 452 Applications Filed
- 305 Patents Issued To-Date
- 67.48 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 13 Citation Count
- B06B Class
- 93.94 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 8, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 8, 2032 |
