ELECTROMAGNETIC INTERFERENCE SHIELDING CONFIGURATION OF ELECTRONIC DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 14, 2017
app pub date -
Jul 28, 2016
filing date -
Jun 14, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

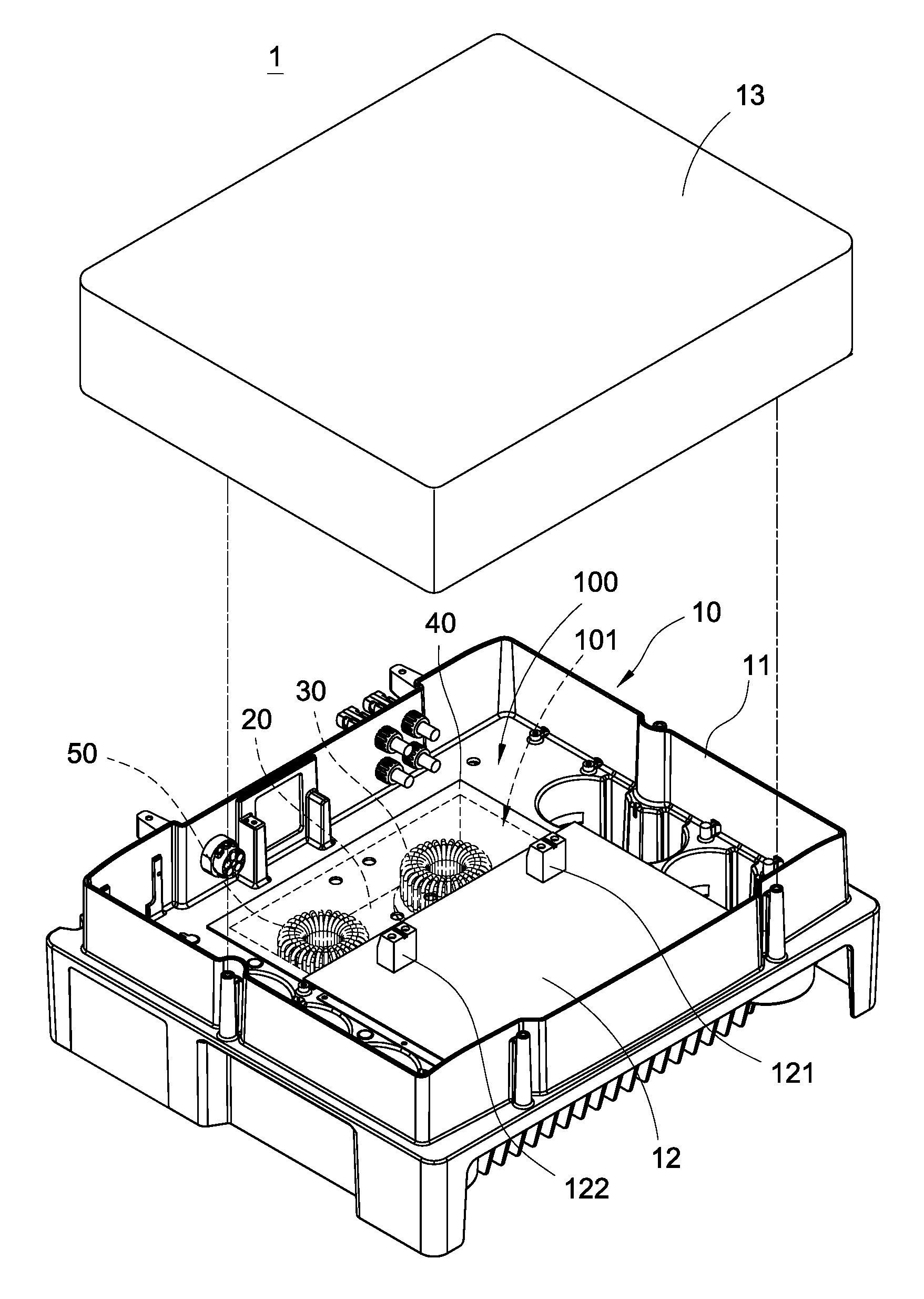

An electromagnetic interference shielding configuration of an electronic device includes a housing, a connecting circuit board, at least one EMI filter, and a shielding component. The housing has an accommodating space and a shielding space. A mainboard is disposed in the accommodating space, and a connecting circuit board is disposed in the shielding space and electrically conducted to the mainboard. The at least one EMI filter is disposed on the connecting circuit board and electrically conducted to the mainboard through the connecting circuit board. The shielding component combines with the housing and covers the EMI filter. Thus the EMI filter will not have electromagnetic interferences with external electronic components and provide a stable operation of the electronic device.
