Low loss double submodule for a modular multi-level converter and modular multi-level converter having same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2021
Grant Date -
Dec 14, 2017
app pub date -
Jun 9, 2017
filing date -
Jun 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

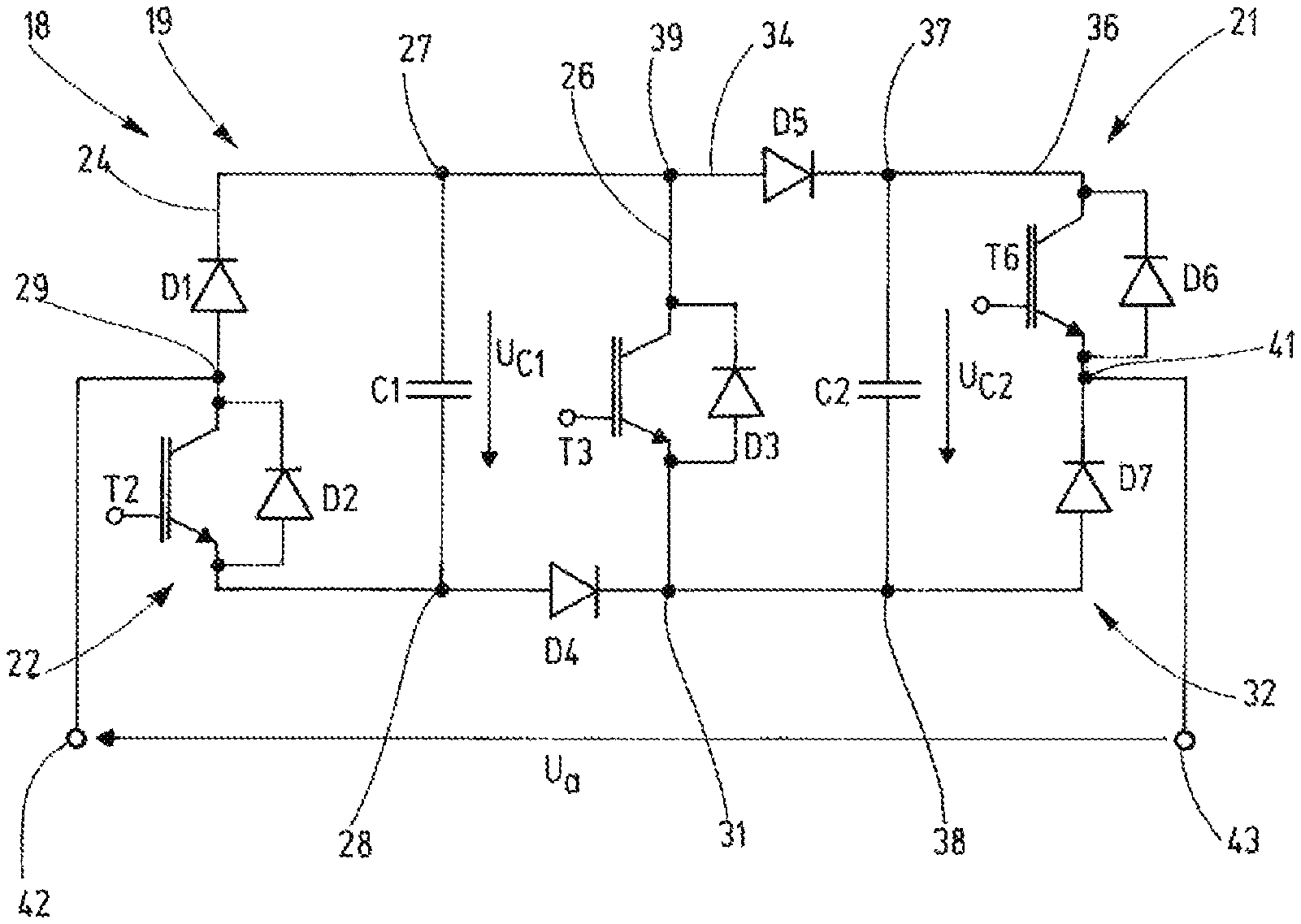

A double submodule for a modular multilevel converter comprising a first and second submodule coupled to the first. Each submodule comprises an asymmetric H bridge circuit with two parallel bridges branches, connected between a first and a second direct voltage node of the submodule. Each bridge branch is formed by a series connection from a controllable power semiconductor switch and a diode. A storage capacitor is connected in parallel to the asymmetric H bridge circuit between the first and the second direct voltage node of the submodule. The first and the second submodule are interconnected in such a way that a power semiconductor switch or a diode is part of a bridge branch of the first submodule as well as part of a bridge branch of the second submodule. A modular multilevel converter, comprises a series connection of such double submodules in each of its converter branches, is also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H02M Class
- 3298 Applications Filed
- 2665 Patents Issued To-Date
- 80.81 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02M Class
- 49.27 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 2, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 2, 2032 |
