TRANSFORMER ENCLOSURE WITH IMPROVED COOLING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 14, 2017
app pub date -
Jun 8, 2016
filing date -
Jun 8, 2016
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

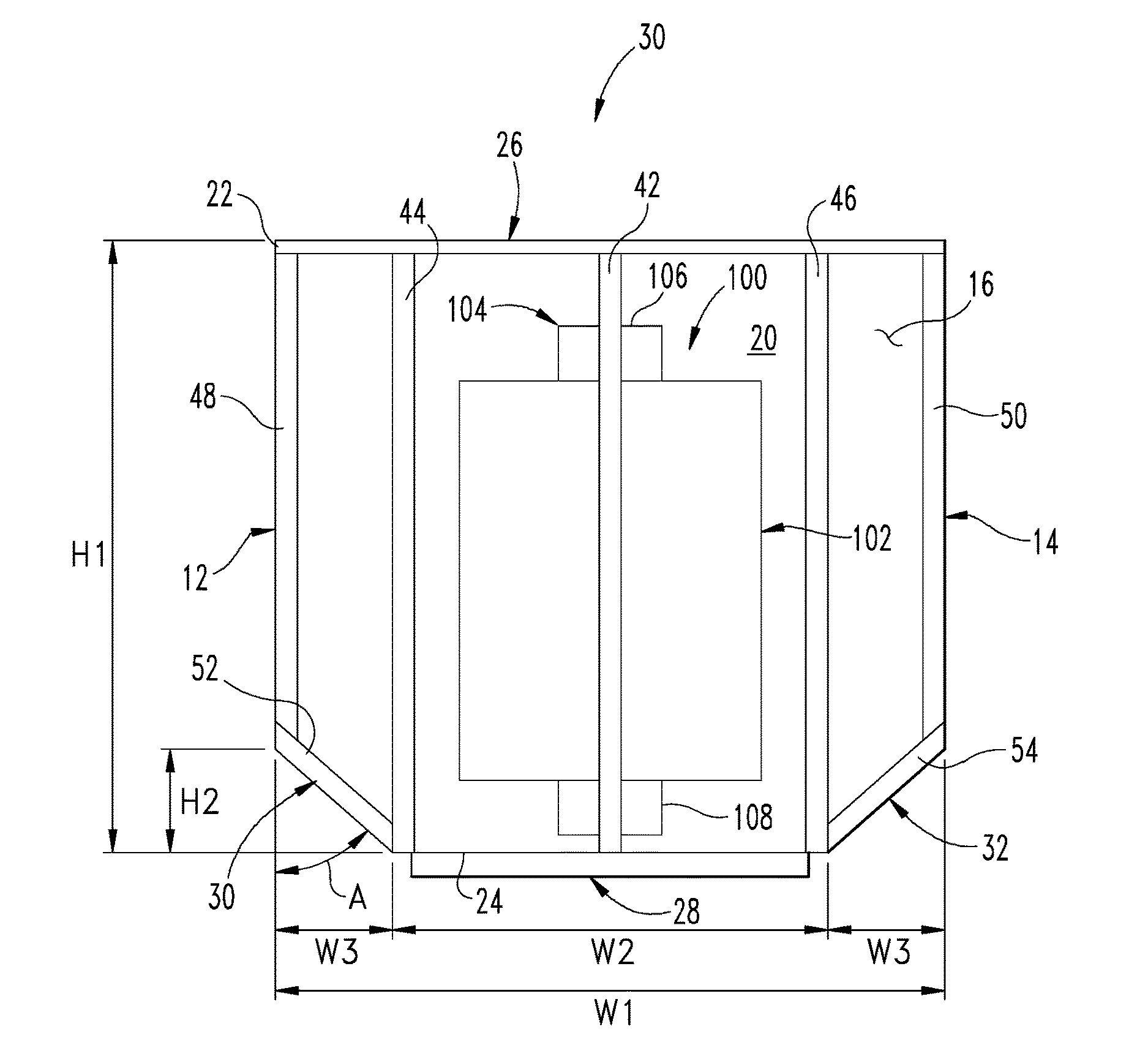

A transformer is provided that includes an enclosure configured to house a core and a coil assembly mounted to the core. The enclosure includes a number of vertically extending sidewalls, at least one top wall connecting the sidewalls, and a bottom end opposite the at least one top wall. At least one of the sidewalls is joined to an access panel that is angled below the at least one top wall and extends between the bottom end of the enclosure and the vertically extending at least one sidewall. A first ventilation opening is provided in the angled access panel and a second ventilation opening is provided in the at least one sidewall adjacent to and/or in the top wall.
