Fastener assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 2, 2021
Grant Date -
Dec 14, 2017
app pub date -
Jun 6, 2017
filing date -
Jun 8, 2016
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

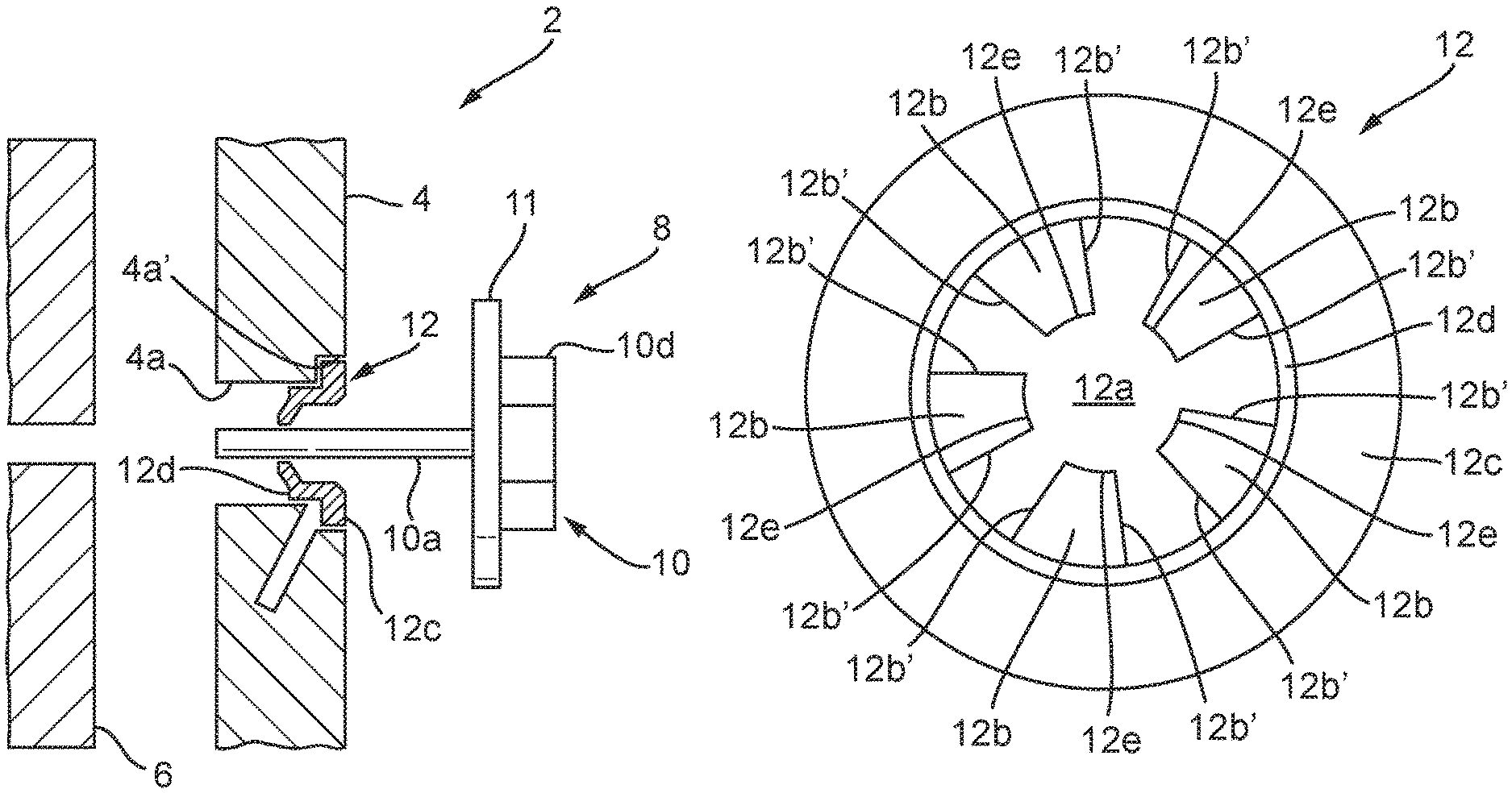

A fastener assembly for a motor vehicle is provided. The fastener assembly comprises a fastener configured to couple a first component to a second component of the motor vehicle, the fastener comprising a shank configured to be received within a bore of the first component; and a retaining member, the retaining member being couplable to the fastener and the first component, the retaining member comprising an opening configured to receive the fastener shank and to provide a resistance against the removal of the fastener shank from the bore of the first component, wherein the retaining member comprises a deformable portion configured to deform from a first state to a second state by virtue of the operating environment of the first component such that the fastener may be removed from the bore when the deformable portion is in the second state following operation of the motor vehicle.
First Claim
all claims..Other Claims data not available
Family
Country | kind | publication No. | Filing Date | Type | Sub-Type |
---|
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
- FORD MOTOR COMPANY LIMITED
International Classification(s)

- 2017 Application Filing Year
- F16B Class
- 1909 Applications Filed
- 1291 Patents Issued To-Date
- 67.63 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Mallard, William John | Southend on Sea, GB | 6 | 14 |
# of filed Patents : 6 Total Citations : 14 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- F16B Class
- 0 % this patent is cited more than
- 4 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 2, 2028 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 2, 2032 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
