BLOWER APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 14, 2017
app pub date -
May 30, 2017
filing date -
Jun 8, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

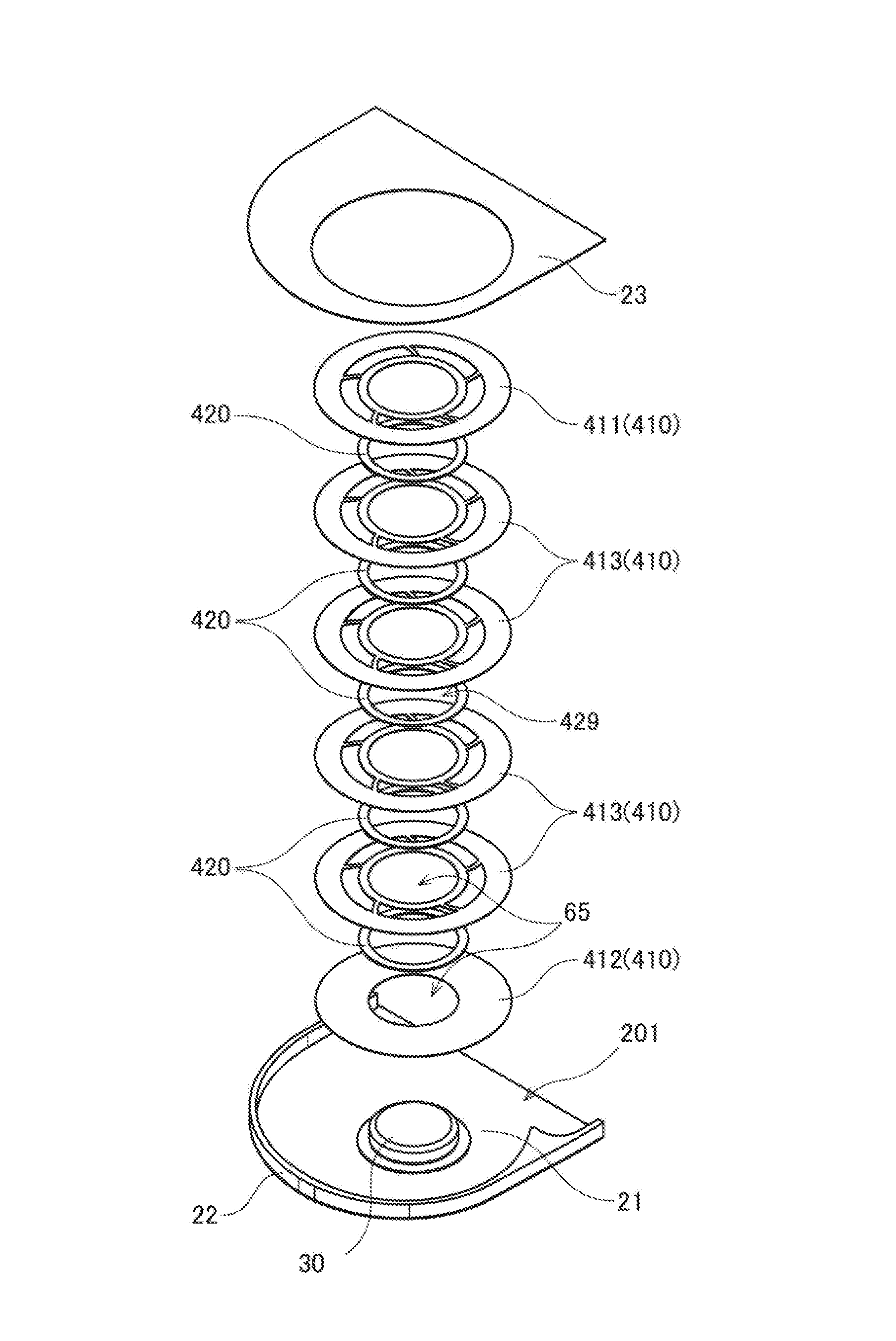

This blower apparatus includes an air blowing portion including a plurality of flat plates arranged with an axial gap defined between adjacent ones of the flat plates; a motor portion arranged to rotate the air blowing portion; and a housing arranged to house the air blowing portion and the motor portion. The housing includes an air inlet and an air outlet. A rotating portion includes a hub including a flat plate holding portion arranged to hold at least one of the flat plates. Once the air blowing portion starts rotating, an air flow traveling radially outward is generated between the flat plates by viscous drag of surfaces of the flat plates and a centrifugal force. Since the air flow is generated between the flat plates, the air flow does not easily leak upwardly or downwardly, and thus, an improvement in air blowing efficiency is achieved.
First Claim
Other Claims data not available
