METHOD FOR MANUFACTURING PIECES BY THE TECHNIQUE OF ADDITIVE MANUFACTURING BY PASTY PROCESS AND MANUFACTURING MACHINE FOR IMPLEMENTING THE METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 14, 2017
filing date -
Jun 14, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

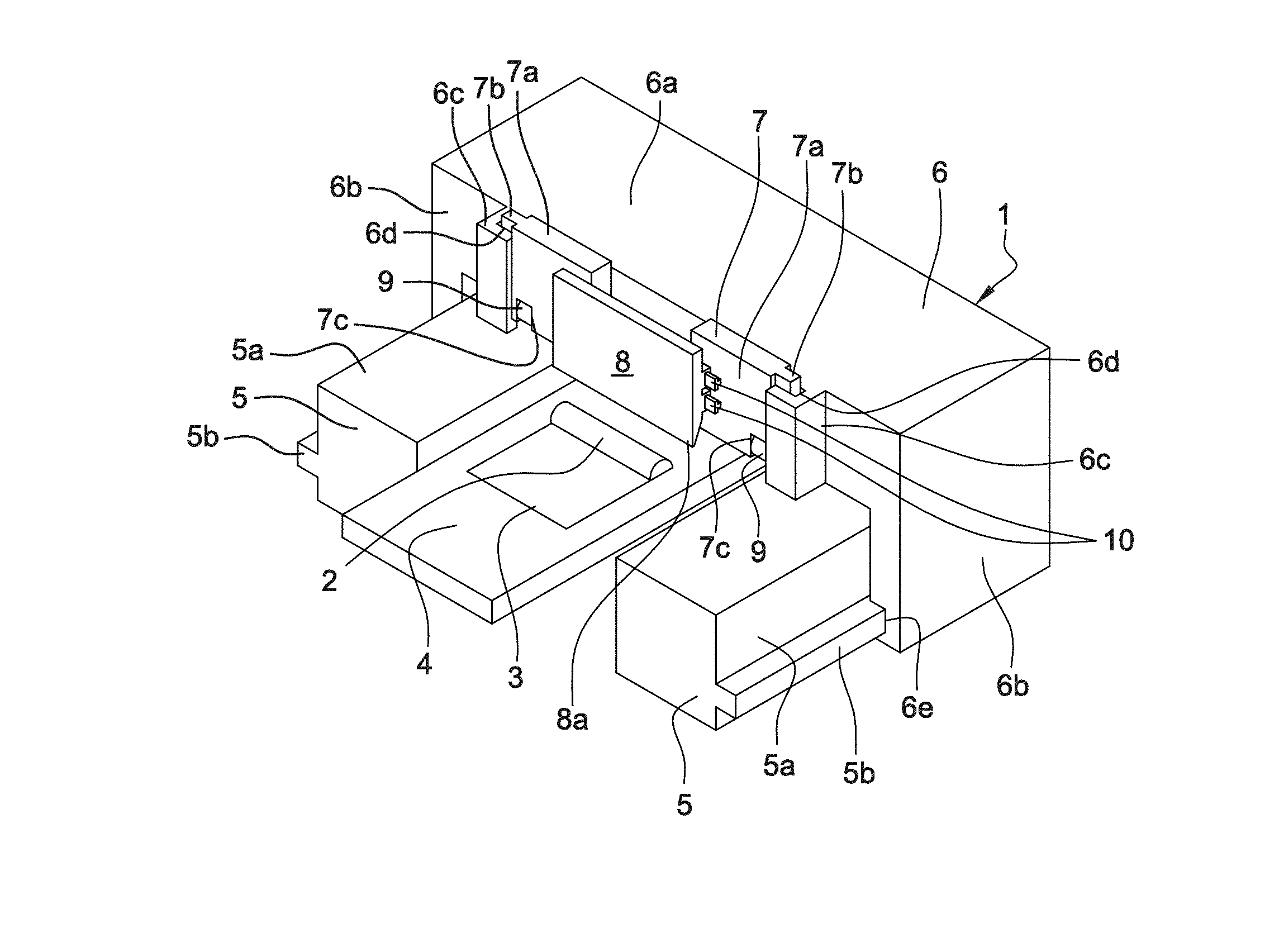

Disclosed is a method for manufacturing a green piece made of ceramic material by the technique of additive manufacturing according to which layers of a photocurable paste are successively allowed to cure by irradiation according to a pattern defined for each layer, the first layer being formed on a working surface on a working tray, each layer, before curing, being spread by scraping a paste mass provided on the working tray, which is lowered upon each formation of a layer. According to the disclosure, when spreading at least one of the photocurable paste layers, at least one scraping blade in working position, in addition to its scraping motion or so-called pass motion, is allowed to go back and forth in its plane, according to a so-called vibration motion.
First Claim
Other Claims data not available
