BRAIDED MEDICAL DEVICES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 8, 2017
filing date -
Jun 10, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

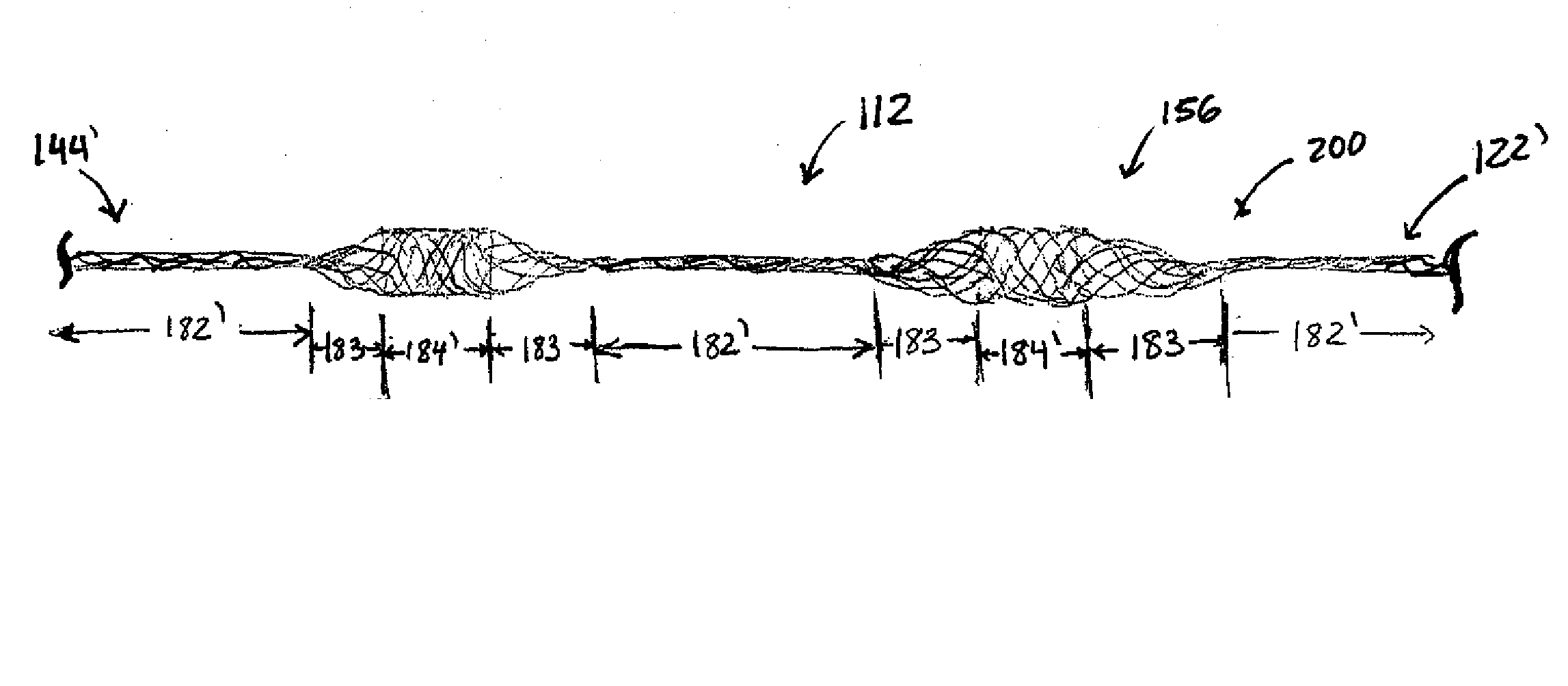

A braided vaso-occlusive member formed out of first plurality of filaments interwoven with a second plurality of filaments, wherein filaments of the first plurality are helically wound in a first rotational direction along an elongate axis of the braided member, and filaments of the second plurality are wound in a second rotational direction opposite the first rotational direction, such that filaments of the first plurality cross over and/or under filaments of the second plurality at each of a plurality cross-over locations axially spaced along the elongate axis of the braided member, wherein at each cross-over location, the filaments of the first plurality cross over at least two consecutive filaments of the second plurality, then cross under only a single filament of the second plurality, and then cross over at least two additional consecutive filaments of the second plurality.
First Claim
Other Claims data not available
