Modular (glue-) valve
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 2, 2020
Grant Date -
Dec 7, 2017
app pub date -
Jun 1, 2017
filing date -
Jun 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

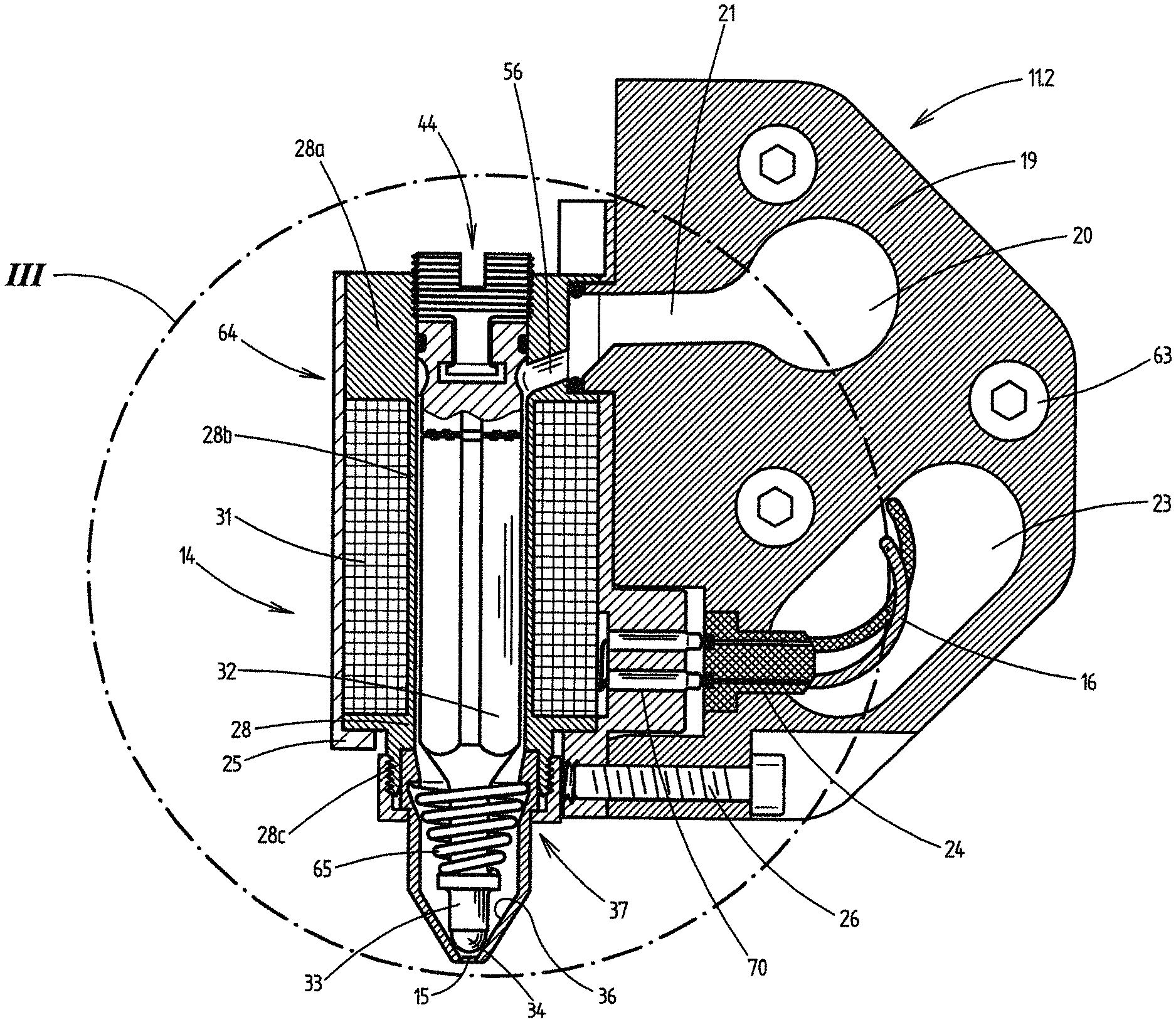

A modular valve for free-flowing media, with a main module with a valve housing and an electromagnet, a dosing module with a closure member which is movable by means of the electromagnet and which closes a dispensing opening of the dosing module, and a valve lift adjustment module for adjusting the valve lift, which valve lift adjustment module comprises an elongate abutment part which is arranged at least in part in a valve interior of the main module and is modifiable in its axial position in the valve interior, which abutment part limits the movement of the closure member in the direction of the valve lift adjustment module, the dosing module and the valve lift adjustment module being connected releasably to the main module in such a way that the dosing module and the valve lift adjustment module can each be replaced by another module of the same module type.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F16K Class
- 2135 Applications Filed
- 1600 Patents Issued To-Date
- 74.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16K Class
- 62.15 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 2, 2031 |
