Implement coupling device and a machine provided with such a device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
Dec 7, 2017
app pub date -
Nov 27, 2015
filing date -
Dec 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

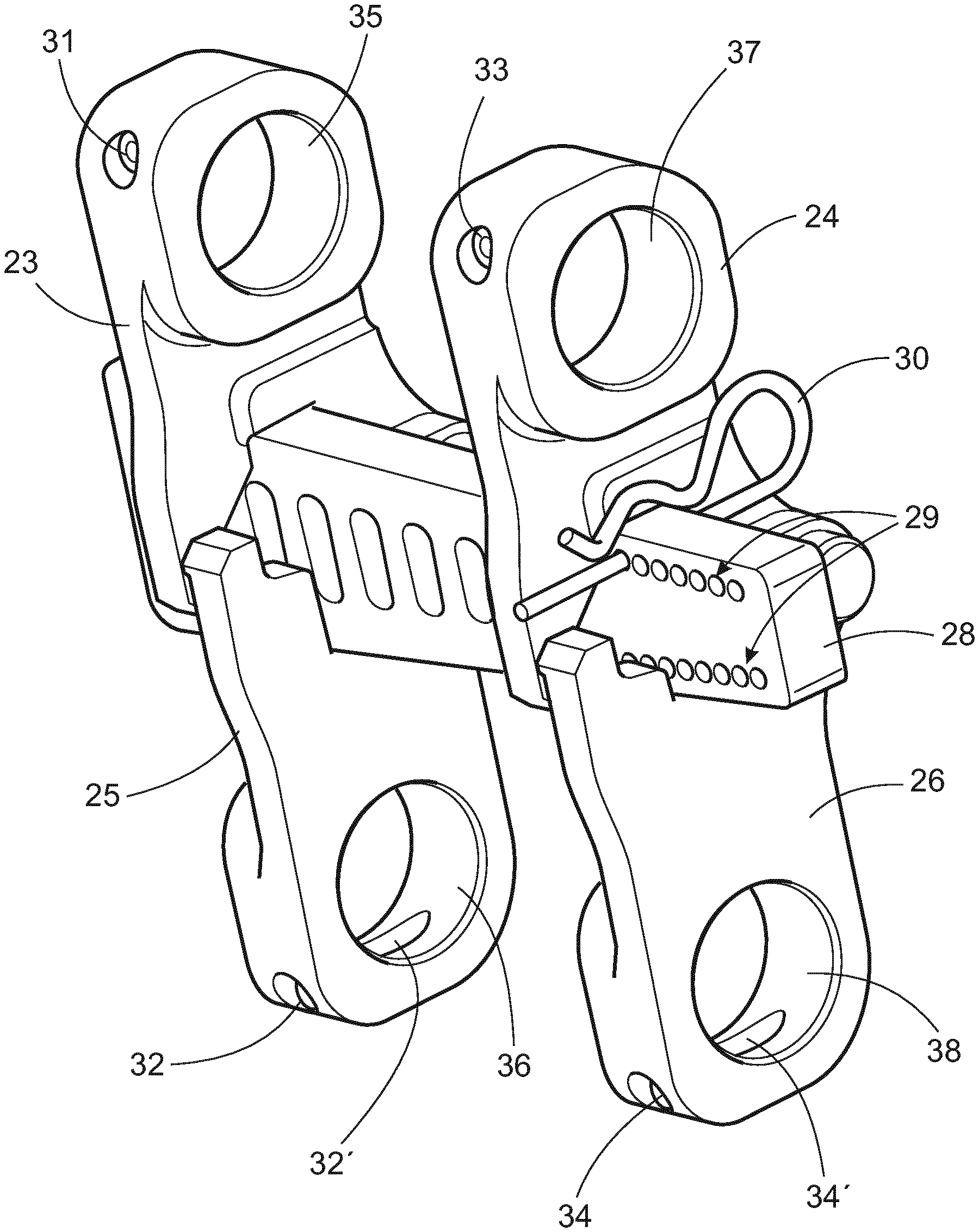

An implement coupling device (1) on a working machine (2) comprises a coupling means (11) provided with a first shaft (21); an engagement means (12) provided with a second shaft (22) arranged parallel to the first shaft (21); at least one linkage (13, 14) comprising a first portion (23, 24) connected to the first shaft (21) and second portion (25, 26) connected to the second shaft (22), which first and second portions are connected by a pivot joint (27); and a wedge (28) means arranged to be removably mounted between the first and second portions (23, 24; 25, 26), wherein the coupling means (11) and the engagement means (12) are displaceable relative to each other in a direction at right angles to the first and second shafts (21, 22) to attach or release the implement. At least one portion (23, 24; 25, 26) making up a linkage (13, 14) is detachably fixed to its respective shaft (21, 22) by a locking means (31, 32, 33, 34) in a longitudinal recess (41, 42, 43, 44) at right angles to the shaft (21, 22) and engaging with a tangential recess (51, 51′, 51″) in the outer surface of the shaft (21, 22).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- E02F Class
- 670 Applications Filed
- 557 Patents Issued To-Date
- 83.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- E02F Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2032 |
