YARN HEAD ROTOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 11, 2017
filing date -
Jun 2, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

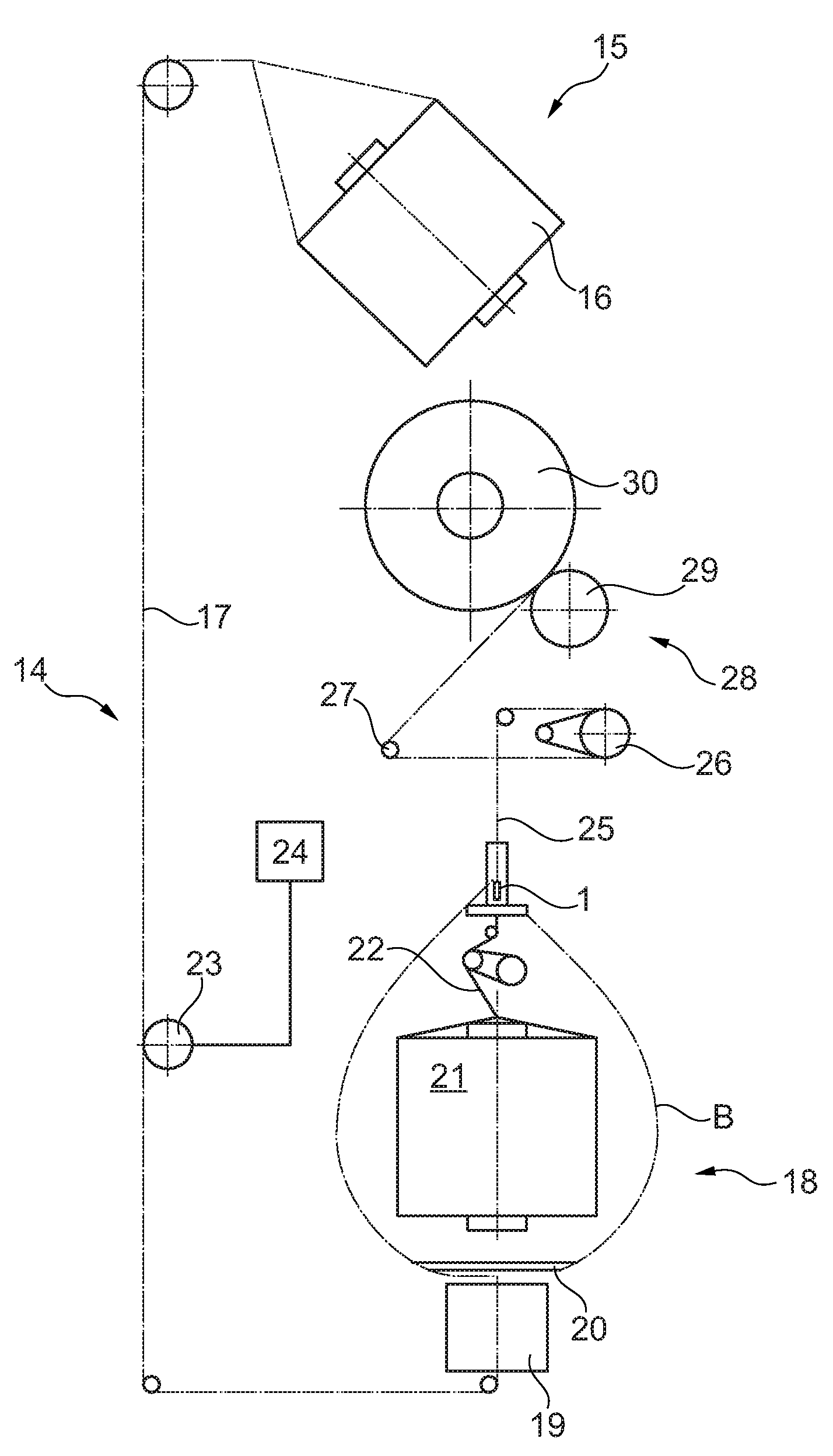

A yarn head rotor 1 for a cabling machine, comprising several deflection rollers 2 for evening the yarn tension of two yarns being twisted, each deflection roller being rotatably mounted on a pivot axis 5 at right angles to the rotor axis of the yarn head rotor 1 and guided across the two yarns. The deflection roller 2 is mounted in the yarn head rotor 1 by bearings 6 at both ends of the deflection roller 2, wherein the two ball bearings 6 are each enclosed by a housing 7 of the yarn head rotor 1, which is closed with a cover 8, and yarn guiding eyelets 9, guiding the inner and outer yarns 17, are arranged upstream of the deflection roller 2 in such a way that they supply both yarns of the deflection roller between the two ball bearings 6 to the yarn head rotor 1.
First Claim
Other Claims data not available
