COATED SOLDER WIRE AND METHOD FOR MANUFACTURING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 16, 2015
filing date -
Dec 19, 2014
priority date (Note) -
Published
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

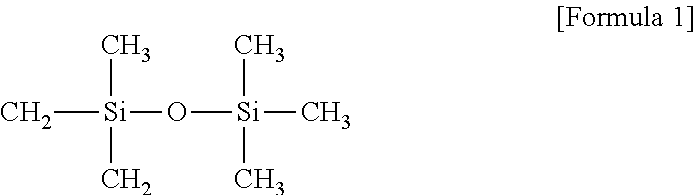

Provided is a manufacturing method in which a coated solder wire having a dense polysiloxane coating film that is uniformly provided over the entire surface of the solder wire can be efficiently obtained in a single process. A coated solder wire is obtained by a manufacturing method that includes; a radicalization step for forming a radicalized organic silicon compound by mixing a reaction gas that has been plasmatized under atmospheric pressure and an organic silicon compound that is introduced by way of a carrier gas, and radicalizing that organic silicon compound; a reaction area formation step for forming a reaction area that is defined by a helical gas flow and in which the radicalized organic silicon compound is uniformly dispersed; and a coating step for forming a 4 nm to 200 nm thick polysiloxane coating film on the surface of a solder wire by transporting a solder wire inside the reaction area and causing the radicalized organic silicon compound to react with metal on the surface of that solder wire.
