Drilling chuck
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 2019
Grant Date -
Dec 7, 2017
app pub date -
May 31, 2017
filing date -
Jun 1, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

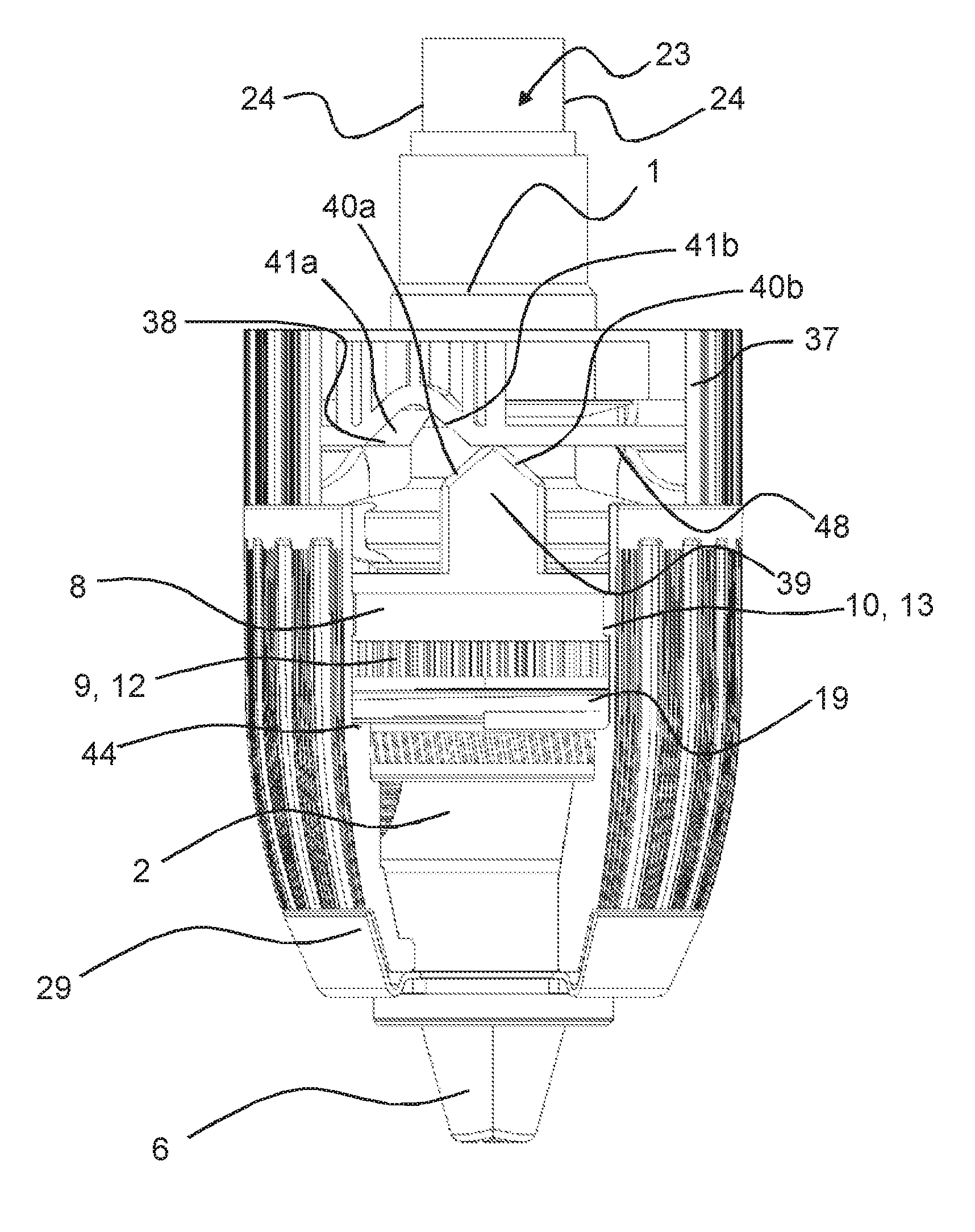

A drilling chuck for operation on an impact drilling spindle, which can be subjected to tangential loading, with a chuck body, which is connected or connectable to the impact drilling spindle in which jaw guides are formed, which are arranged inclined to the chuck axis, in which clamping jaws are guided which can be adjusted by means of a threaded ring, with a clamping sleeve, which is coupled in a torque-transmitting manner to the threaded ring, and with a locking device, which is adjustable between a release configuration which enables a relative rotation of the threaded ring with respect to the chuck body, and a locking configuration which obstructs or prevents this relative rotation. The locking device is formed from a locking sleeve, which is essentially rotationally fixed but axially displaceable with respect to the chuck body, which locking sleeve comprises at least one locking member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B23B Class
- 646 Applications Filed
- 508 Patents Issued To-Date
- 78.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23B Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 25, 2030 |
