MEDICAL DEVICE WITH A TWISTING BUTTON GIVING THE IMPRESSION TO BE PART OF A DISPLAY WINDOW
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 30, 2017
app pub date -
May 25, 2016
filing date -
May 25, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

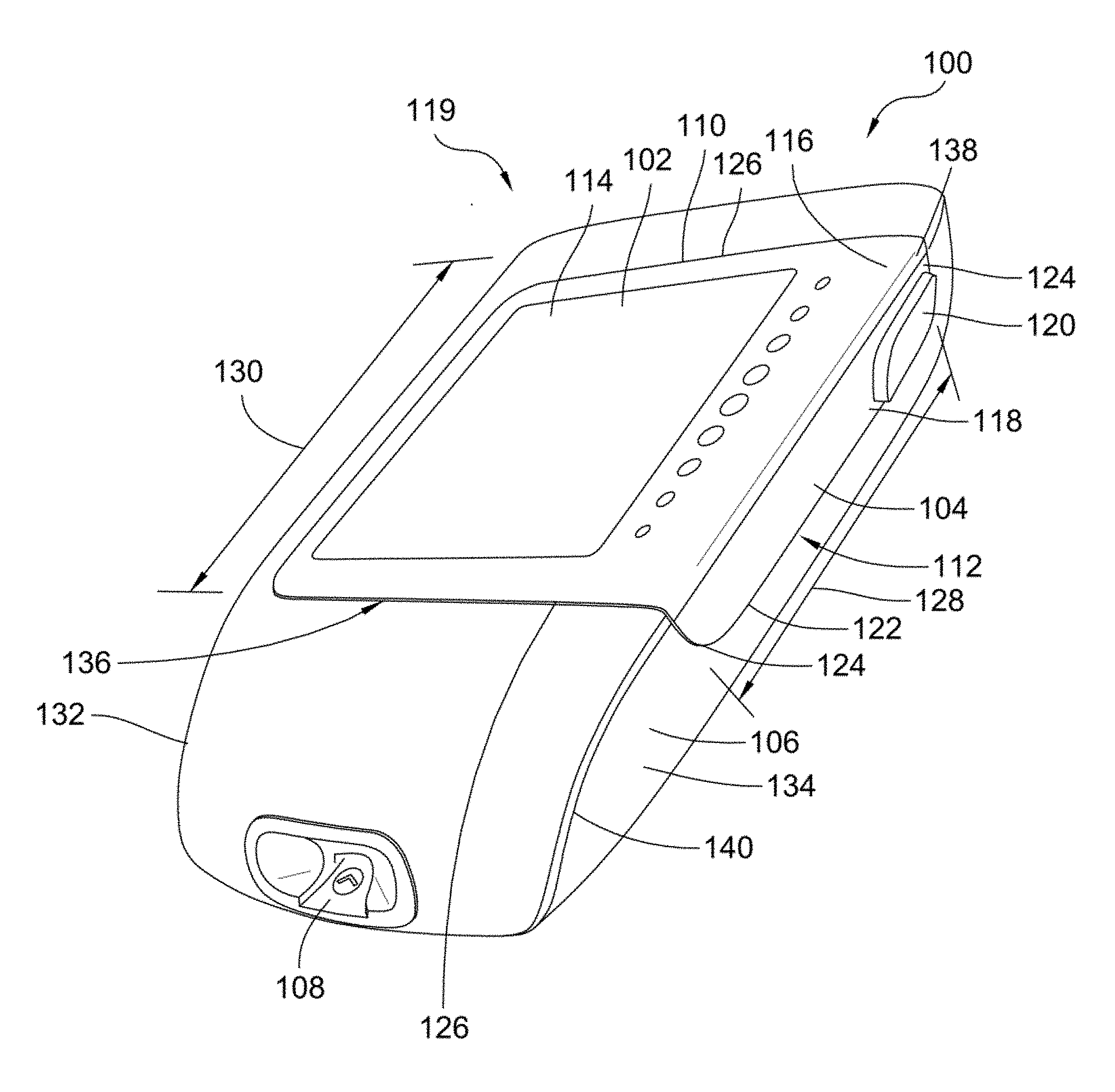

A medical device includes a housing that has a front face and a side face. The housing defines a window cavity on the front face and a button cavity in the side face. A display is disposed in the housing. The display is aligned in the housing for viewing through the window cavity. A window covers the display in the window cavity, and the display is at least partially visible through the window. The window extends along the front face to the button cavity in the side face. A button element is received in the button cavity. The button element and the window are separate components. The button element has opposing end edges that align with the end edges of the window where the button element and window meet to provide an impression that the window and the button element are integral with one another.
First Claim
Other Claims data not available
