PLASTIC LAYER FOR A SMART CARD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 14, 2017
filing date -
Feb 18, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

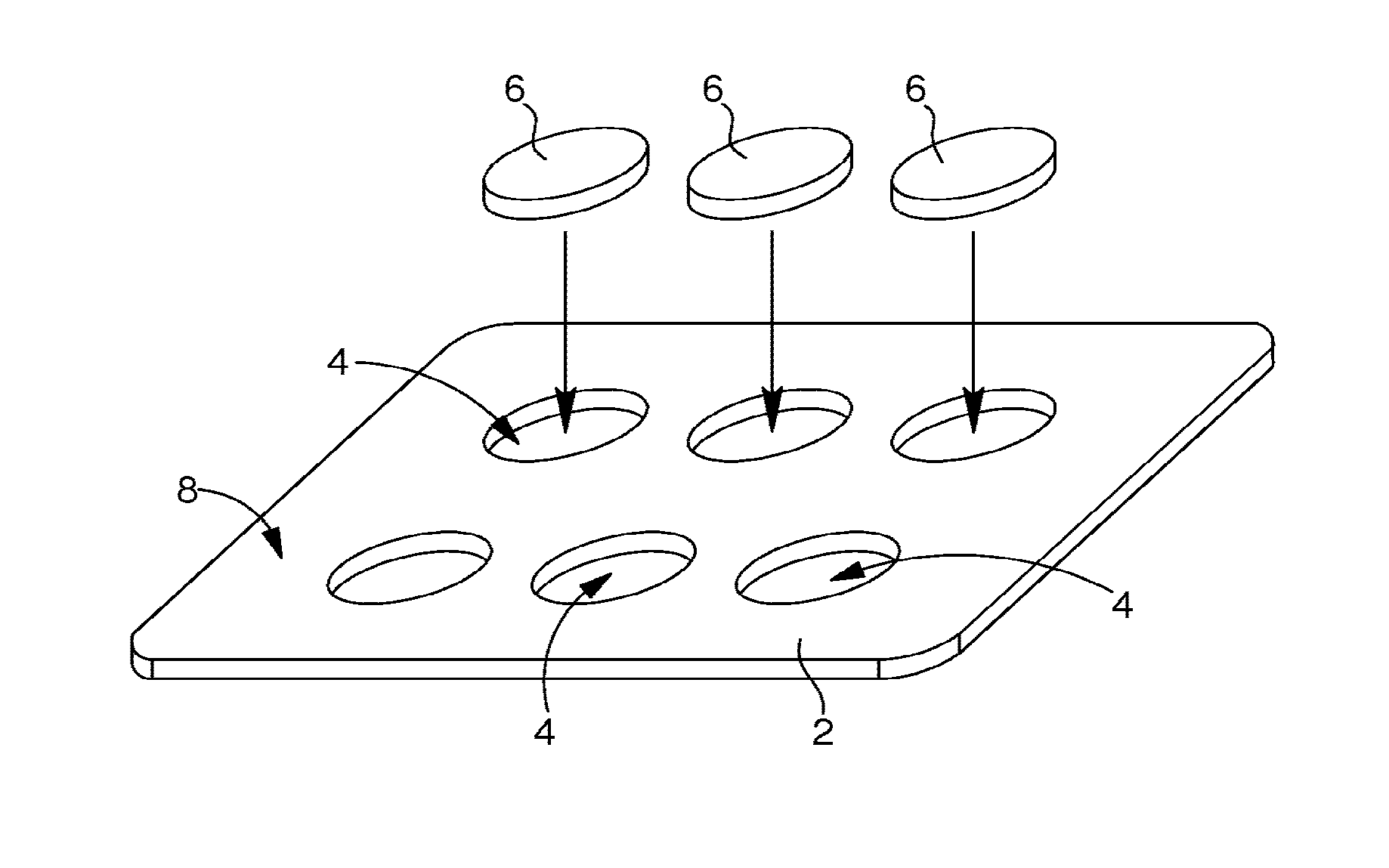

A plastic sheet for manufacturing of a plurality of smart cards which respectively include a plurality of electronic units, includes a first sheet formed of a first material having a first hardness or a first Vicat softening temperature, the first sheet including a plurality of apertures and/or cavities. The plastic sheet includes a second material having, when the first material has the first hardness, a second hardness lower than the first hardness, and when the first material has the first Vicat softening temperature, a second Vicat softening temperature lower than the first Vicat softening temperature, the second material being located inside the apertures and/or cavities in the first sheet. The apertures and/or cavities with the second material located inside the apertures and/or cavities are configured to respectively receive said electronic units via an at least partial penetration from the electronic units into the second material.
First Claim
Other Claims data not available
