Measuring apparatus and support mechanism of columnar work piece
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
Nov 30, 2017
app pub date -
May 9, 2017
filing date -
May 24, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

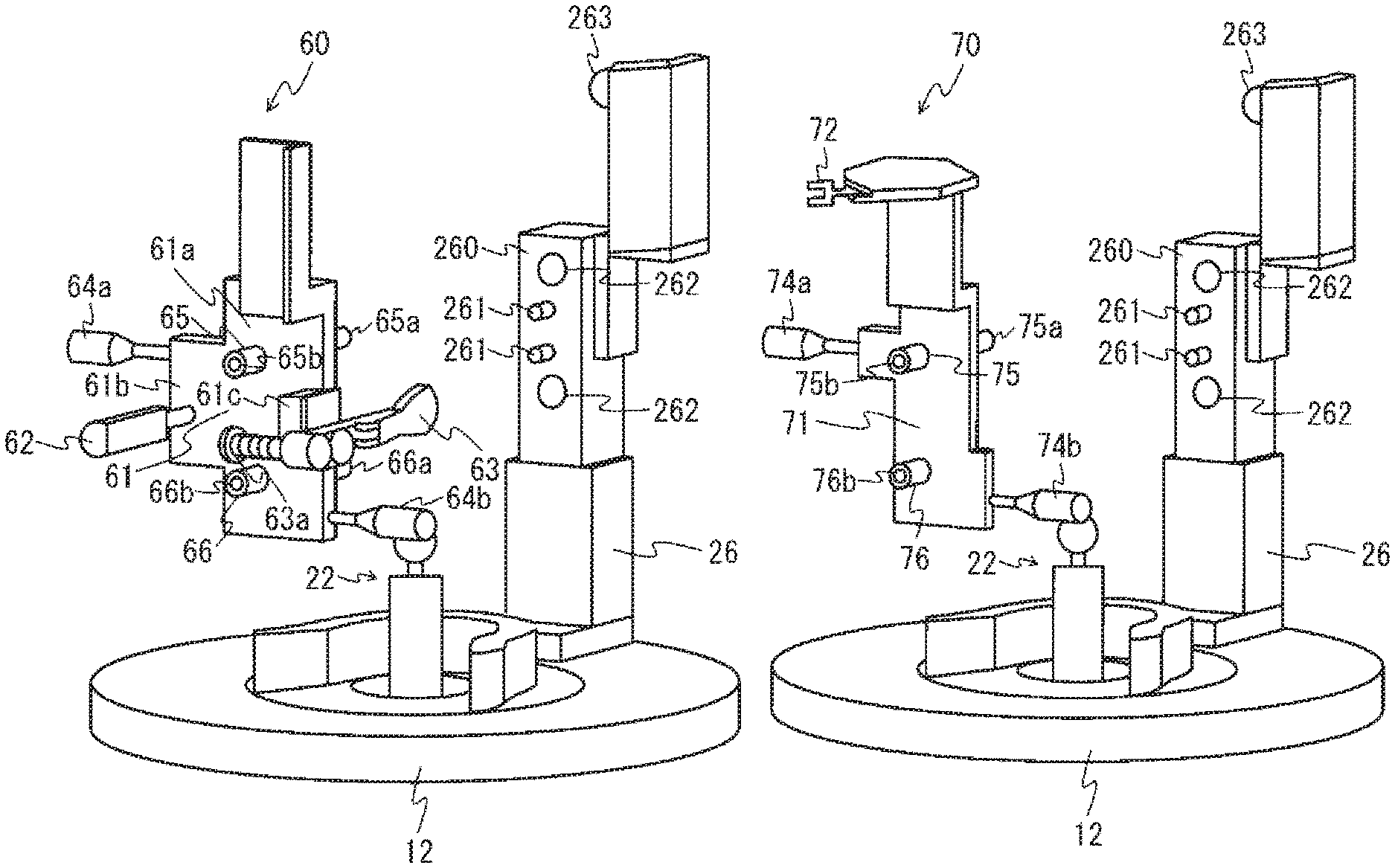

Measuring apparatus includes an upper support supporting a first end of a columnar work piece in an axis direction, a lower support supporting a second end of the work piece in the axis direction, a probe measuring the work piece supported by the upper support and lower support, a rotary table coupled to the lower support and capable of rotating centered in the axis direction, and a post provided to the rotary table and mounting a first position determiner and a second position determiner so as to be switchable, the first and second position determiner determining a position of the work piece with respect to the rotary table. When a first columnar work piece as the work piece is supported by the upper support and lower support, the first position determiner is mounted to the post to determine a position by contacting the first work piece.
