Device for aligning and connecting a hood to a housing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 28, 2020
Grant Date -
Nov 30, 2017
app pub date -
May 26, 2017
filing date -
May 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

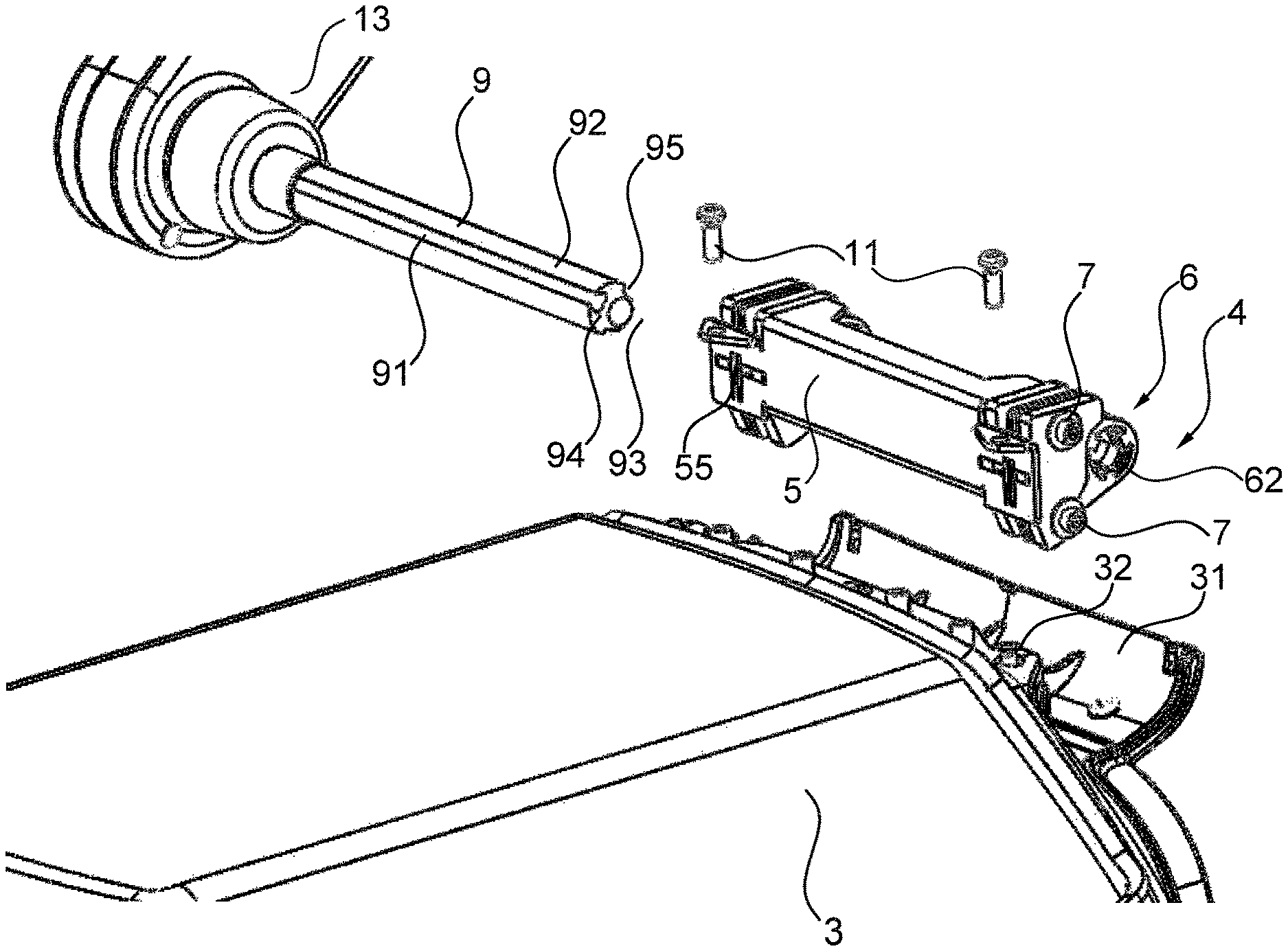

A device (4) aligns and connects a housing hood (3) to a housing (2). The device (4) has a first connecting piece (5) and a second connecting piece (6). The first connecting piece (5) has a clamp bearing element (51) and the second connecting piece (6) has a lamella element (61). The lamella element (61) is arranged movably along the clamp bearing element (51). The device (4) has a clamping element (7) for clearance-free clamping the lamella element (61) with the clamp bearing element (51). An alignment of the hood (3) on a housing (2) can be carried out simply and rapidly and requires only weak clamping forces.
