IMAGE DISPLAY DEVICE AND IMAGE DISPLAY METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 19, 2014
filing date -
Dec 19, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

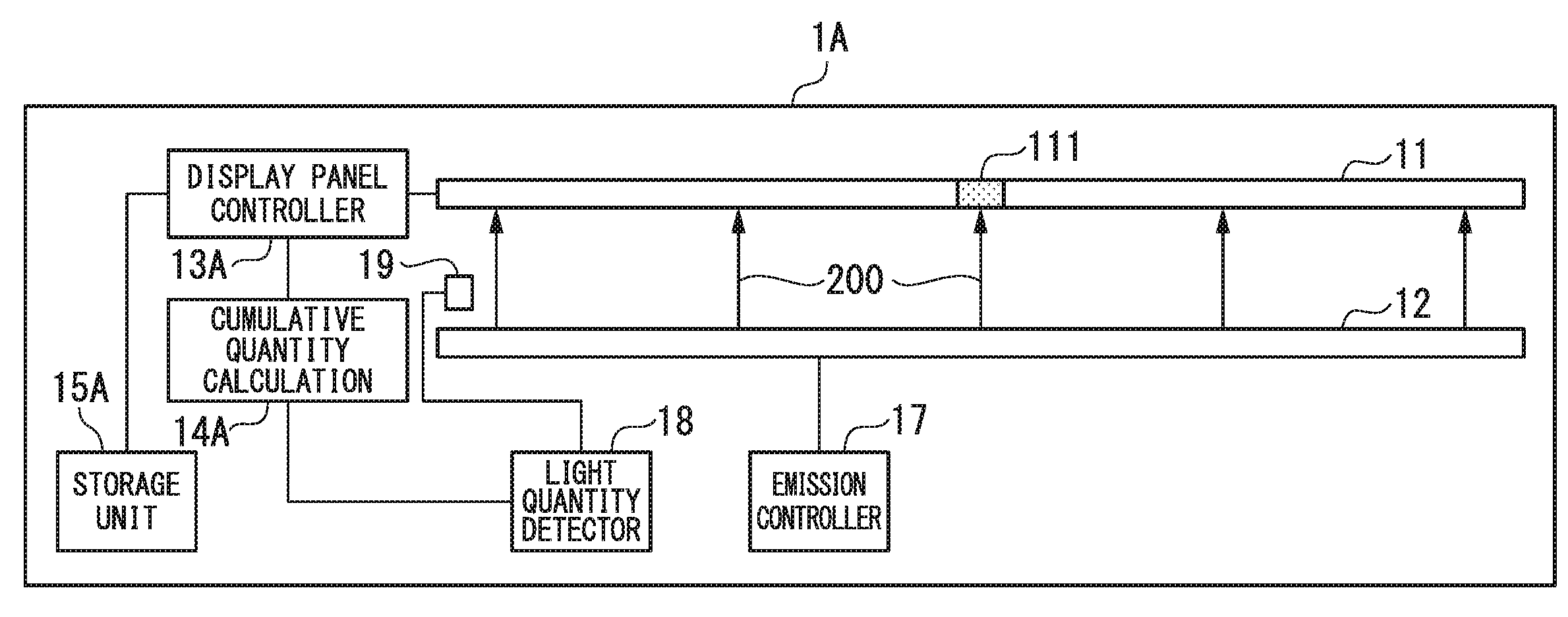

The energy of light irradiated by a backlight causes stress on TFTs for controlling transmissivity for each pixel on a display panel so as to degrade TFTs. The present invention addresses the problem concerning disturbance in transmissivity control based on image information and incapacity of displaying images with desired luminance. The present invention includes a backlight, a transmission-type display panel disposed on the front face of the backlight, a cumulative quantity calculation part configured to calculate a cumulative quantity representing either the cumulated electric energy cumulating power supplied to the backlight or the cumulated light quantity of the backlight, and a display panel controller configured to change a driving condition for the display panel depending on the cumulative quantity.
First Claim
Other Claims data not available
