Method to increase positioning accuracy of global navigation satellite systems by integration of correction service with a mobile communication network
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 17, 2020
Grant Date -
Nov 23, 2017
app pub date -
May 17, 2017
filing date -
May 19, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

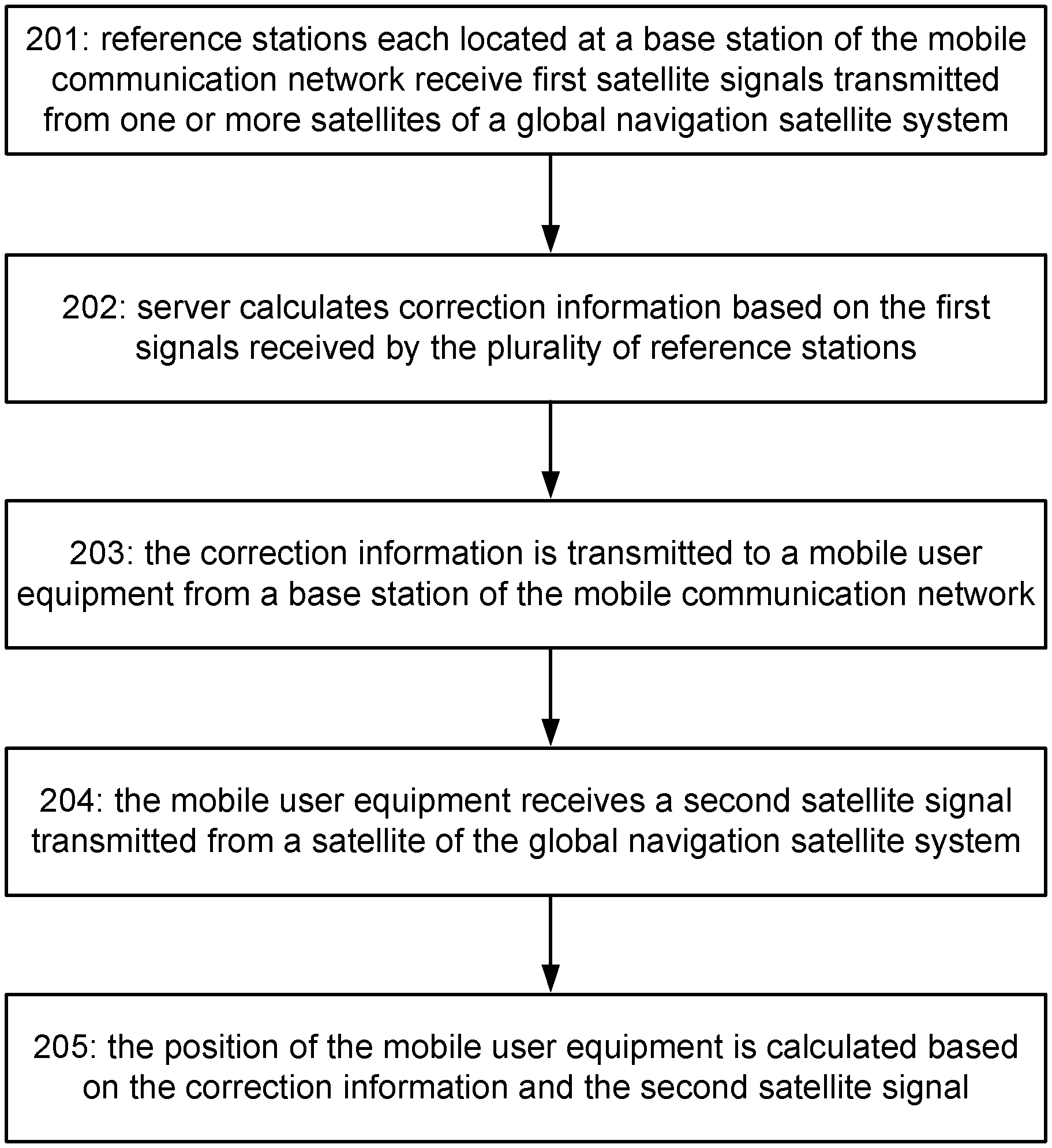

A method for improving positioning accuracy of global navigation satellite systems includes: in a first step, a reference station located at a base station of a mobile communication network receives at least a first satellite signal transmitted from a global navigation satellite system; in a second step, subsequent to the first step, a server of the mobile communication network calculates correction information based on the first satellite signal received by the reference station; in a third step, subsequent to the second step, the correction information is transmitted to a mobile user equipment entity from a base station of the mobile communication network; in a fourth step, the mobile user equipment entity receives a second satellite signal transmitted from the global navigation satellite system; and in a fifth step, subsequent to the third step, the position of the mobile user equipment entity is calculated based on the correction information and the second satellite signal.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G01S Class
- 5231 Applications Filed
- 3924 Patents Issued To-Date
- 75.02 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G01S Class
- 31.82 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 17, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 17, 2032 |
