IGNITION UNIT, IGNITION SYSTEM, AND INTERNAL COMBUSTION ENGINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 24, 2015
filing date -
Nov 24, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

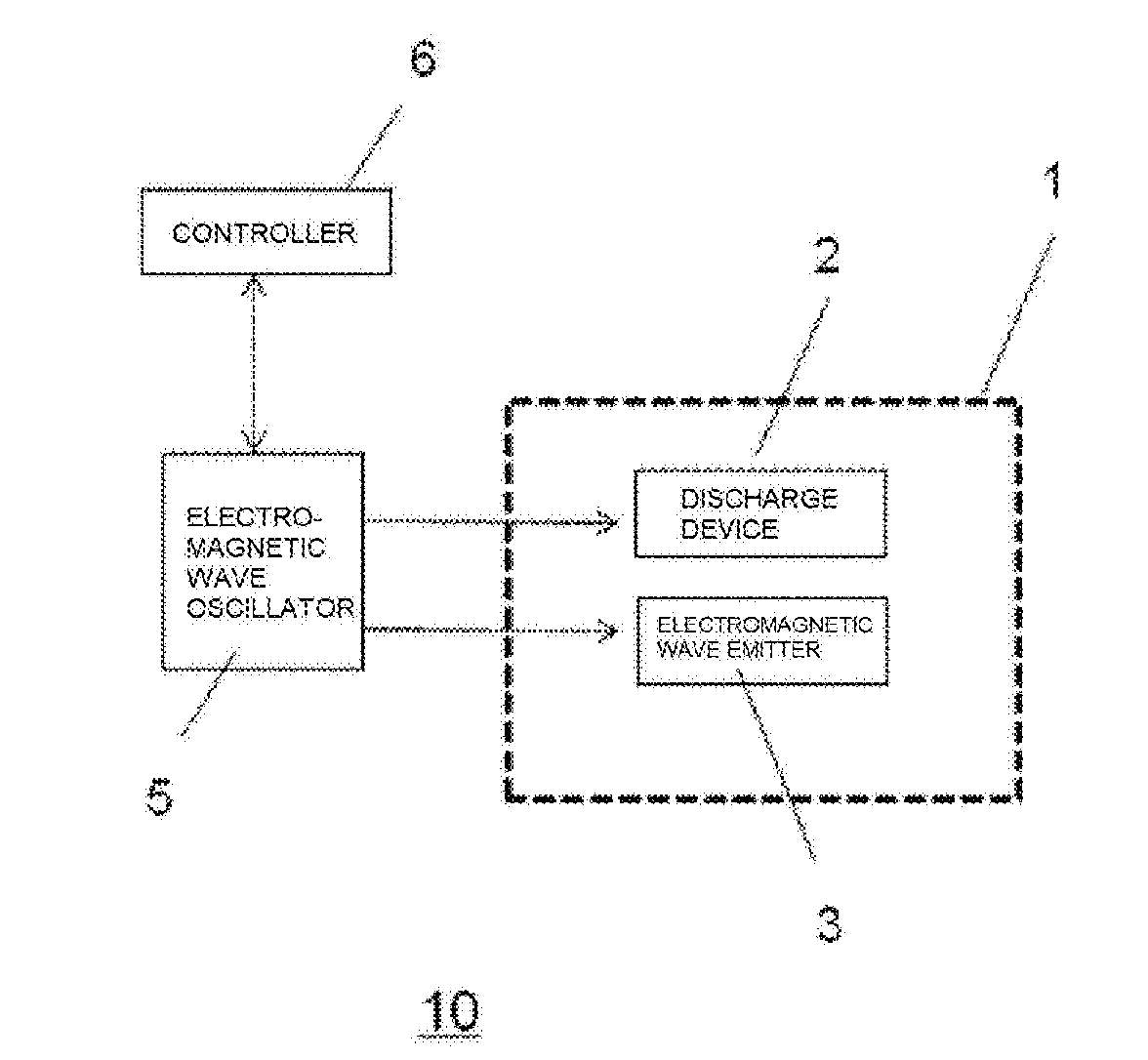

An ignition unit improves an air-fuel-ratio, i.e., good mileage and lean burn without changing a gasoline engine structure significantly. The ignition unit comprises a discharge device including a booster and a discharger provided at an output side of the booster, the booster having a resonance structure configured to boost the electromagnetic wave inputted from the electromagnetic wave oscillator so as to cause a discharge from the discharger, and an electromagnetic wave emitter electrically connected to the electromagnetic wave oscillator and configured to emit the electromagnetic wave inputted from the electromagnetic wave oscillator. Moreover, the ignition unit further includes a housing part including a first hole into which the discharge device is inserted and a second hole into which the electromagnetic wave emitter is inserted such that the housing part houses therein both the discharge device and the electromagnetic wave emitter, and the housing part can be inserted into a single hole of a cylinder head of an internal combustion engine.
First Claim
Other Claims data not available
