Integrated emergency fuel door release and grocery bag hook
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
Nov 16, 2017
app pub date -
May 10, 2016
filing date -
May 10, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

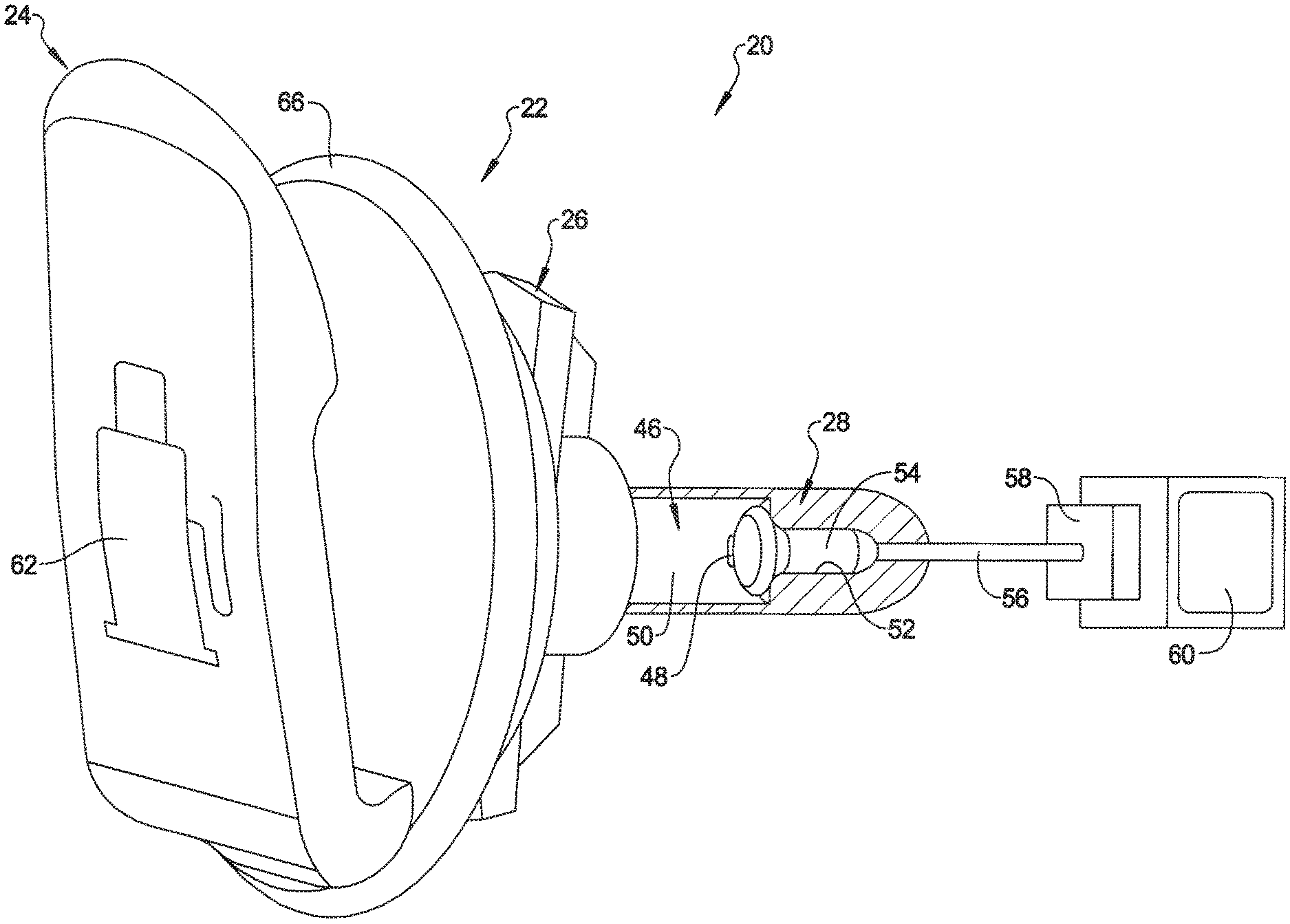

An integrated grocery bag hook and fuel door release cable coupling member extends through a keyway opening of an interior trim panel. When the integrated member is received in the opening, the grocery bag hook portion is positioned on the front side of the trim panel, and the fuel door release cable coupling is positioned on the back side of the trim panel. When the integrated member is received in the opening in an unlocked orientation, the key portion is oriented in alignment with the keyway opening to permit the key portion to pass through the keyway opening. When the integrated member is received in the keyway opening in a locked orientation, the integrated member is oriented with a locking detent engaging and retaining the integrated member in the locked orientation in which the key portion is prevented from passing through the keyway opening.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- B60K Class
- 2914 Applications Filed
- 2276 Patents Issued To-Date
- 78.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60K Class
- 38.23 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2032 |
