Method and apparatus for applying vibration and machining an object
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 2, 2020
Grant Date -
Nov 9, 2017
app pub date -
Nov 26, 2014
filing date -
Nov 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

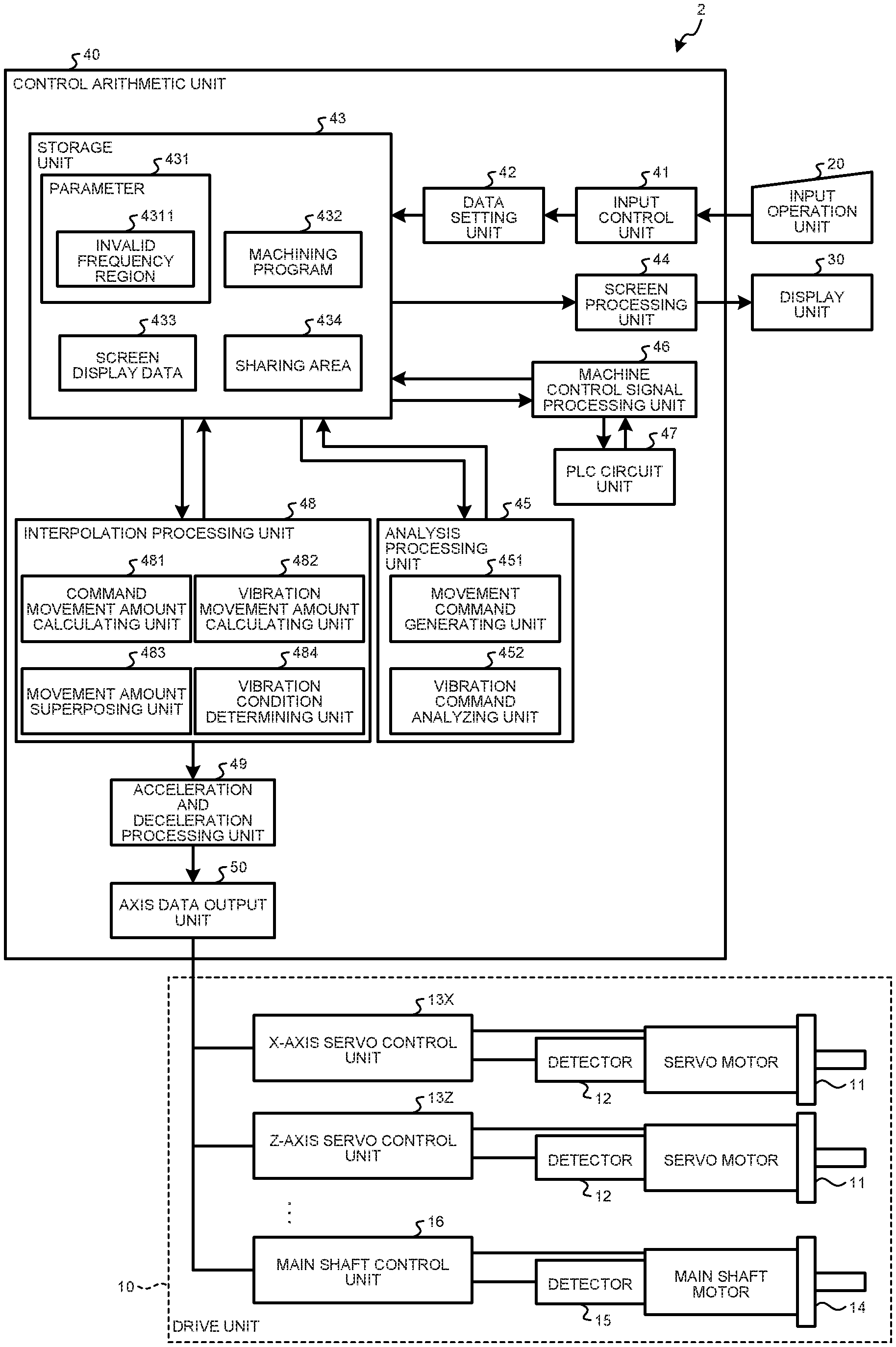

A numerical control device is for machining a machining object by moving a tool and the machining object relative to each other along a movement path while applying vibration, by use of a drive axis provided for the tool or the machining object. The device includes a storage unit that holds an invalid frequency region, and a vibration condition determining unit to determine a frequency for the vibration, based on a rotational speed of a main shaft for rotating the machining object, a number of vibrations of the vibration in each one rotation of the main shaft, and the invalid frequency region.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2014 Application Filing Year
- B23Q Class
- 565 Applications Filed
- 450 Patents Issued To-Date
- 79.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23Q Class
- 58.38 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 2, 2031 |
