Base plate and rail fastening point
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2020
Grant Date -
Nov 9, 2017
app pub date -
Dec 2, 2014
filing date -
Dec 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance

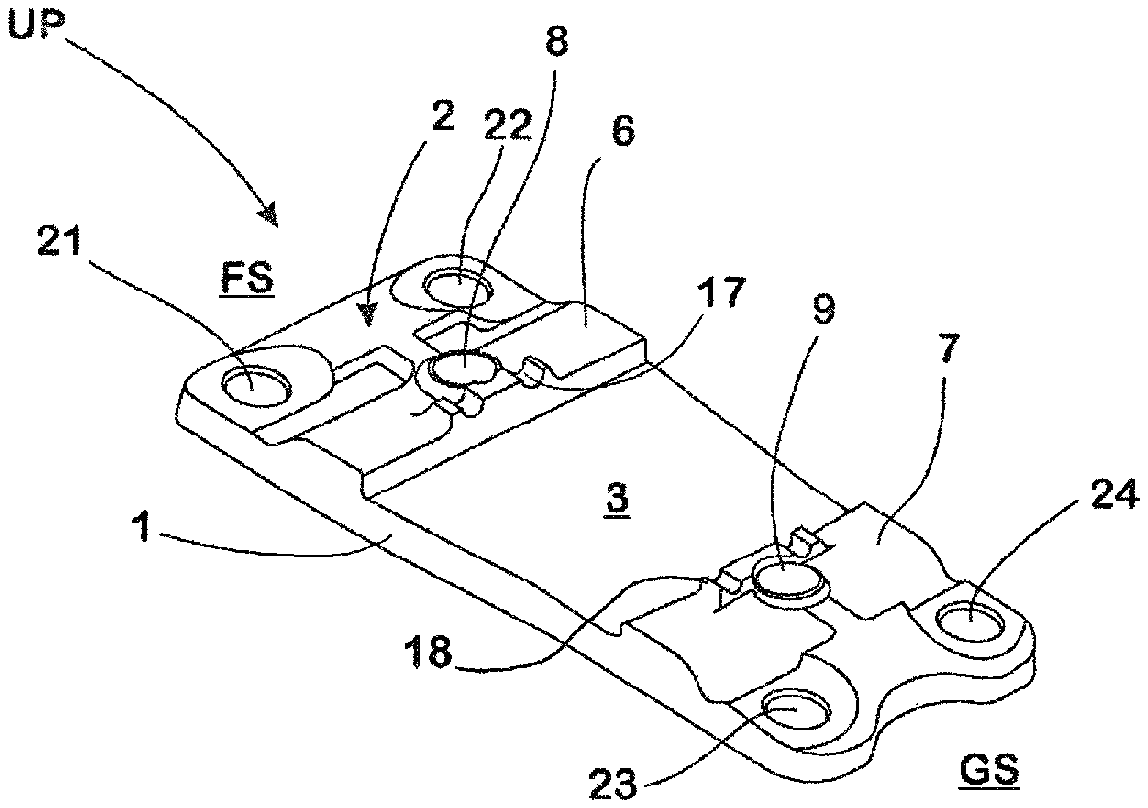

Abstract
The present invention relates to a base plate for a rail fastening point, in which a rail for a rail vehicle is fastened on a substrate. The base plate includes a main body with a rib structure, which from the underside assigned to the substrate is formed into the main body of the base plate and is formed by ribs and by recesses which surround the ribs and are open to the underside, and to a rail fastening point. The base plate for a rail fastening point can be manufactured in a simple, cost-effective manner and makes it possible to avoid by simple means pressing into a soft substrate. This is achieved in that the base plate additionally includes a cover fastened to the base plate after the manufacture of the main body, which covers the rib structure on the underside of the main body at least in sections.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- E01B Class
- 84 Applications Filed
- 77 Patents Issued To-Date
- 91.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E01B Class
- 59.55 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 14, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2031 |
