INTERCHANGEABLE DIE, JOINING TOOL AND JOINING METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 21, 2017
filing date -
Jan 22, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

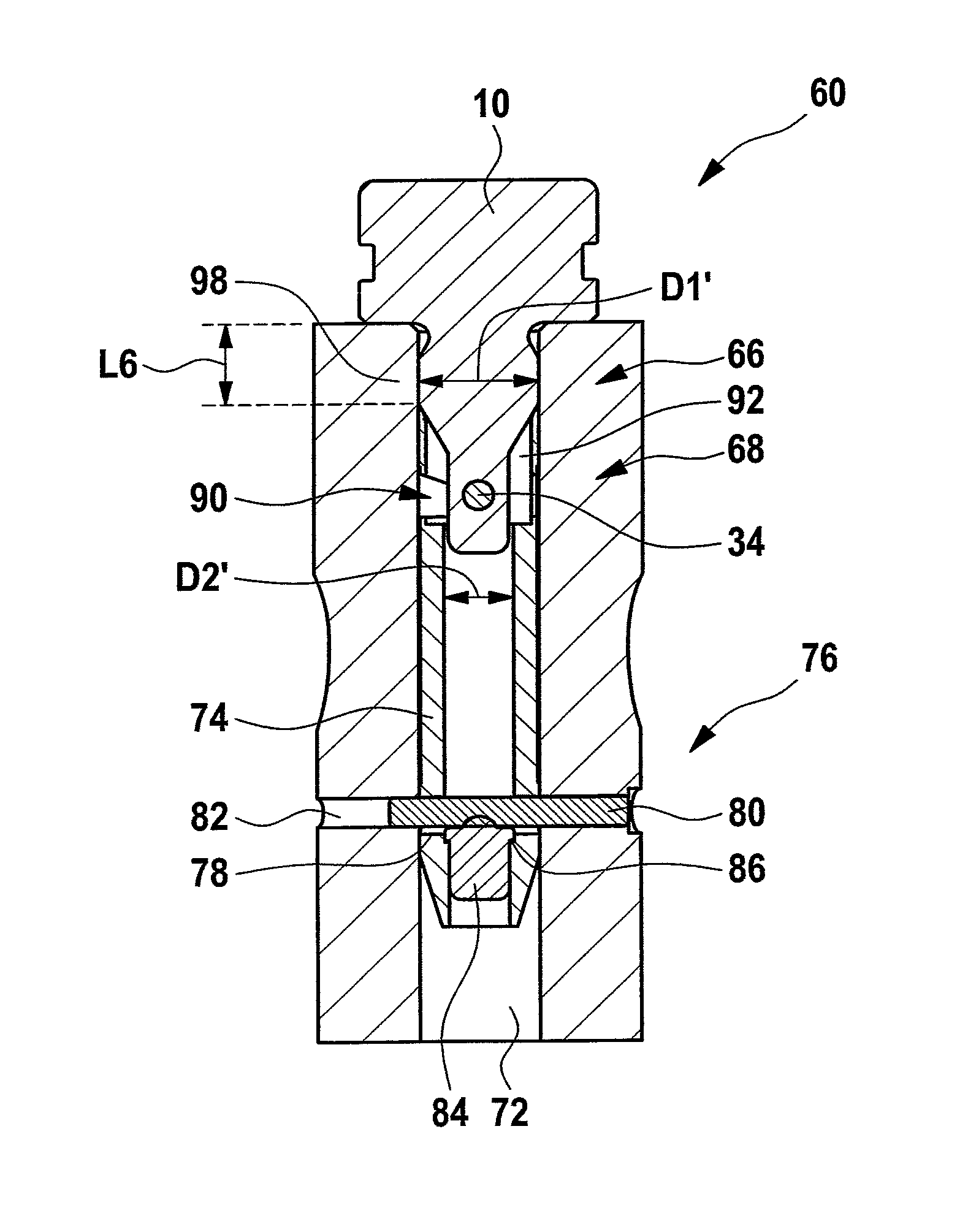

An interchangeable die comprises a die head, on which a die feature is formed, and a die shank extending in an axial direction from the die head. The die shank includes a first axial shank section, which is adjacent to the die head, and a second axial shank section, which is arranged on the opposite axial side of the first axial shank section from the die head. The first axial shank section has a first diameter and the second axial shank section has a second diameter smaller than the first diameter. The die shank is introducible into a shank receptacle of a die receiving section of a joining tool. A fastening contour for fastening the interchangeable die to the joining tool is formed on the interchangeable die. The fastening contour is configured such that a plug-and-turn connection is establishable between the interchangeable die and the joining tool.
