ASSEMBLY INSTRUCTION SYSTEM AND ASSEMBLY INSTRUCTION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 2, 2017
app pub date -
Jul 11, 2016
filing date -
Apr 28, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

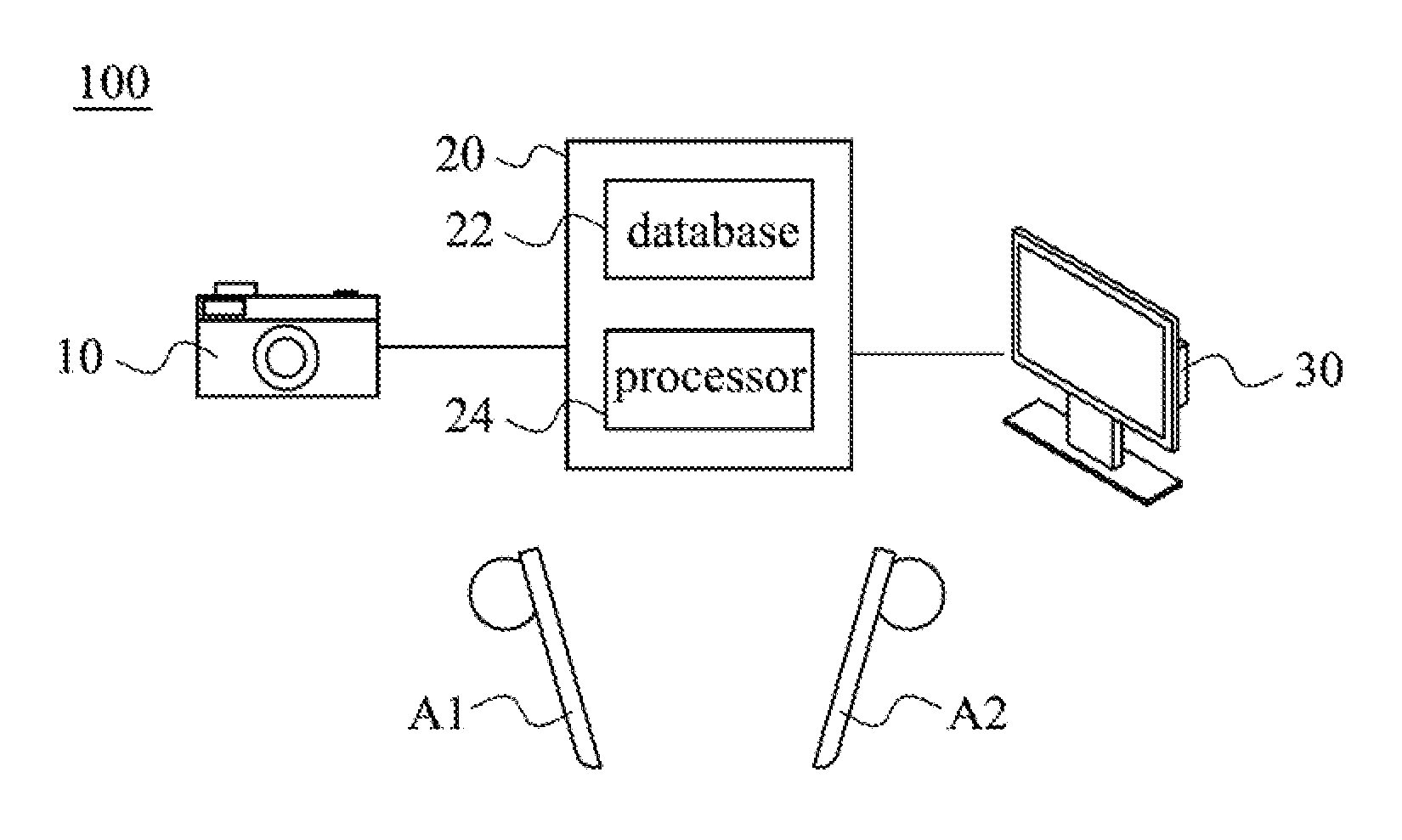

Assembly instruction system includes at least one depth camera, database, processor, and display. Depth camera captures first object image. Database stores multiple known object images and assembly tree. Processor compares first object image with known object images separately to recognize first object corresponding to first object image and a three-dimensional position and orientation of first object, and obtains second object (or some other multiple objects) corresponding to first object according to captured image and assembly tree. Processor generates at least one virtual arrow according to three-dimensional position and orientation. Display displays augmented reality image having at least one virtual arrow added on first object image and second object (or some other multiple objects) image(s). Virtual arrow indicates a moving direction for assembling first object and second object (or some other multiple objects). The above process is repeatedly performed until the whole device is assembled.
